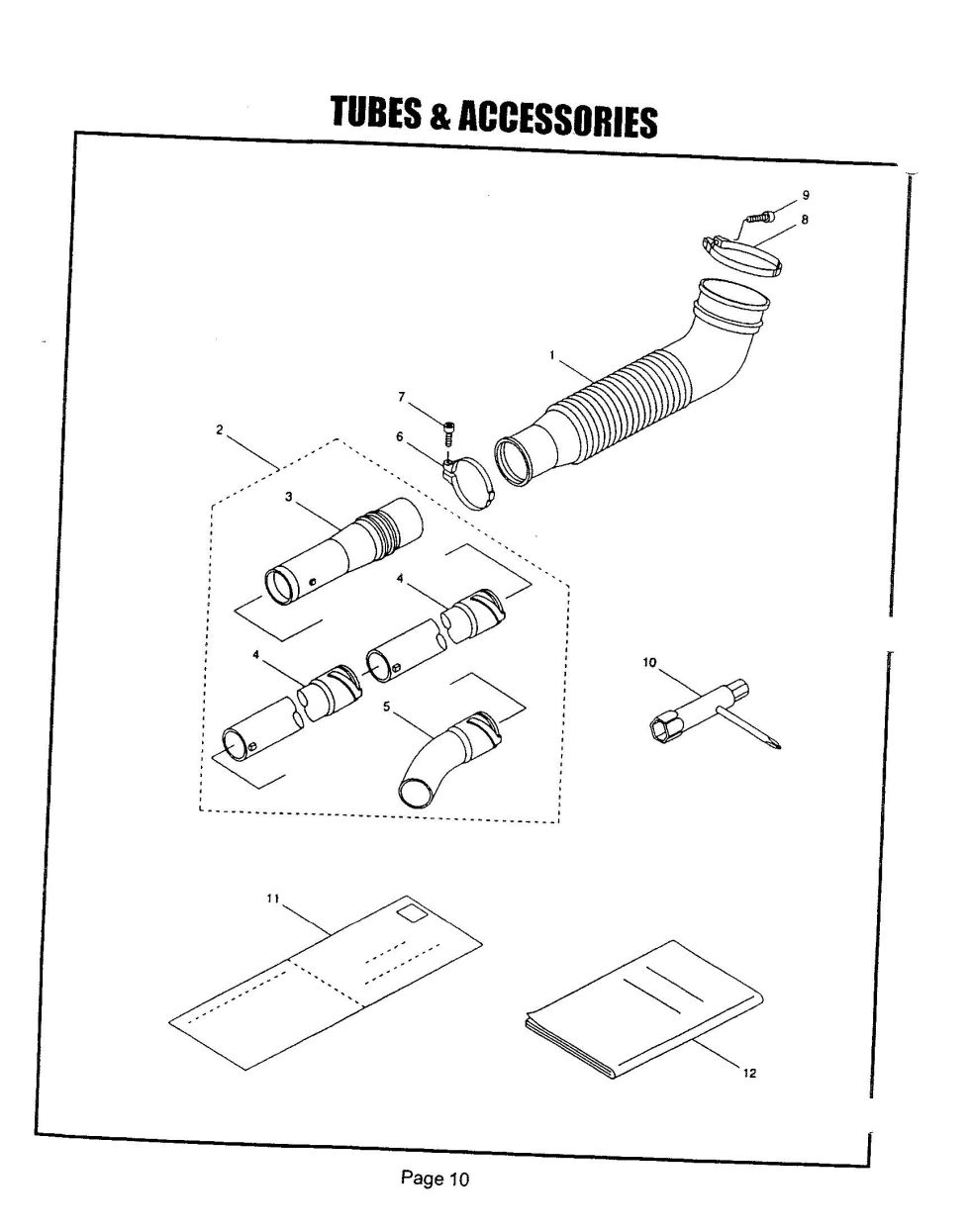

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL4500HA, BL4500SP, BL5400HA AND BL5400SP. You have selected the Tubes and Accessories diagram for the Maruyama BL4500HA, BL4500SP, BL5400HA AND BL5400SP Blowers. Below you will find an interactive part diagram for the BL4500HA, BL4500SP, BL5400HA AND BL5400SP Tubes and Accessories. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL4500HA, BL4500SP, BL5400HA AND BL5400SP parts not shown in this diagram you may select from one of the other BL4500HA, BL4500SP, BL5400HA AND BL5400SP part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 119186 | 119186 - FLEXIBLE PIPE |
$34.99
|
|
| 3 | 106721 |
106721 - NLA SWIVEL PIPE (obsolete) use part #121242 |
$28.99
|
|
| 4 | 106762 | 106762 - USE: 121243 |
$30.99
|
|
| 5 | 106725 |
106725 - USE: 121244 (obsolete) use part #121244 |
$21.99
|
|
| 6 | 119525 | 119525 - HOSE BAND |
$5.99
|
|
| 7 | 088831 | 088831 - SCREW |
$2.99
|
|
| 8 | 119523 | 119523 - HOSE BAND |
$5.99
|
|
| 9 | 081417 | 081417 - SCREW |
$2.99
|
|
| 10 | 210418 | 210418 - BOX WRENCH/DRIVER |
$16.99
|
|
| 12 | 120069 | 120069 - USE: 120698 |
$16.99
|
