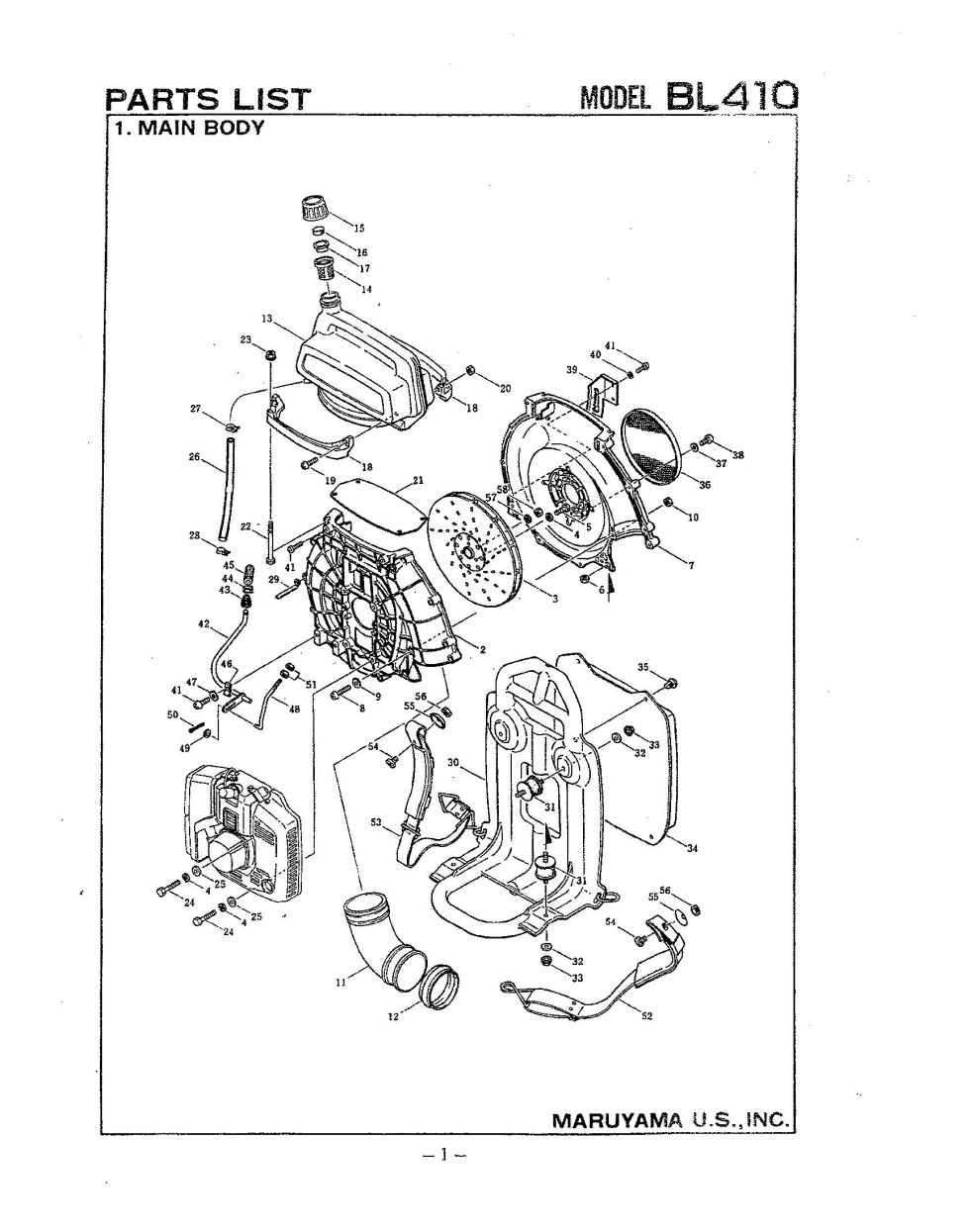

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL410. You have selected the Main Body diagram for the Maruyama BL410 Blowers. Below you will find an interactive part diagram for the BL410 Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL410 parts not shown in this diagram you may select from one of the other BL410 part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.

Position number SKU Product title Price
2 101821 101821 - NLA FAN CASE (E)
$80.99
3 100809 100809 - NLA FAN
$90.99
4 012502 012502 - SPRING WASHER
$2.99
5 082098 082098 - BOLT M6X16
$2.99
6 100234 100234 - NUT
$2.99
7 101822 101822 - NLA FAN CASE (S)
$80.99
8 081419 081419 - SCREW
$2.99
9 101171 101171 - NLA WASHER
$2.99
10 081028 081028 - NUT
$2.99
12 100808 100808 - RUBBER BRACKET
$12.99
14 022371 022371 - Obsolete - USE PART #106920 No Longer Available
Obsolete.
18 107562 107562 - NLA BRACKET
$31.99
19 081457 081457 - SCREW M6X25
$2.99
20 081031 081031 - NUT M6
$2.99
21 101093 101093 - NLA OIL SEAT PACKING
$10.99
23 104797 104797 - USE: 100420
$2.99
25 012488 012488 - WASHER M6
$2.99
26 101815 101815 - NLA VINYL HOSE
$5.99
27 043832 043832 - HOSE BAND #17
$2.99
28 103067 103067 - NLA HOSE BAND
$2.99
29 101176 101176 - CLIP
$2.99
30 101684 101684 - NLA SUPPORT FRAME
$76.99
31 026223 026223 - BUFFER
$17.99
32 019056 019056 - WASHER
$2.99
33 100420 100420 - NLA FLANGE NUT (obsolete)
use part #126756
$2.99
34 101683 101683 - USE: 115102
$24.99
35 100749 100749 - PAD RETAINER
$2.99
36 103084 103084 - NLA SCREEN
$9.99
37 022905 022905 - WASHER
$2.99
38 081413 081413 - SCREW M5X12 ISO
$2.99
39 105761 105761 - NLA DIAL PLATE
$12.99
40 012501 012501 - SPRING WASHER
$2.99
41 081426 081426 - SCREW (M5X15)
$2.99
42 105929 105929 - NLA THROTTLE LEVER
$19.99
43 100726 100726 - RUBBER CAP
$2.99
44 105767 105767 - SNAP
$2.99
45 105766 105766 - NLA KNOB
$2.99
46 101309 101309 - NLA THROTTLE LEVER B
$2.99
47 012487 012487 - WASHER
$2.99
48 100815 100815 - THROTTLE ROD
$13.99
49 012486 012486 - WASHER
$2.99
50 013013 013013 - Obsolete - USE PART #029818 No Longer Available
Obsolete.
51 029795 029795 - NUT
$2.99
52 101613 101613 - KNAPSACK BAND ASSY-R
$32.99
53 101616 101616 - NLA KNAPSACK BAND AS
$27.99
54 020654 020654 - BOLT
$2.99
55 100603 100603 - USE: 127224
$2.99
57 970923 970923 - USE: 12503
$2.99
58 978748 978748 - NUT
$2.99
