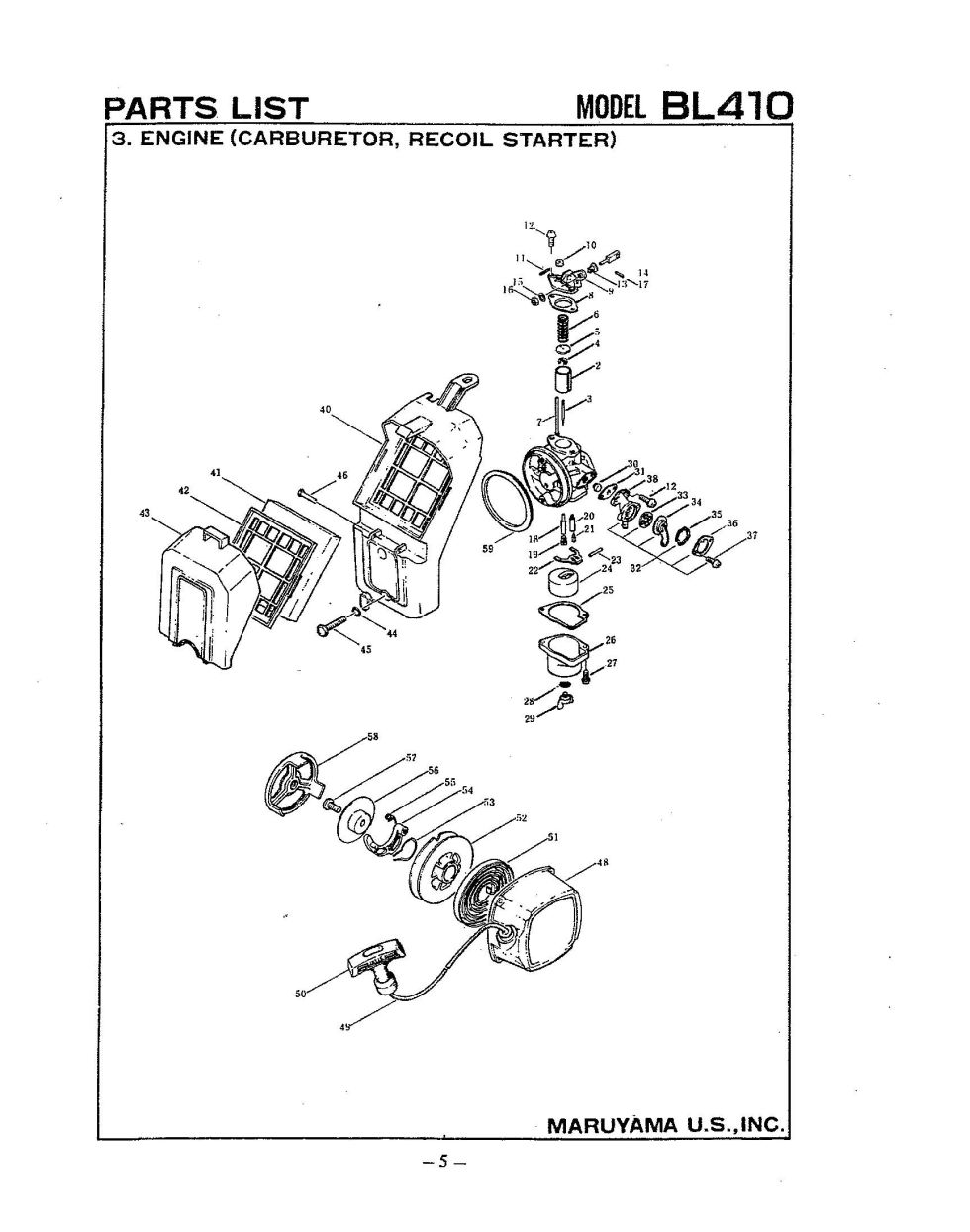

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL410. You have selected the Engine (Carburetor, Recoil Starter) diagram for the Maruyama BL410 Blowers. Below you will find an interactive part diagram for the BL410 Engine (Carburetor, Recoil Starter). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL410 parts not shown in this diagram you may select from one of the other BL410 part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.

Position number SKU Product title Price
2 991132 991132 - NLA PISTON VALVE
$23.99
3 991134 991134 - JET NEEDLE
$17.99
4 978800 978800 - E-RING
$10.99
5 978799 978799 - PLATE
$2.99
6 978798 978798 - NLA SPRING (NO SUPER
$12.99
7 978797 978797 - NLA ROD
$6.99
8 978805 978805 - NLA GASKET (NO SUPER
$9.99
9 978816 978816 - COVER ASSY
$42.99
10 978795 978795 - RING
$10.99
11 978796 978796 - SPLIT PIN
$2.99
12 978811 978811 - NLA SCREW
$7.99
13 978815 978815 - NLA GUIDE HOLDER
$12.99
14 978818 978818 - NLA PIN
$25.99
15 978814 978814 - WASHER
$2.99
16 978813 978813 - NUT
$2.99
17 978817 978817 - NLA SPLIT PIN
$2.99
18 991136 991136 - NEEDLE JET
$21.99
19 991138 991138 - MAIN JET
$22.99
20 978792 978792 - PILOT JET
$19.99
21 991139 991139 - NLA NEEDLE ASSY
$32.99
22 978789 978789 - FLOAT ARM
$12.99
23 978790 978790 - NLA FLOAT PIN
$2.99
24 978785 978785 - NLA FLOAT
$22.99
25 978791 978791 - NLA GASKET
$12.99
26 978784 978784 - FLOAT CHAMBER BODY
$36.99
28 978787 978787 - O-RING
$2.99
29 978786 978786 - GUIDE SCREW
$9.99
30 978806 978806 - NLA FILTER
$8.99
31 978807 978807 - NLA PACKING
$9.99
33 978809 978809 - GASKET
$9.99
34 978804 978804 - LEVER
$18.99
35 978810 978810 - NLA SPRING SEAT
$8.99
36 978808 978808 - PLATE
$23.99
37 978812 978812 - SCREW
$8.99
38 978803 978803 - NLA COCK BODY
$28.99
40 991142 991142 - NLA AIR CLEANER CASE
$30.99
41 991143 991143 - NLA ELEMENT
$30.99
42 991144 991144 - NLA ELEMENT GRID
$13.99
43 991145 991145 - NLA CAP
$23.99
44 978829 978829 - NLA O-RING
$7.99
45 978834 978834 - NLA SCREW
$2.99
46 991141 991141 - NLA RIVET
$2.99
48 978821 978821 - NLA STARTER CASE
$34.99
49 978826 978826 - NLA STARTER ROPE
$17.99
50 978827 978827 - STARTER KNOB
$18.99
51 978824 978824 - NLA SPIRAL SPRING
$22.99
52 978822 978822 - NLA REEL
$86.99
53 972831 972831 - NLA FRICTION SPRING
$6.99
54 978823 978823 - USE: 591588 No Longer Available
Obsolete.
55 972834 972834 - NLA RETURN SPRING
$15.99
56 978825 978825 - FRICTION PLATE
$17.99
57 977441 977441 - SCREW
$10.99
58 978746 978746 - NLA STARTER PULLEY
$32.99
59 978819 978819 - NLA PACKING
$20.99
