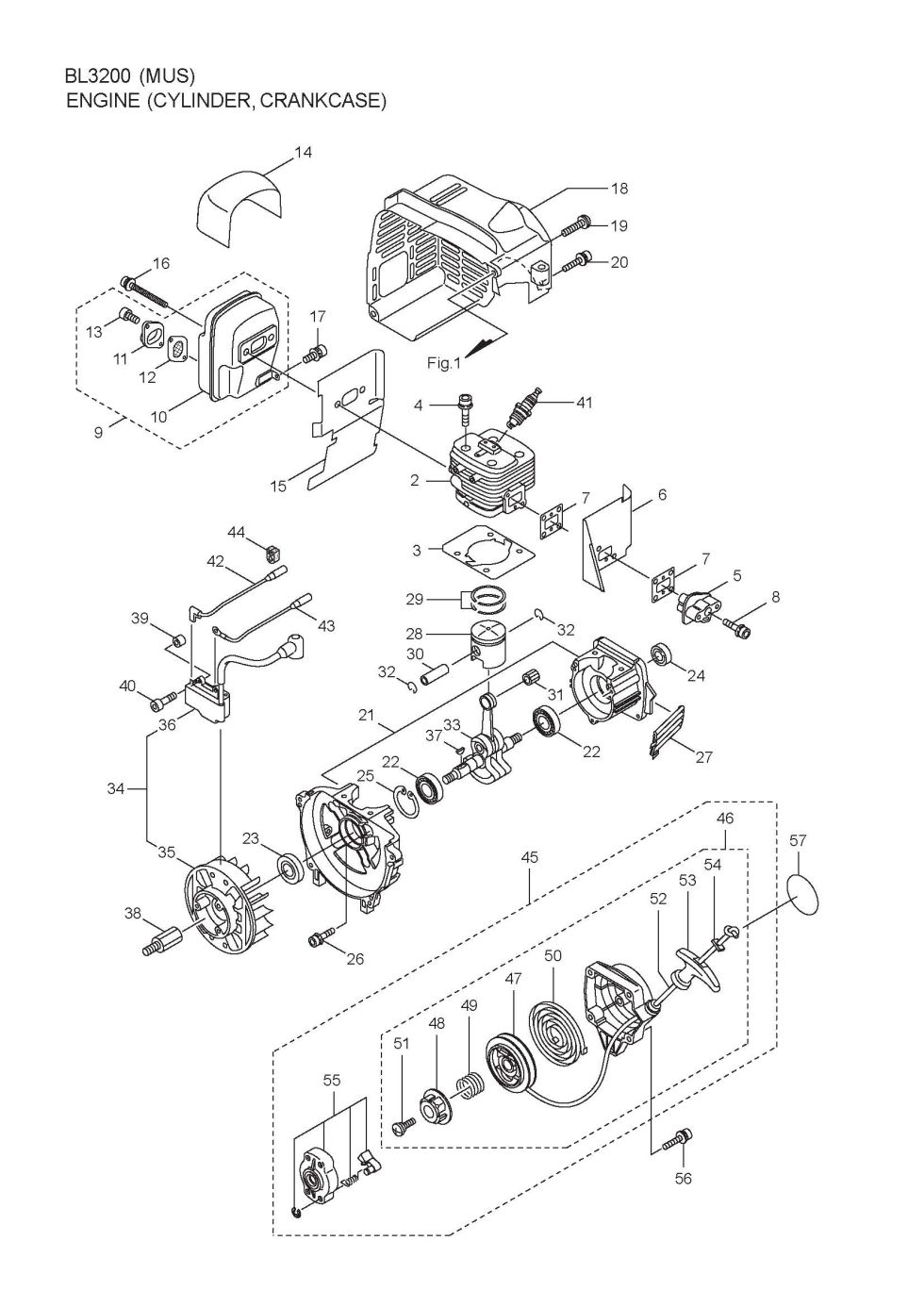

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL3200. You have selected the Engine diagram for the Maruyama BL3200 Blowers. Below you will find an interactive part diagram for the BL3200 Engine. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL3200 parts not shown in this diagram you may select from one of the other BL3200 part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.

Position number SKU Product title Price
2 282400 282400 - CYLINDER
$207.99
3 282537 282537 - GASKET
$15.99
4 261250 261250 - BOLT M5X20
$2.99
5 282579 282579 - INSULATOR
$18.99
6 281590 281590 - AIR DUCT
$2.99
7 261171 261171 - GASKET
$2.99
8 265924 265924 - CAP SCREW 5X25
$2.99
9 282585 282585 - MUFFLER
$50.99
10 282586 282586 - MUFFLER COMP
$30.99
11 281860 281860 - TAIL
$6.99
12 267056 267056 - SPARK ARRESTER
$7.99
13 265107 265107 - BOLT
$2.99
14 268461 268461 - HOLDER
$7.99
15 281589 281589 - MUFFLER GASKET
$10.99
16 266713 266713 - BUTTON BOLT
$5.99
17 261607 261607 - BOLT M5X16
$2.99
18 281537 281537 - ENGINE COVER
$26.99
19 281989 281989 - SCREW
$2.99
20 265724 265724 - BOLT (M4X25)
$2.99
21 268241 268241 - CRANKCASE
$50.99
22 261491 261491 - BEARING
$21.99
23 261492 261492 - OIL SEAL
$2.99
24 261386 261386 - OIL SEAL
$2.99
25 055185 055185 - SNAP RING
$2.99
26 261612 261612 - BOLT
$2.99
27 281442 281442 - SCREEN
$2.99
28 268782 268782 - USE: 283380
$37.99
29 265067 265067 - PISTON RING
$13.99
30 265068 265068 - PISTON PIN
$8.99
31 265225 265225 - NEEDLE BEARING
$23.99
32 261393 261393 - PISTON PIN CLIP
$2.99
33 265141 265141 - CRANKSHAFT/CONNECTIN
$92.99
34 282217 282217 - MAGNET ASSY.
$117.99
35 269808 269808 - USE: 286889
$29.99
36 282010 282010 - IGNITION COIL ASSY
$128.99
37 261076 261076 - WOODRUFF KEY
$2.99
38 281872 281872 - SHAFT
$22.99
39 280381 280381 - SPACER
$2.99
40 261256 261256 - BOLT M4X25
$2.99
41 261200 261200 - SPARK PLUG
$20.99
42 281864 281864 - LEAD
$5.99
43 282087 282087 - LEAD
$2.99
44 281172 281172 - GROMMET
$2.99
45 283039 283039 - RECOIL STARTER ASSY
$28.99
46 283502 283502 - STARTER ASSY
$30.99
47 283504 283504 - REEL
$11.99
48 283505 283505 - CAM PLATE
$5.99
49 283506 283506 - SPRING
$9.99
50 283507 283507 - SPIRAL SPRING
$17.99
51 267213 267213 - SCREW
$2.99
52 283509 283509 - STARTER ROPE
$7.99
53 283510 283510 - STARTER KNOB
$7.99
54 283511 283511 - ROPE STOPPER
$2.99
55 280934 280934 - STARTER PAWL ASSY
$17.99
57 282547 282547 - LABEL
$2.99
