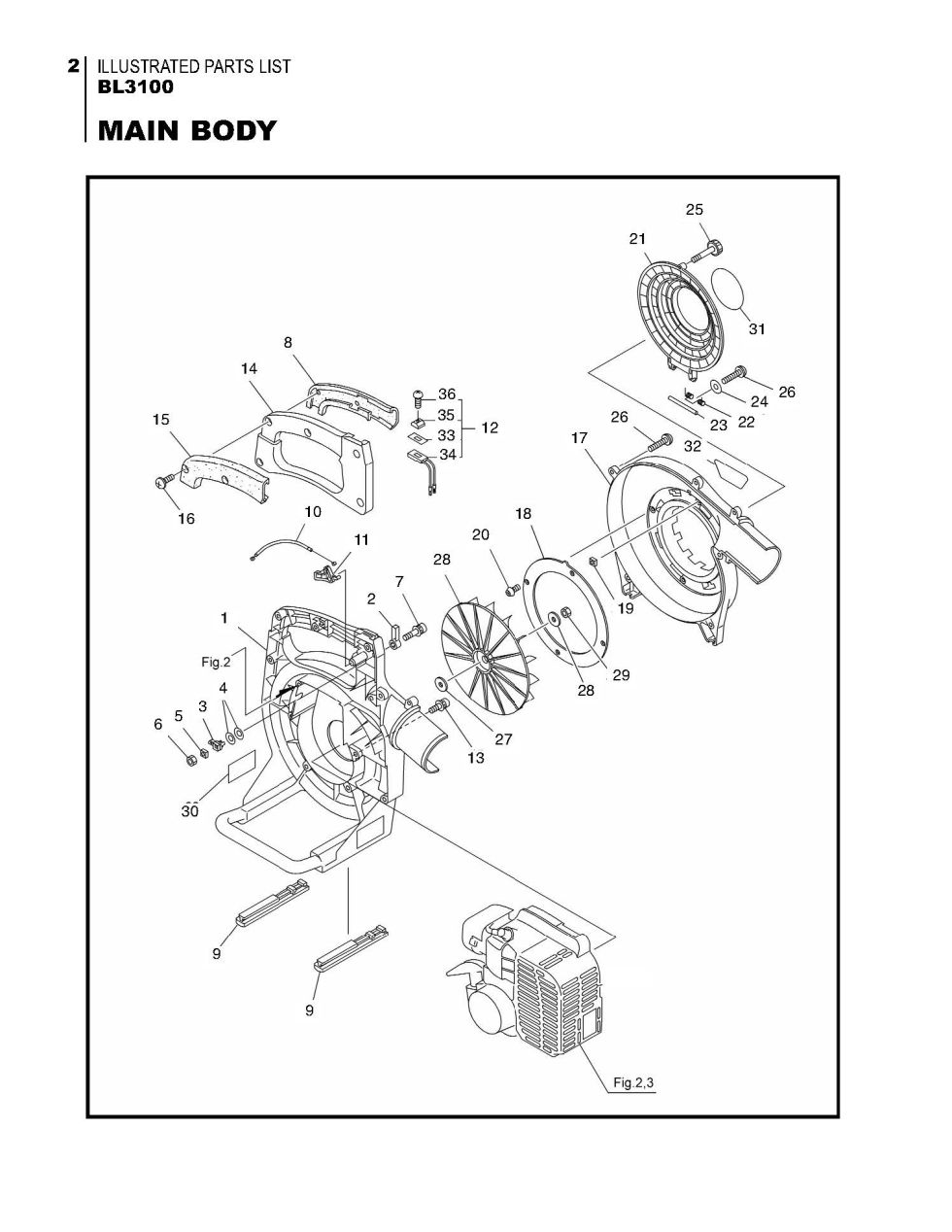

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL3100. You have selected the Main Body diagram for the Maruyama BL3100 Blowers. Below you will find an interactive part diagram for the BL3100 Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL3100 parts not shown in this diagram you may select from one of the other BL3100 part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 281535 | 281535 - HOUSING |
$59.99
|
|
| 2 | 281586 | 281586 - THROTTLE LEVER |
$2.99
|
|
| 3 | 281867 | 281867 - THROTTLE LEVER |
$2.99
|
|
| 4 | 282169 | 282169 - WASHER |
$2.99
|
|
| 5 | 269423 | 269423 - NUT |
$2.99
|
|
| 6 | 081028 | 081028 - NUT |
$2.99
|
|
| 7 | 261246 | 261246 - CAP SCREW M5X25 |
$2.99
|
|
| 8 | 281880 | 281880 - GRIP |
$11.99
|
|
| 9 | 281865 | 281865 - BASE PAD |
$5.99
|
|
| 10 | 281862 | 281862 - THROTTLE CABLE |
$12.99
|
|
| 11 | 281585 | 281585 - THROTTLE TRIGGER |
$2.99
|
|
| 12 | 282170 | 282170 - SWITCH |
$23.99
|
|
| 13 | 261250 | 261250 - BOLT M5X20 |
$2.99
|
|
| 14 | 281538 | 281538 - HANDLE |
$15.99
|
|
| 15 | 281879 | 281879 - GRIP |
$11.99
|
|
| 16 | 281989 | 281989 - SCREW |
$2.99
|
|
| 17 | 281536 | 281536 - FAN COVER |
$40.99
|
|
| 18 | 281869 | 281869 - PLATE |
$15.99
|
|
| 19 | 280008 | 280008 - NUT |
$2.99
|
|
| 20 | 282060 | 282060 - SCREW |
$2.99
|
|
| 21 | 281563 | 281563 - COVER |
$18.99
|
|
| 22 | 281870 | 281870 - SPRING |
$2.99
|
|
| 23 | 281878 | 281878 - ROD |
$2.99
|
|
| 24 | 263743 | 263743 - WASHER |
$2.99
|
|
| 25 | 282149 | 282149 - KNOB |
$2.99
|
|
| 27 | 281873 | 281873 - WASHER |
$2.99
|
|
| 28 | 281874 | 281874 - FAN |
$23.99
|
|
| 30 | 282549 | 282549 - LABEL |
$2.99
|
|
| 32 | 282558 | 282558 - LABEL |
$2.99
|
|
| 33 | 282028 | 282028 - LABEL |
$2.99
|
|
| 34 | 281863 | 281863 - SWITCH |
$23.99
|
|
| 35 | 282171 | 282171 - KNOB |
$2.99
|
|
| 36 | 282172 | 282172 - SCREW |
$2.99
|
