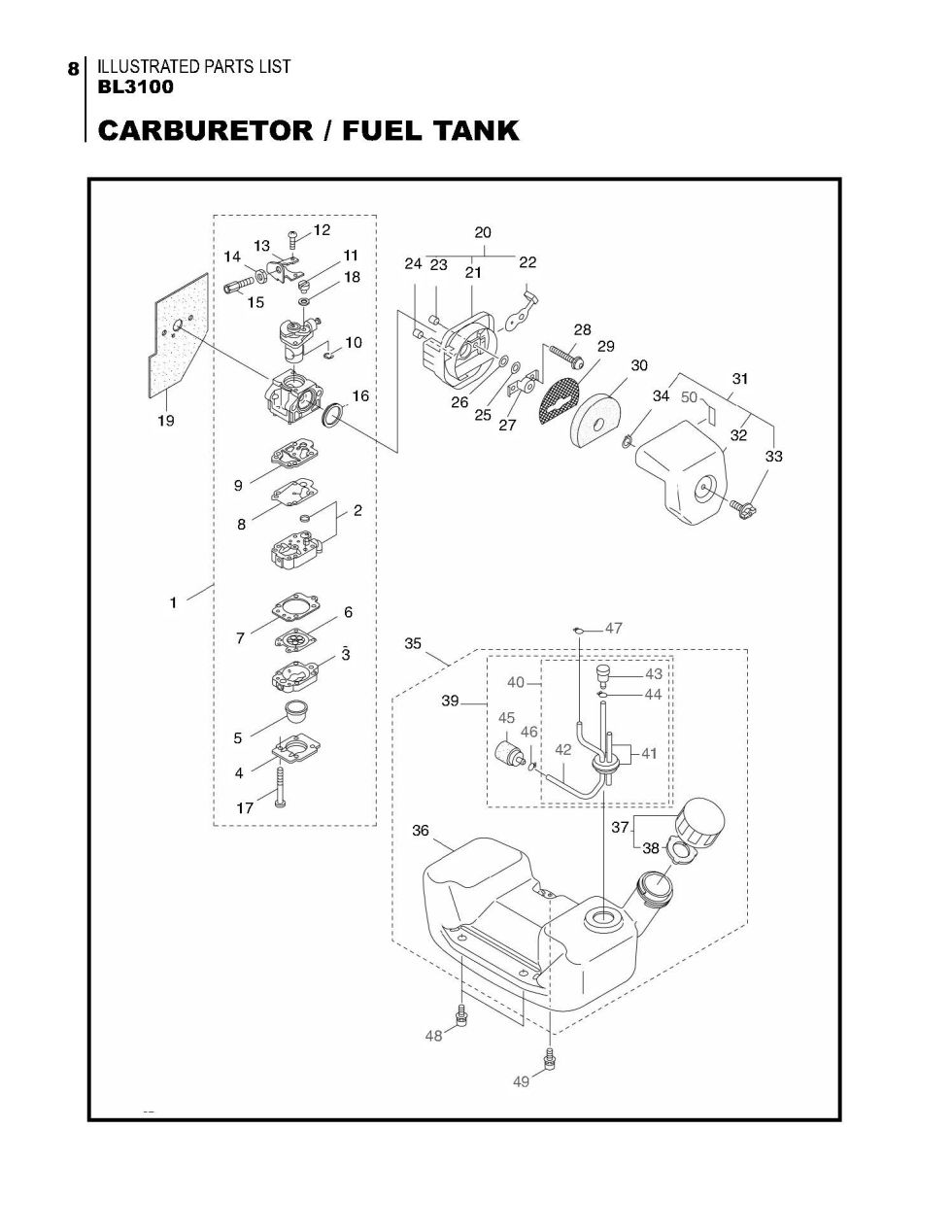

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BL3100. You have selected the Carburetor, Fuel Tank diagram for the Maruyama BL3100 Blowers. Below you will find an interactive part diagram for the BL3100 Carburetor, Fuel Tank. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BL3100 parts not shown in this diagram you may select from one of the other BL3100 part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 282528 | 282528 - CARBURETOR |
$84.99
|
|
| 2 | 264155 | 264155 - PUMP BODY |
$80.99
|
|
| 3 | 262991 | 262991 - PURGE BODY |
$23.99
|
|
| 4 | 262992 | 262992 - COVER PLATE |
$11.99
|
|
| 5 | 261874 | 261874 - PRIMER |
$19.99
|
|
| 6 | 268501 | 268501 - USE: 283905 |
$11.99
|
|
| 7 | 262993 | 262993 - GASKET |
$10.99
|
|
| 8 | 262994 | 262994 - DIAPHRAGM FUEL PUMP |
$18.99
|
|
| 9 | 282576 | 282576 - GASKET |
$8.99
|
|
| 10 | 261876 | 261876 - E-RING |
$2.99
|
|
| 11 | 261658 | 261658 - SWIVEL |
$5.99
|
|
| 12 | 261875 | 261875 - SCREW |
$2.99
|
|
| 13 | 264677 | 264677 - BRACKET |
$20.99
|
|
| 14 | 261878 | 261878 - NUT |
$2.99
|
|
| 15 | 261877 | 261877 - ADJUSTER |
$6.99
|
|
| 16 | 261657 | 261657 - PACKING |
$10.99
|
|
| 17 | 262996 | 262996 - SCREW |
$2.99
|
|
| 18 | 264678 | 264678 - WASHER |
$2.99
|
|
| 19 | 282578 | 282578 - GASKET |
$2.99
|
|
| 20 | 268055 | 268055 - AIR FILTER CASE ASSY |
$19.99
|
|
| 21 | 268056 | 268056 - AIR FILTER CASE |
$12.99
|
|
| 22 | 268057 | 268057 - VALVE |
$11.99
|
|
| 23 | 268412 | 268412 - SLEEVE |
$2.99
|
|
| 24 | 268157 | 268157 - SLEEVE |
$2.99
|
|
| 25 | 263345 | 263345 - PACKING |
$2.99
|
|
| 26 | 263942 | 263942 - WASHER |
$2.99
|
|
| 27 | 263815 | 263815 - STAY |
$8.99
|
|
| 28 | 264016 | 264016 - CAP SCREW M5X60 |
$2.99
|
|
| 29 | 265026 | 265026 - SCREEN |
$2.99
|
|
| 30 | 281861 | 281861 - CLEANER ELEMENT |
$7.99
|
|
| 31 | 268058 | 268058 - AIR FILTER COVER ASS |
$24.99
|
|
| 32 | 268059 | 268059 - AIR FILTER COVER |
$12.99
|
|
| 33 | 281438 | 281438 - KNOB |
$7.99
|
|
| 34 | 261734 | 261734 - SNAP RING |
$2.99
|
|
| 35 | 282529 | 282529 - TANK ASSY |
$75.99
|
|
| 36 | 281587 | 281587 - FUEL TANK |
$34.99
|
|
| 37 | 269201 |
269201 - USE: 281565 (obsolete) use part #281565 |
$8.99
|
|
| 38 | 269377 |
269377 - GASKET (obsolete) use part #287058 |
$10.99
|
|
| 39 | 282538 |
282538 - FUEL PICK UP ASSY (obsolete) use part #268062 |
$32.99
|
|
| 40 | 282539 | 282539 - FUEL PIPE ASSY |
$34.99
|
|
| 41 | 282540 | 282540 - USE: 282539 |
$17.99
|
|
| 42 | 261690 |
261690 - FUEL PIPE (obsolete) use part #262649 |
$2.99
|
|
| 43 | 261590 | 261590 - BREATHER SUB ASSY |
$12.99
|
|
| 44 | 261117 | 261117 - CLIP |
$2.99
|
|
| 48 | 268940 | 268940 - SCREW |
$2.99
|
|
| 49 | 281715 | 281715 - CAP SCREW |
$2.99
|
|
| 50 | 261352 | 261352 - DECAL |
$2.99
|
