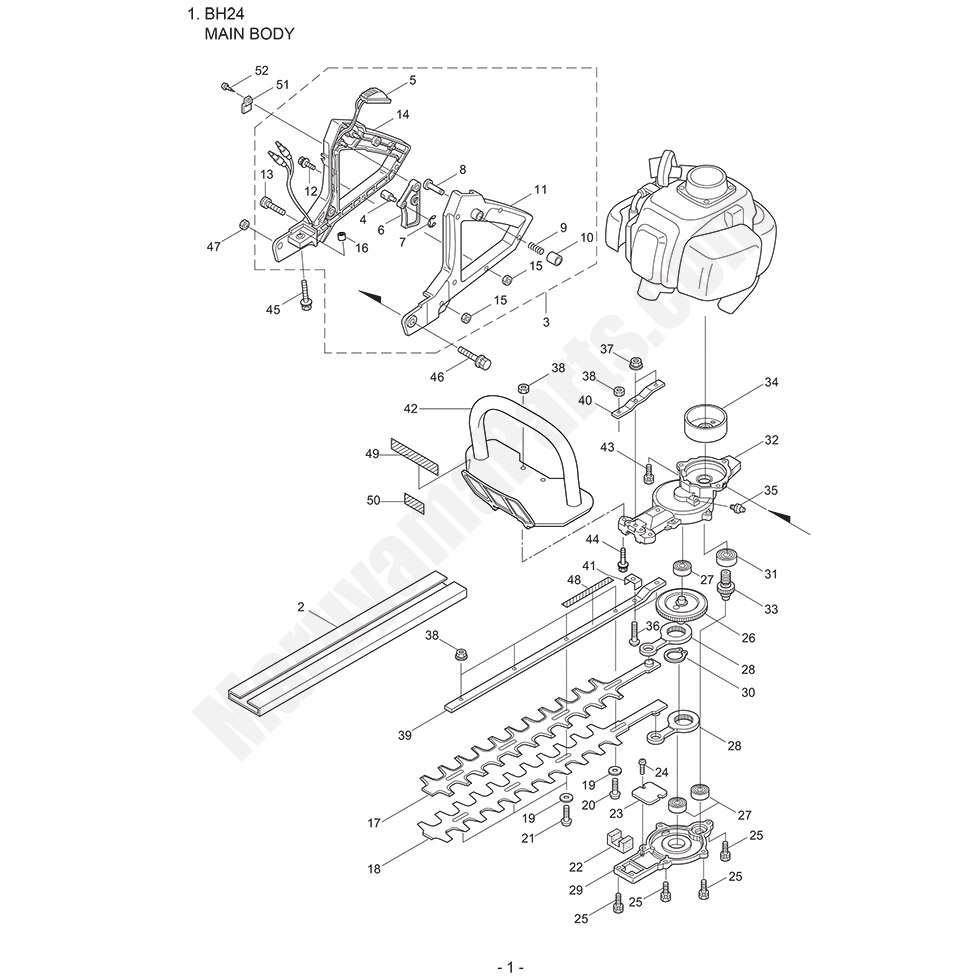

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BH24. You have selected the Main Body diagram for the Maruyama BH24 hedge trimmers. Below you will find an interactive part diagram for the BH24 Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BH24 parts not shown in this diagram you may select from one of the other BH24 part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.

Position number SKU Product title Price
2 217677 217677 - BLADE SHIELD
$39.99
3 271597 271597 - REAR HANDLE ASS'Y
$198.99
4 997260 997260 - SWIVEL
$24.99
5 271604 271604 - SWITCH
$24.99
6 997262 997262 - THROTTLE LEVER
$13.99
7 997263 997263 - RING SNAP
$2.99
8 997264 997264 - PIN, LEVER
$16.99
9 997265 997265 - SPRING
$6.99
10 997266 997266 - FIXING KNOB
$8.99
11 270147 270147 - NS REAR HANDLE (L)
$21.99
12 997268 997268 - SCREW(M4X16)
$2.99
13 997269 997269 - SCREW(M4X30)
$2.99
14 270099 270099 - REAR HANDLE (R)
$30.99
15 270233 270233 - U-NUT
$2.99
16 270424 270424 - SPACER
$5.99
17 271843 271843 - UPPER BLADE
$115.99
18 271844 271844 - LOWER BLADE
$115.99
19 991913 991913 - WASHER
$2.99
20 991912 991912 - SCREW FOR FITTING BL
$5.99
21 991914 991914 - SCREW
$10.99
22 270758 270758 - FELT
$14.99
23 991919 991919 - PLATE ROD SLIDE
$19.99
24 991924 991924 - SCREW
$2.99
25 580791 580791 - HEX HEAD BOLT
$2.99
26 591443 591443 - CRANK COMPLETE
$148.99
27 270423 270423 - BEARING
$22.99
28 271466 271466 - ROD
$58.99
29 270756 270756 - LOWER CASE
$44.99
30 580777 580777 - SNAP RING
$7.99
31 580767 580767 - BALL BEARING (#6001-
$29.99
32 270760 270760 - UPPER CASE
$126.99
33 584666 584666 - PINION GEAR
$88.99
34 270021 270021 - DRUM
$45.99
35 991937 991937 - NIPPLE, GREASE
$6.99
37 127226 127226 - FLANGE NUT
$2.99
38 991941 991941 - USE: 290560
$2.99
39 581912 581912 - BLADE GUIDE - 24IN
$57.99
40 270759 270759 - PLATE
$17.99
41 270757 270757 - PLATE
$14.99
42 270241 270241 - FRONT HANDLE
$36.99
43 270030 270030 - BOLT(M6X20)
$2.99
44 581910 581910 - NLA BOLT
$2.99
45 270120 270120 - SCREW(M6X40)
$2.99
46 270119 270119 - BOLT(M6X50)
$2.99
47 997253 997253 - HEX NUT(M6)
$2.99
48 591450 591450 - LABEL
$5.99
50 223925 223925 - LABEL
$2.99
51 997259 997259 - CABLE HOLDER
$2.99
52 997258 997258 - SCREW(M4X10)
$2.99
