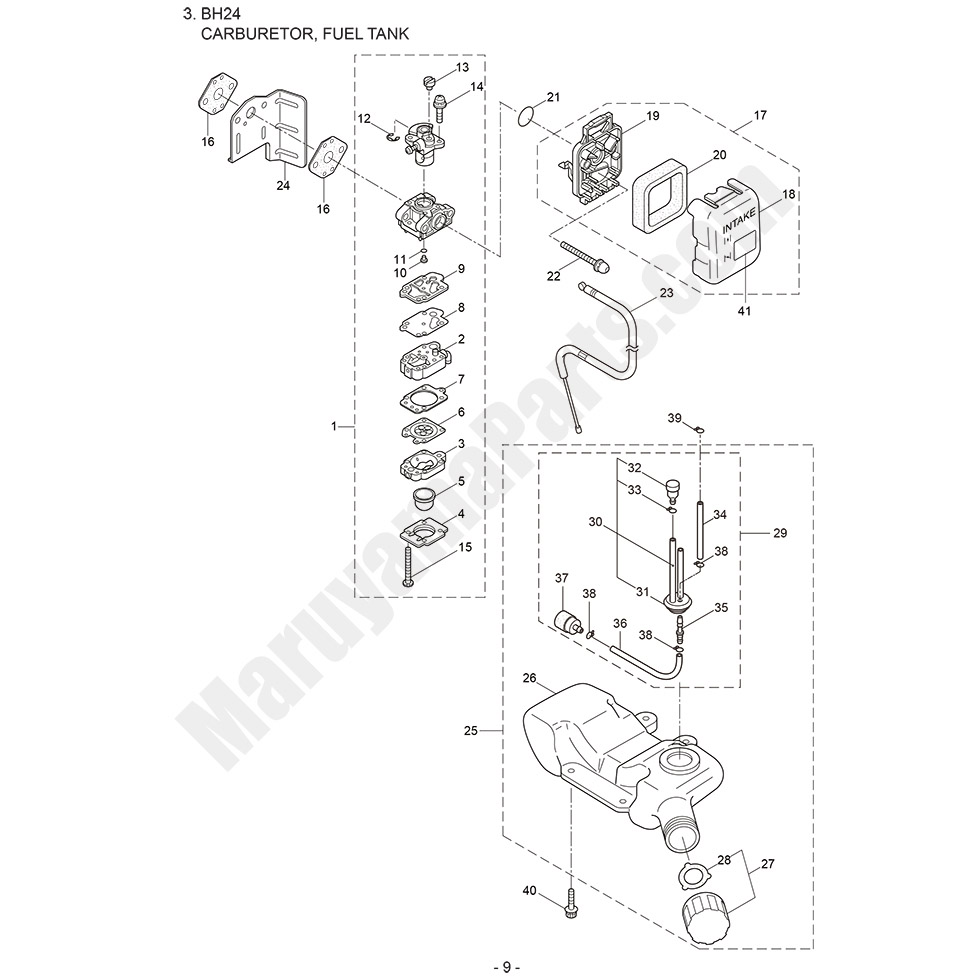

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BH24. You have selected the Carburetor and Fuel Tank diagram for the Maruyama BH24 hedge trimmers. Below you will find an interactive part diagram for the BH24 Carburetor and Fuel Tank. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BH24 parts not shown in this diagram you may select from one of the other BH24 part assemblies or select a different Blowers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Blowers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 287070 | 287070 - CARBURETOR ASS'Y |
$82.99
|
|
| 2 | 268499 | 268499 - PUMP BODY |
$47.99
|
|
| 3 | 262991 | 262991 - PURGE BODY |
$23.99
|
|
| 4 | 262992 | 262992 - COVER PLATE |
$11.99
|
|
| 5 | 261874 | 261874 - PRIMER |
$19.99
|
|
| 6 | 283905 | 283905 - METERRING DIAPHRAGM |
$15.99
|
|
| 7 | 262993 | 262993 - GASKET |
$10.99
|
|
| 8 | 262994 | 262994 - DIAPHRAGM FUEL PUMP |
$18.99
|
|
| 9 | 282576 | 282576 - GASKET |
$8.99
|
|
| 10 | 288187 | 288187 - MAIN JET |
$23.99
|
|
| 11 | 261871 | 261871 - O-RING |
$2.99
|
|
| 12 | 261876 | 261876 - E-RING |
$2.99
|
|
| 13 | 261658 | 261658 - SWIVEL |
$5.99
|
|
| 14 | 264682 | 264682 - SCREW |
$5.99
|
|
| 15 | 262996 | 262996 - SCREW |
$2.99
|
|
| 16 | 261864 | 261864 - GASKET |
$2.99
|
|
| 17 | 266420 |
266420 - AIR FILTER ASSY. (obsolete) use part #277926 |
$16.99
|
|
| 18 | 264709 |
264709 - CLEANER COVER (obsolete) use part #277554 |
$17.99
|
|
| 19 | 266433 | 266433 - CASE ASSY |
$21.99
|
|
| 20 | 264695 | 264695 - FILTER |
$12.99
|
|
| 21 | 264691 | 264691 - O-RING |
$2.99
|
|
| 22 | 264016 | 264016 - CAP SCREW M5X60 |
$2.99
|
|
| 23 | 264604 | 264604 - CABLE COMP |
$12.99
|
|
| 24 | 268951 | 268951 - BAFFLE PLATE |
$8.99
|
|
| 25 | 289025 | 289025 - FUEL TANK ASS'Y |
$75.99
|
|
| 26 | 284421 | 284421 - FUEL TANK |
$30.99
|
|
| 27 | 289044 | 289044 - FUEL TANK CAP ASS'Y |
$19.99
|
|
| 28 | 289045 | 289045 - GASKET |
$14.99
|
|
| 29 | 289026 | 289026 - FUEL PIPE PICK-UP AS |
$30.99
|
|
| 30 | 289027 | 289027 - FUEL PIPE ASS'Y |
$18.99
|
|
| 31 | 268065 | 268065 - GROMMET |
$8.99
|
|
| 32 | 261590 | 261590 - BREATHER SUB ASSY |
$12.99
|
|
| 33 | 261117 | 261117 - CLIP |
$2.99
|
|
| 34 | 289028 | 289028 - PIPE A |
$6.99
|
|
| 35 | 288921 | 288921 - JOINT |
$2.99
|
|
| 36 | 289029 | 289029 - PIPE |
$2.99
|
|
| 40 | 268940 | 268940 - SCREW |
$2.99
|
|
| 41 | 285188 | 285188 - LABEL |
$2.99
|
