Main Body

Main Body

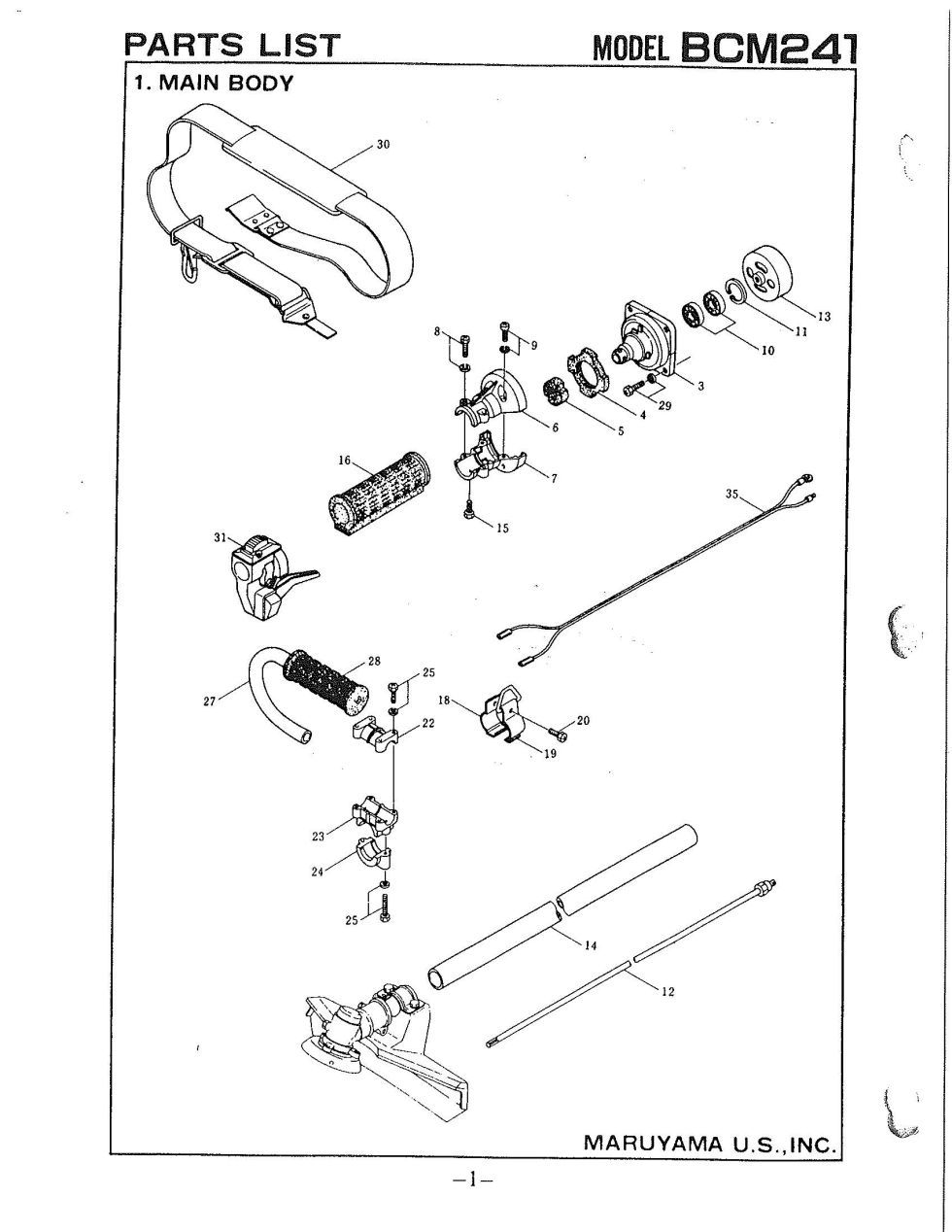

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BCM241. You have selected the Main Body diagram for the Maruyama BCM241 Trimmers and Brushcutters. Below you will find an interactive part diagram for the BCM241 Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BCM241 parts not shown in this diagram you may select from one of the other BCM241 part assemblies or select a different Trimmers and Brushcutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Trimmers and Brushcutters parts.

Position number SKU Product title Price
3 210533 210533 - NLA BEARING CASE
$47.99
4 210534 210534 - NLA BUFFER A
$13.99
5 210535 210535 - NLA BUFFER B
$9.99
6 210536 210536 - NLA OUTER TRANS. PIP
$17.99
7 210537 210537 - NLA OUTER TRANS. PIP
$20.99
8 092550 092550 - BOLT
$2.99
11 054676 054676 - SNAP RING
$2.99
12 211463 211463 - NLA INNER TRANSMISSI
$38.99
13 211465 211465 - NLA CLUTCH DRUM
$25.99
14 212399 212399 - NLA OUTER PIPE
$125.99
15 089771 089771 - BOLT
$2.99
18 054692 054692 - Obsolete - NS*** HANGING BRACKET (A) No Longer Available
Obsolete.
19 054695 054695 - Obsolete - NS*** HANGING BRACKET(B) No Longer Available
Obsolete.
22 210544 210544 - NS HANDLE BRACKET
$15.99
23 210545 210545 - NS HANDLE BRACKET
$15.99
24 210546 210546 - NS HANDLE BRACKET
$15.99
27 057705 057705 - Obsolete - USE PART #212385 No Longer Available
Obsolete.
29 092552 092552 - BOLT (M6X20)
$2.99
30 210781 210781 - USE: 220533
$32.99
31 212053 212053 - NLA THROTTLE LEVER
$27.99
32 212384 212384 - NLA LEAD WIRE
$26.99
