Engine (Carburetor, Recoil Starter)

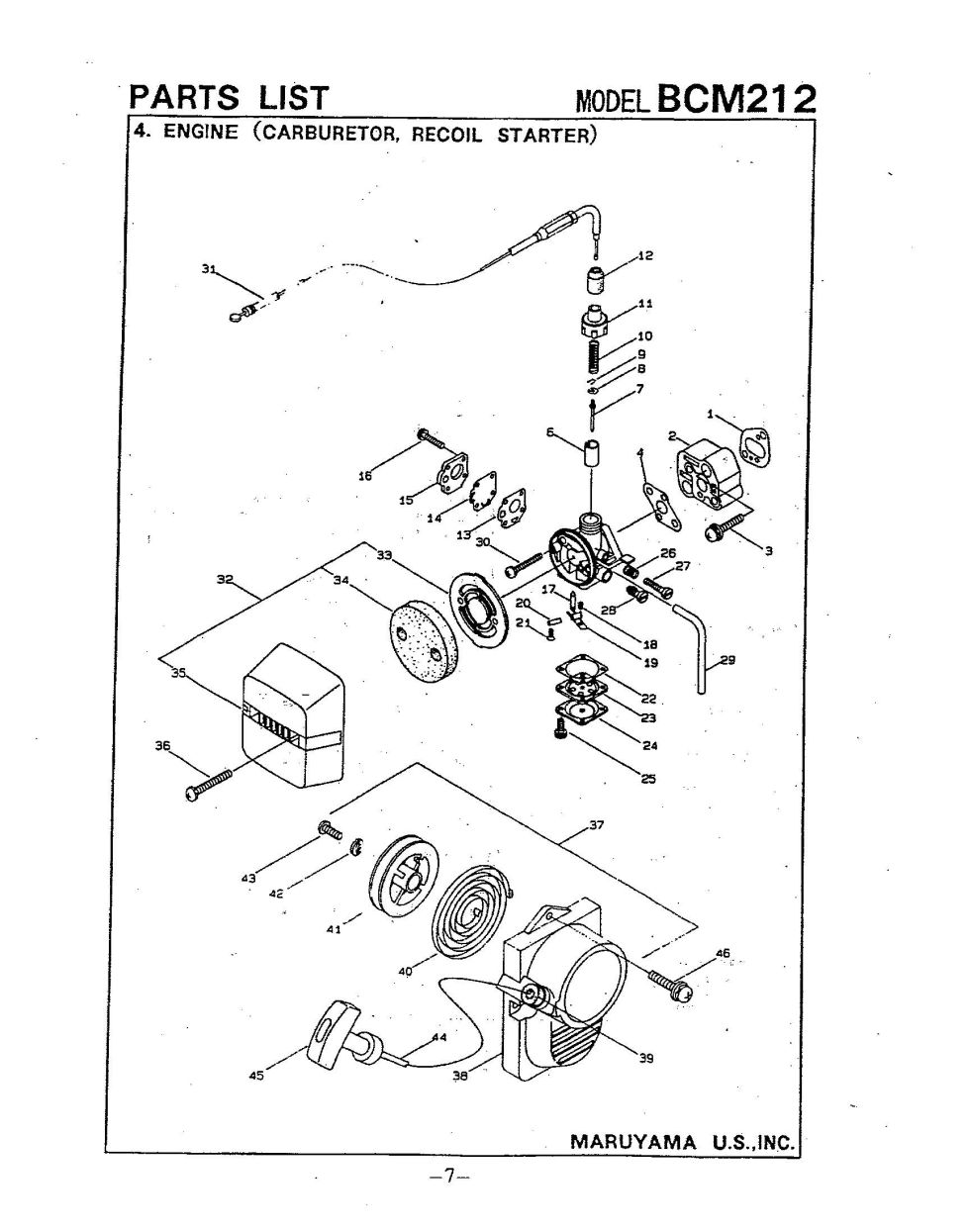

Engine (Carburetor, Recoil Starter)

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BCM212. You have selected the Engine (Carburetor, Recoil Starter) diagram for the Maruyama BCM212 Trimmers and Brushcutters. Below you will find an interactive part diagram for the BCM212 Engine (Carburetor, Recoil Starter). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BCM212 parts not shown in this diagram you may select from one of the other BCM212 part assemblies or select a different Trimmers and Brushcutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Trimmers and Brushcutters parts.

Position number SKU Product title Price
1 260061 260061 - NLA GASKET
$11.99
2 260062 260062 - NLA INSULATOR
$18.99
7 260138 260138 - NLA JET NEEDLE
$23.99
8 260048 260048 - NLA RETAINER
$2.99
9 260059 260059 - NLA CLIP
$15.99
10 972853 972853 - NLA THROTTLE RETURN
$8.99
11 977566 977566 - NLA MIXING CHAMBER C
$17.99
12 260058 260058 - NLA AIR SEAL
$11.99
13 972865 972865 - USE: 990325
$2.99
14 260055 260055 - USE: 990324
$22.99
15 260056 260056 - NLA COVER
$27.99
16 972887 972887 - SCREW
$2.99
17 972858 972858 - NLA FLOAT VALVE NEED
$27.99
18 972859 972859 - INLET VALVE SPRING
$10.99
19 972857 972857 - NLA FLOAT ARM
$10.99
21 972860 972860 - NLA FLOAT PIN SET SC
$2.99
22 977533 977533 - USE: 979680
$2.99
23 260052 260052 - USE: 976510
$22.99
24 260053 260053 - NLA COVER
$29.99
26 991097 991097 - NLA SPRING
$8.99
27 260051 260051 - NLA ADJUST SCREW
$13.99
28 977567 977567 - NLA MAIN ADJUSTING N
$19.99
29 971739 971739 - FUEL PIPE
$2.99
30 977534 977534 - NLA SCREW
$2.99
31 260306 260306 - USE: 996491
$21.99
32 260453 260453 - NLA AIR CLEANER
$30.99
33 991098 991098 - NLA ELEMENT HOLDER
$10.99
34 972844 972844 - ELEMENT
$15.99
35 260454 260454 - NLA CLEANER CASE
$5.99
37 260562 260562 - NLA RECOIL STARTER (
$30.99
38 260563 260563 - NLA STARTER CASE (NO
$17.99
39 260495 260495 - NLA ROPE GUIDE
$6.99
40 260094 260094 - USE: 261721 No Longer Available
Obsolete.
41 260093 260093 - REEL
$12.99
43 260095 260095 - USE: 261624
$2.99
44 972832 972832 - USE: 261724
$16.99
45 260098 260098 - NLA KNOB
$6.99
