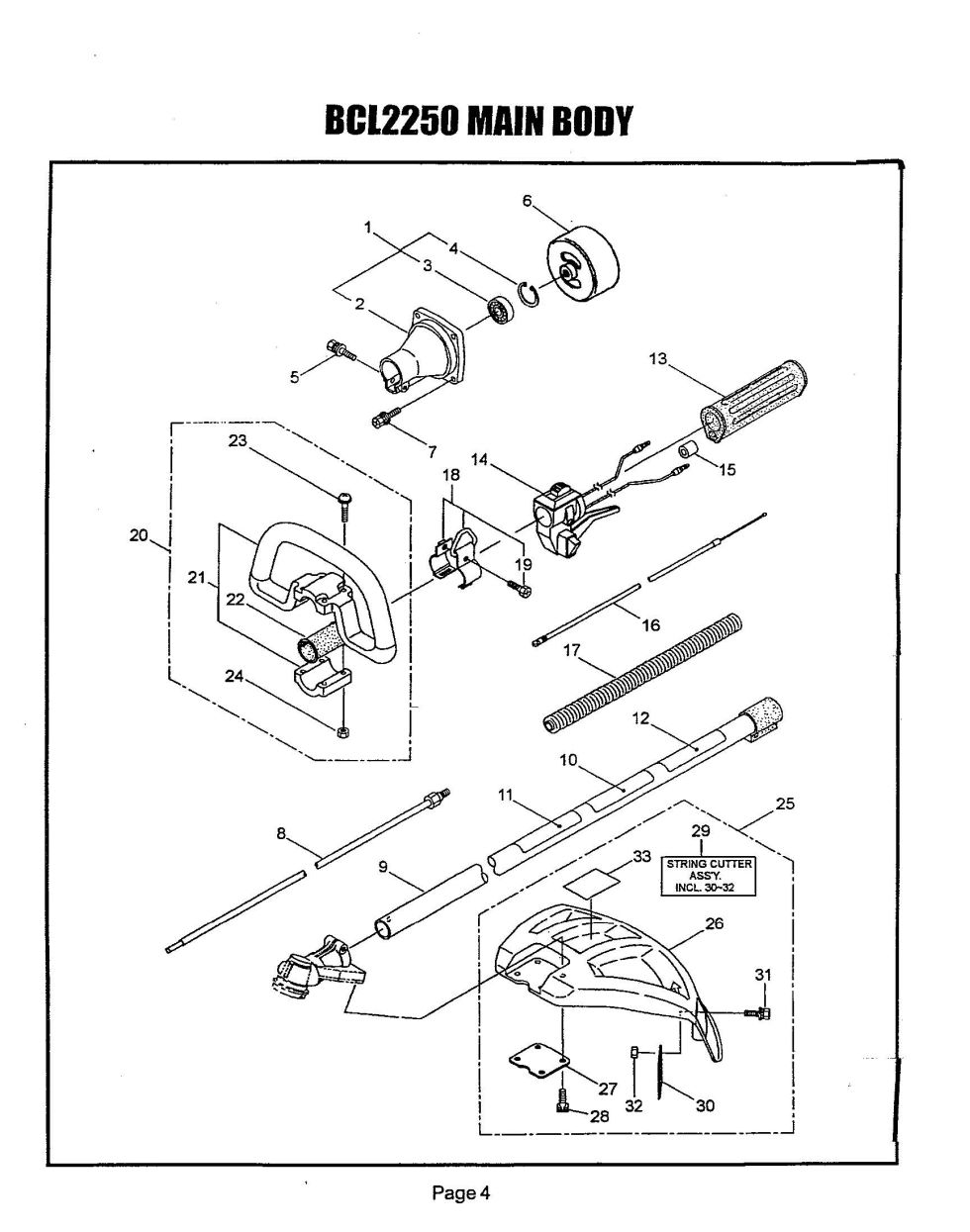

BCL2250 Main Body

Position number SKU Product title Price
1 221473 221473 - CLUTCH CASE ASSY
$50.99
2 221474 221474 - CLUTCH CASE
$38.99
3 016405 016405 - BEARING
$22.99
4 013825 013825 - C-SHAPED SNAP RING
$2.99
5 096042 096042 - BOLT (M5X30)
$2.99
6 054677 054677 - CLUTCH DRUM
$32.99
7 817002 817002 - BOLT
$2.99
8 221524 221524 - DRIVESHAFT ASSY
$38.99
9 219435 219435 - NLA DRIVESHAFT TUBE
$100.99
10 221501 221501 - LABEL
$9.99
11 221502 221502 - LABEL
$14.99
12 222883 222883 - DECAL
$8.99
13 215532 215532 - SHAFT GRIP
$24.99
14 221465 221465 - THROTTLE TRIGGER
$62.99
15 214083 214083 - OUTER GUIDE
$2.99
16 213444 213444 - THROTTLE CABLE
$13.99
17 213548 213548 - PLASTIC TUBE
$2.99
18 054691 054691 - HANGING BRACKET ASSY
$13.99
19 089738 089738 - BOLT
$2.99
20 214224 214224 - HANDLE ASSY
$27.99
21 214982 214982 - HANDLE ASSY
$28.99
22 213171 213171 - PACKING
$8.99
23 092087 092087 - Obsolete - USE PART #222142 No Longer Available
Obsolete.
24 081027 081027 - NUT M5
$2.99
25 222891 222891 - SAFETY COVER ASSY
$36.99
26 222880 222880 - SAFETY COVER
$31.99
27 222899 222899 - PLATE
$6.99
28 092579 092579 - BOLT
$2.99
29 222898 222898 - STRING CUTTER ASSY
$13.99
30 222900 222900 - NLA STRING CUTTER
$8.99
31 092548 092548 - BOLT M5X15
$2.99
33 220895 220895 - NLA DECAL
$17.99
