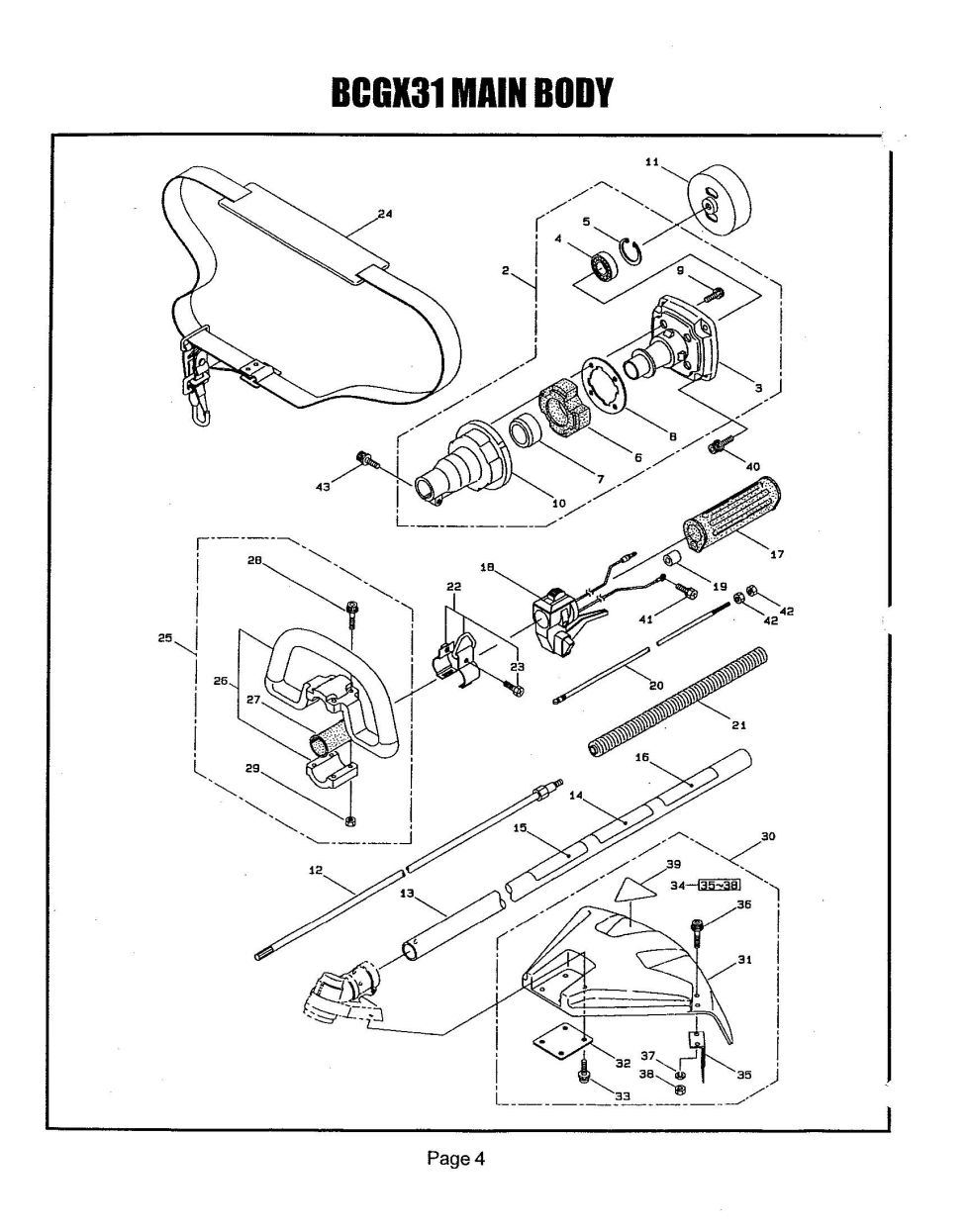

Home :: Parts Lookup :: Trimmers and Brushcutters :: BCGX22,BCGX31 BCGX31 Main Body breadcrumb_end

Model Type:

Model:

Assembly:

All Diagrams for this Model

Position number	SKU	Product title	Price
2	222354	222354 - NLA CLUTCH CASE	$112.99
3	222369	222369 - NLA BEARING CASE	$50.99
4	016405	016405 - BEARING	$22.99
5	013825	013825 - C-SHAPED SNAP RING	$2.99
6	217045	217045 - BUFFER (A)	$17.99
7	217046	217046 - BUFFER (B)	$10.99
8	217047	217047 - WASHER	$8.99
9	092033	092033 - SCREW(M5X15)	$2.99
10	222355	222355 - NLA DRIVESHAFT TUBE	$55.99
11	222260	222260 - DRUM	$32.99
12	222261	222261 - DRIVESHAFT ASSY.	$36.99
13	218711	218711 - DRIVESHAFT HOUSING	$74.99
14	221501	221501 - LABEL	$9.99
15	221502	221502 - LABEL	$14.99
17	215532	215532 - SHAFT GRIP	$24.99
18	222397	222397 - THROTTLE TRIGGER	$50.99
19	214083	214083 - OUTER GUIDE	$2.99
20	222289	222289 - THROTTLE WIRE	$15.99
21	213548	213548 - PLASTIC TUBE	$2.99
22	054691	054691 - HANGING BRACKET ASSY	$13.99
23	089738	089738 - BOLT	$2.99
24	220533	220533 - SHOULDER STRAP ASSY	$28.99
25	215601	215601 - LOOP HANDLE ASSY	$27.99
26	214982	214982 - HANDLE ASSY	$28.99
27	213171	213171 - PACKING	$8.99
28	215608	215608 - CAP SCREW	$2.99
29	089846	089846 - NUT M5 (obsolete) use part #081027	$2.99
30	221833	221833 - SAFETY COVER ASSY	$50.99
31	221403	221403 - SAFETY COVER	$30.99
32	221469	221469 - PLATE	$5.99
33	221785	221785 - CAP SCREW	$2.99
34	221836	221836 - STRING CUTTER ASSY	$20.99
35	221438	221438 - STRING CUTTER	$14.99
36	215351	215351 - CAP SCREW(M5X25)	$2.99
37	089901	089901 - WASHER	$2.99
39	220895	220895 - NLA DECAL	$17.99
40	219113	219113 - CAP SCREW(M6X20)	$6.99
41	092578	092578 - BOLT	$2.99
42	081032	081032 - NUT	$2.99
43	220632	220632 - CAP SCREW	$2.99
