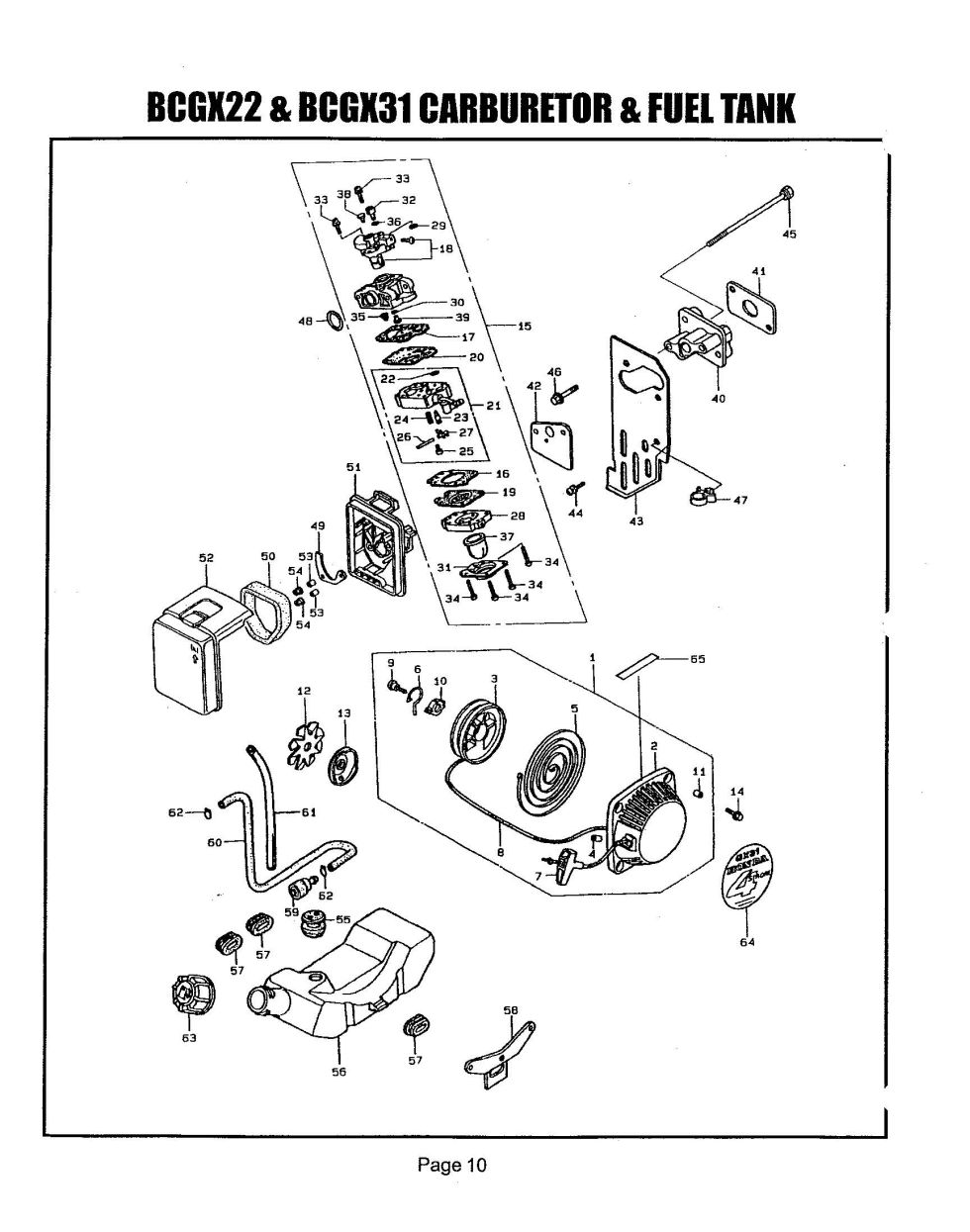

| Position number |
SKU |
Product title |
Price |
|
| 1 |
626713 |
626713 - STARTER ASSY, RECOIL |
$76.99
|
|
| 2 |
626714 |
626714 - NLA CASE, RECOIL STA |
$47.99
|
|
| 3 |
626715 |
626715 - NLA REEL, RECOIL STA |
$21.99
|
|
| 4 |
626716 |
626716 - GUIDE, ROPE |
$8.99
|
|
| 5 |
626717 |
626717 - NLA SPRING, RECOIL S |
$28.99
|
|
| 6 |
626720 |
626720 - ARM, SWING |
$18.99
|
|
| 7 |
626721 |
626721 - KNOB, RECOIL STARTER |
$18.99
|
|
| 8 |
626722 |
626722 - ROPE,RECOIL STARTER |
$16.99
|
|
| 9 |
626723 |
626723 - NLA SCREW SET |
$5.99
|
|
| 10 |
626724 |
626724 - COLLAR |
$5.99
|
|
| 11 |
626725 |
626725 - NLA COLLAR |
$2.99
|
|
| 12 |
626718 |
626718 - FAN, RATCHET |
$10.99
|
|
| 13 |
626719 |
626719 - PULLEY, RECOIL START |
$11.99
|
|
| 14 |
626675 |
626675 - NLA BOLT, FLANGE (5X |
$5.99
|
|
| 15A |
626872 |
626872 - NLA CARBURETOR A |
$81.99
|
|
| 15B |
626873 |
626873 - NLA CARBURETOR A |
$94.99
|
|
| 16 |
626734 |
626734 - NLA GASKET, METERING |
$10.99
|
|
| 17 |
626735 |
626735 - NLA GASKET, PUMP |
$15.99
|
|
| 18 |
626736 |
626736 - NS THROTTLE VALVE AS |
$62.99
|
|
| 19 |
626737 |
626737 - NLA DIAPHRAGM ASSY, |
$20.99
|
|
| 20 |
626738 |
626738 - NLA DIAPHRAGM PUMP |
$15.99
|
|
| 21 |
626739 |
626739 - NLA BODY ASSY, PUMP |
$72.99
|
|
| 22 |
626741 |
626741 - SCREEN INLET |
$12.99
|
|
| 23 |
626742 |
626742 - NLA VALVE, INLET NEE |
$17.99
|
|
| 24 |
626743 |
626743 - SPRING, METERING LEV |
$9.99
|
|
| 26 |
626745 |
626745 - NLA PIN, METERING LE |
$7.99
|
|
| 27 |
626746 |
626746 - LEVER, METERING |
$11.99
|
|
| 28 |
626740 |
626740 - BODY ASSY, AIR PURGE |
$33.99
|
|
| 29 |
626747 |
626747 - RING,SPRING RETAININ |
$9.99
|
|
| 30 |
626748 |
626748 - USE: 261871 |
$6.99
|
|
| 31 |
626749 |
626749 - NLA COVER PRIMING PU |
$13.99
|
|
| 32 |
626750 |
626750 - SWIVEL |
$16.99
|
|
| 33 |
626751 |
626751 - NLA SCREW THROTTLE C |
$5.99
|
|
| 34 |
626752 |
626752 - NLA SCREW, PUMP COVE |
$5.99
|
|
| 35 |
626753 |
626753 - NLA SPRING, PUMP |
$5.99
|
|
| 36 |
626754 |
626754 - NLA WASHER |
$5.99
|
|
| 37 |
626755 |
626755 - PUMP,PRIMER |
$16.99
|
|
| 38 |
627058 |
627058 - USE: 626736 |
$2.99
|
|
| 40 |
626759 |
626759 - INSULATOR |
$23.99
|
|
| 41 |
626760 |
626760 - INSULATOR PACKING |
$7.99
|
|
| 42 |
626761 |
626761 - PACKING, CARBURETOR |
$6.99
|
|
| 43 |
626762 |
626762 - GUIDE, AIR IN. |
$14.99
|
|
| 44 |
626763 |
626763 - NLA SCREW-WASHER (5X |
$2.99
|
|
| 45 |
626764 |
626764 - NLA SCREW |
$2.99
|
|
| 46 |
626678 |
626678 - NLA BOLT, FLANGE (5X |
$10.99
|
|
| 47 |
626765 |
626765 - CLIP,WIRE HARNESS |
$11.99
|
|
| 48 |
626766 |
626766 - NLA O-RING |
$2.99
|
|
| 49 |
626773 |
626773 - NLA PLATE, OIL TRAP |
$10.99
|
|
| 50 |
626774 |
626774 - ELEMENT, AIR CLEANER |
$8.99
|
|
| 51 |
626775 |
626775 - NLA CASE COMP, AIR C |
$33.99
|
|
| 52 |
626776 |
626776 - NLA COVER, AIR CLEAN |
$21.99
|
|
| 53 |
626777 |
626777 - NLA COLLAR, AIR CLEA |
$5.99
|
|
| 54 |
626244 |
626244 - NLA FLANGE NUT 5MM |
$2.99
|
|
| 55 |
626784 |
626784 - GROMMET FUEL TUBE |
$16.99
|
|
| 56A |
626785 |
626785 - NLA FUEL TANK |
$73.99
|
|
| 56B |
626786 |
626786 - FUEL TANK |
$82.99
|
|
| 57 |
626787 |
626787 - NLA RUBBER, TANK MOU |
$7.99
|
|
| 58 |
626788 |
626788 - NLA STAY, FUEL TANK |
$17.99
|
|
| 59 |
626790 |
626790 - FUEL FILTER |
$25.99
|
|
| 60 |
626791 |
626791 - TUBE, FUEL |
$21.99
|
|
| 61 |
626792 |
626792 - TUBE, FUEL RETURN |
$12.99
|
|
| 62 |
626793 |
626793 - NLA CLIP, TUBE |
$5.99
|
|
| 63 |
626789 |
626789 - CAP ASSY, FUEL TANK |
$24.99
|
|
| 64A |
626802 |
626802 - NLA EMBLEM (GX22) |
$15.99
|
|
| 64B |
626803 |
626803 - NLA EMBLEM (GX31) |
$15.99
|
|
