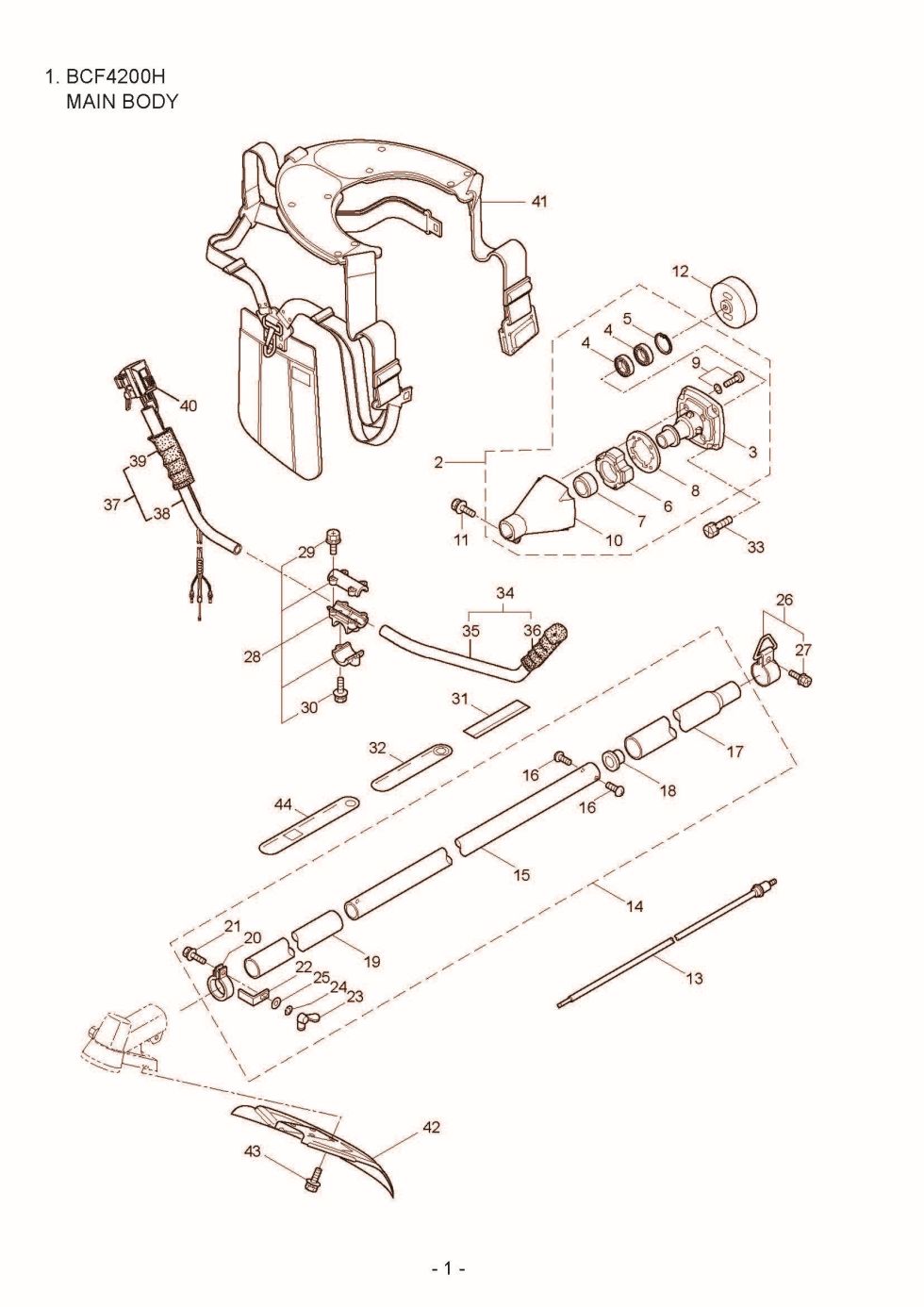

Maruyama Parts BCF4200H Main Body

Model Type:

Model:

Assembly:

All Diagrams for this Model

Position number	SKU	Product title	Price
2	228329	228329 - USE: 234162	$137.99
3	227729	227729 - USE: 234143	$32.99
4	140474	140474 - BEARING	$22.99
5	012380	012380 - SNAP RING	$2.99
6	217045	217045 - BUFFER (A)	$17.99
7	217046	217046 - BUFFER (B)	$10.99
8	217047	217047 - WASHER	$8.99
9	092033	092033 - SCREW(M5X15)	$2.99
10	227728	227728 - DRIVE SHAFT TUBE ADP	$39.99
11	092556	092556 - BOLT(M6X30)	$2.99
12	211203	211203 - CLUTCH DRUM	$26.99
13	217897	217897 - DRIVESHAFT	$42.99
14	224994	224994 - DRIVESHAFT TUBE ASSY	$155.99
15	218335	218335 - DRIVESHAFT TUBE	$51.99
16	089580	089580 - SCREW(M3.5X6)	$2.99
17	218324	218324 - DRIVESHAFT TUBE B	$53.99
18	059257	059257 - PIPE BASE	$5.99
19	218325	218325 - SLEEVE	$31.99
20	218237	218237 - BAND	$15.99
22	224995	224995 - USE: 225046	No Longer Available Obsolete.
24	126568	126568 - SPRING WASHER	$2.99
25	127239	127239 - WASHER	$2.99
26	220007	220007 - HANGING BRACKET ASSY	$17.99
27	089743	089743 - BOLT(M6X15)	$2.99
28	217638	217638 - BRACKET ASSY	$27.99
29	092554	092554 - BOLT(M6X25)	$2.99
32	221501	221501 - LABEL	$9.99
33	092552	092552 - BOLT (M6X20)	$2.99
34	219156	219156 - HANDLE ASSY-LEFT	$40.99
35	219157	219157 - HANDLE	$34.99
36	217904	217904 - HANDLE GRIP-LEFT	$24.99
37	219159	219159 - HANDLE ASSY-RIGHT	$28.99
38	219160	219160 - HANDLE	$23.99
39	217907	217907 - HANDLE GRIP-RIGHT	$24.99
40	222152	222152 - THROTTLE TRIGGER	$53.99
41	998384	998384 - USE: 234345	$48.99
42	217091	217091 - BLADE GUARD	$31.99
43	092562	092562 - BOLT	$2.99
44	221502	221502 - LABEL	$14.99
