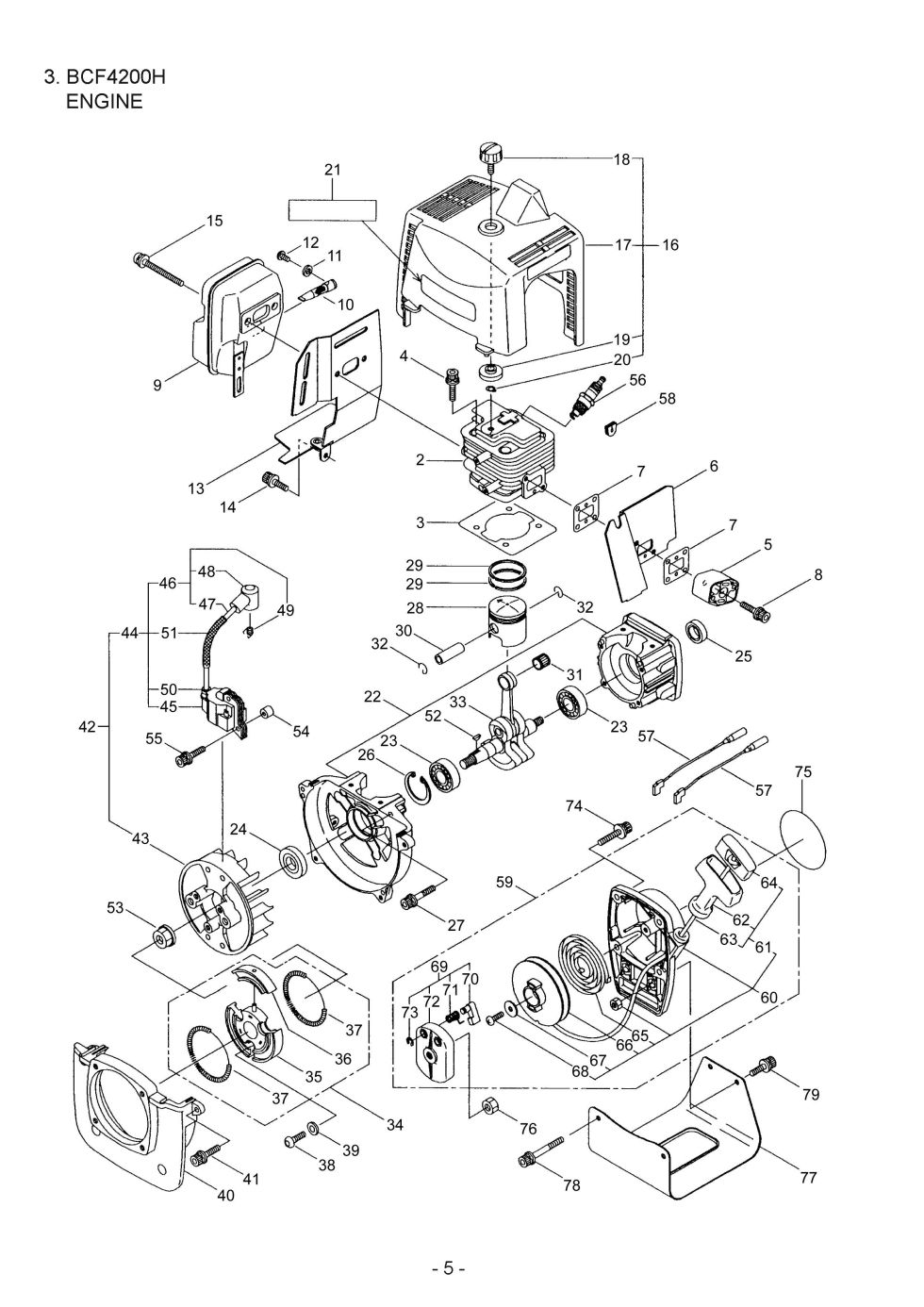

Engine

Position number SKU Product title Price
2 262544 262544 - CYLINDER
$79.99
3 262546 262546 - GASKET
$2.99
4 261246 261246 - CAP SCREW M5X25
$2.99
5 262548 262548 - INSULATOR
$20.99
6 262550 262550 - PLATE
$11.99
7 262790 262790 - GASKET
$2.99
8 265924 265924 - CAP SCREW 5X25
$2.99
9 264020 264020 - MUFFLER
$45.99
10 262395 262395 - SPARK ARRESTER M-LIN
$18.99
11 284052 284052 - WASHER
$2.99
12 089596 089596 - TAPPING SCREW
$2.99
13 262617 262617 - GASKET ASSY
$30.99
14 261607 261607 - BOLT M5X16
$2.99
15 262687 262687 - BOLT(M6X65)
$5.99
16 263922 263922 - TOP COVER ASSY
$51.99
17 263923 263923 - TOP COVER
$44.99
18 262556 262556 - KNOB
$5.99
19 262689 262689 - SPACER
$5.99
20 262690 262690 - SNAP RING
$2.99
21 281759 281759 - LABEL
$2.99
22 262558 262558 - CRANKCASE
$71.99
23 262658 262658 - BEARING
$17.99
24 262660 262660 - OIL SEAL
$5.99
25 262565 262565 - OIL SEAL (obsolete)
use part #246471
$11.99
26 012380 012380 - SNAP RING
$2.99
27 261999 261999 - CAP SCREW M5X40
$2.99
28 265227 265227 - PISTON AE240
$34.99
29 262476 262476 - PISTON RING
$16.99
30 262749 262749 - PISTON PIN
$11.99
31 262659 262659 - NEEDLE BEARING
$18.99
32 262479 262479 - CLIP PISTON
$2.99
33 280534 280534 - CRANKSHAFT
$136.99
34 264074 264074 - CLUTCH ASSY
$168.99
35 264072 264072 - NLA FLYWHEEL
$127.99
36 264071 264071 - CLUTCH SHOE
$52.99
37 264070 264070 - SPRING
$20.99
38 264039 264039 - CAP SCREW
$2.99
39 264073 264073 - WASHER
$2.99
40 281345 281345 - FAN COVER
$30.99
41 261250 261250 - BOLT M5X20
$2.99
42 267588 267588 - ROTOR ASSY
$83.99
43 262619 262619 - ROTOR
$82.99
44 267579 267579 - IGNITION COIL ASSY
$119.99
45 267572 267572 - COIL
$62.99
46 267584 267584 - SPARK PLUG WIRE ASSY
$20.99
47 267585 267585 - CORD
$2.99
48 261074 261074 - PLUG CAP
$13.99
49 261075 261075 - CONNECTOR
$2.99
50 261072 261072 - CAP
$2.99
51 269421 269421 - SPARK PLUG WIRE INSU
$2.99
52 261076 261076 - WOODRUFF KEY
$2.99
53 262731 262731 - NUT(M10)
$2.99
54 280381 280381 - SPACER
$2.99
55 261256 261256 - BOLT M4X25
$2.99
56 261200 261200 - SPARK PLUG
$20.99
57 267519 267519 - LEAD WIRE
$6.99
58 261202 261202 - GROMMET
$2.99
59 263525 263525 - RECOIL STARTER ASSY
$53.99
60 263526 263526 - RECOIL ASSY
$47.99
61 262631 262631 - ROPE ASSY
$23.99
62 262633 262633 - STARTER KNOB
$8.99
63 262632 262632 - STARTER ROPE
$8.99
64 262981 262981 - CAP
$2.99
65 262627 262627 - SPIRAL SPRING
$14.99
66 262626 262626 - PULLEY
$11.99
67 262982 262982 - WASHER
$2.99
68 262629 262629 - SET SCREW
$2.99
69 262634 262634 - PAWL
$22.99
70 262636 262636 - RATCHET
$5.99
71 262637 262637 - RETURN SPRING
$2.99
73 262638 262638 - E-RING
$2.99
74 261257 261257 - CAP SCREW M4X16
$2.99
77 263281 263281 - STAND
$23.99
78 268270 268270 - CAP SCREW(M5X16)
$2.99
