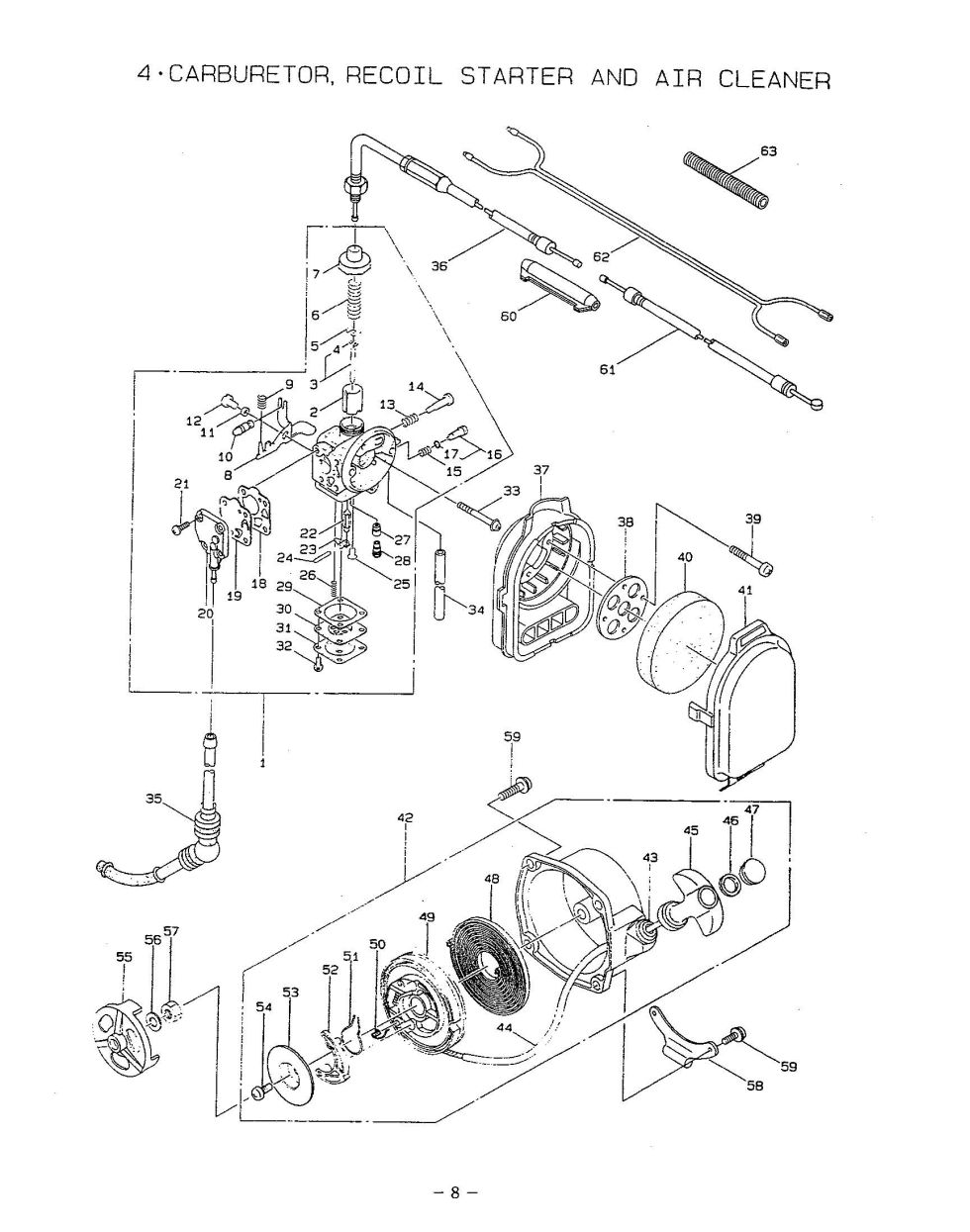

Carburetor, Recoil Starter, Air Filter

Position number SKU Product title Price
1 944748 944748 - NLA CARBURETOR ASSY
$153.99
2 944846 944846 - NLA THROTTLE VALVE
$31.99
3 996416 996416 - NLA JET NEEDLE
$21.99
5 943167 943167 - NLA RETAINER
$2.99
7 911084 911084 - USE: 071252 No Longer Available
Obsolete.
8 943938 943938 - NLA LEVER
$24.99
9 944704 944704 - USE: 591572
$2.99
10 943629 943629 - NLA BREATHER
$41.99
11 943747 943747 - USE: 591565
$2.99
12 943572 943572 - SCREW
$2.99
13 943192 943192 - NLA SPRING
$7.99
14 943211 943211 - SLOW STOP SCREW
$13.99
15 943743 943743 - SPRING
$2.99
16 944702 944702 - ADJUST SCREW
$21.99
17 943755 943755 - NLA O-RING
$8.99
19 943752 943752 - NLA PUMP DIAPHRAGM
$15.99
20 943750 943750 - NLA PUMP COVER
$26.99
21 943621 943621 - SCREW
$2.99
22 943615 943615 - NLA NEEDLE VALVE
$21.99
23 944703 944703 - NLA LEVER
$21.99
24 943745 943745 - PIN
$7.99
25 943748 943748 - SCREW
$2.99
26 943744 943744 - NLA SPRING
$6.99
27 944764 944764 - NLA NEEDLE JET
$30.99
28 944765 944765 - USE: 582894
$12.99
29 943754 943754 - NLA GASKET
$5.99
30 943749 943749 - NLA DIAPHRAGM ASSY (
$29.99
31 943753 943753 - NLA COVER
$13.99
32 943622 943622 - SCREW
$2.99
33 944059 944059 - NLA SCREW
$2.99
34 943642 943642 - NLA TUBE
$2.99
35 944747 944747 - NLA PRIMING PUMP
$75.99
36 212248 212248 - NLA CABLE
$19.99
37 944611 944611 - NLA AIR CLEANER CASE
$17.99
38 944614 944614 - NLA AIR CLEANER PLAT
$7.99
39 944522 944522 - SCREW
$2.99
40 944613 944613 - ELEMENT
$12.99
41 944651 944651 - NLA AIR CLEANER CAP
$8.99
42 944450 944450 - NLA RECOIL STARTER A
$40.99
43 943090 943090 - GUIDE
$16.99
44 944488 944488 - ROPE
$17.99
45 943093 943093 - NLA HANDLE
$17.99
46 943094 943094 - NLA WASHER
$2.99
47 943095 943095 - NLA CAP
$2.99
48 944487 944487 - NLA SPRING
$35.99
49 944486 944486 - NLA REEL RECOIL
$40.99
50 943467 943467 - USE: 591592
$2.99
51 943221 943221 - NLA RETURN SPRIN
$9.99
52 943220 943220 - NLA PAWL
$13.99
53 944328 944328 - NLA RETAINER COVER
$19.99
54 943222 943222 - NLA SCREW
$2.99
55 943979 943979 - NLA PULLEY
$15.99
56 071190 071190 - WASHER
$2.99
57 943173 943173 - NUT
$2.99
58 944466 944466 - NLA TANK BRACKET
$11.99
59 944451 944451 - SCREW
$2.99
60 212250 212250 - CASE
$5.99
61 212249 212249 - NLA CABLE B
$20.99
62 212251 212251 - NLA LEAD WIRE
$21.99
63 214483 214483 - NLA PLASTIC TUBE
$6.99
