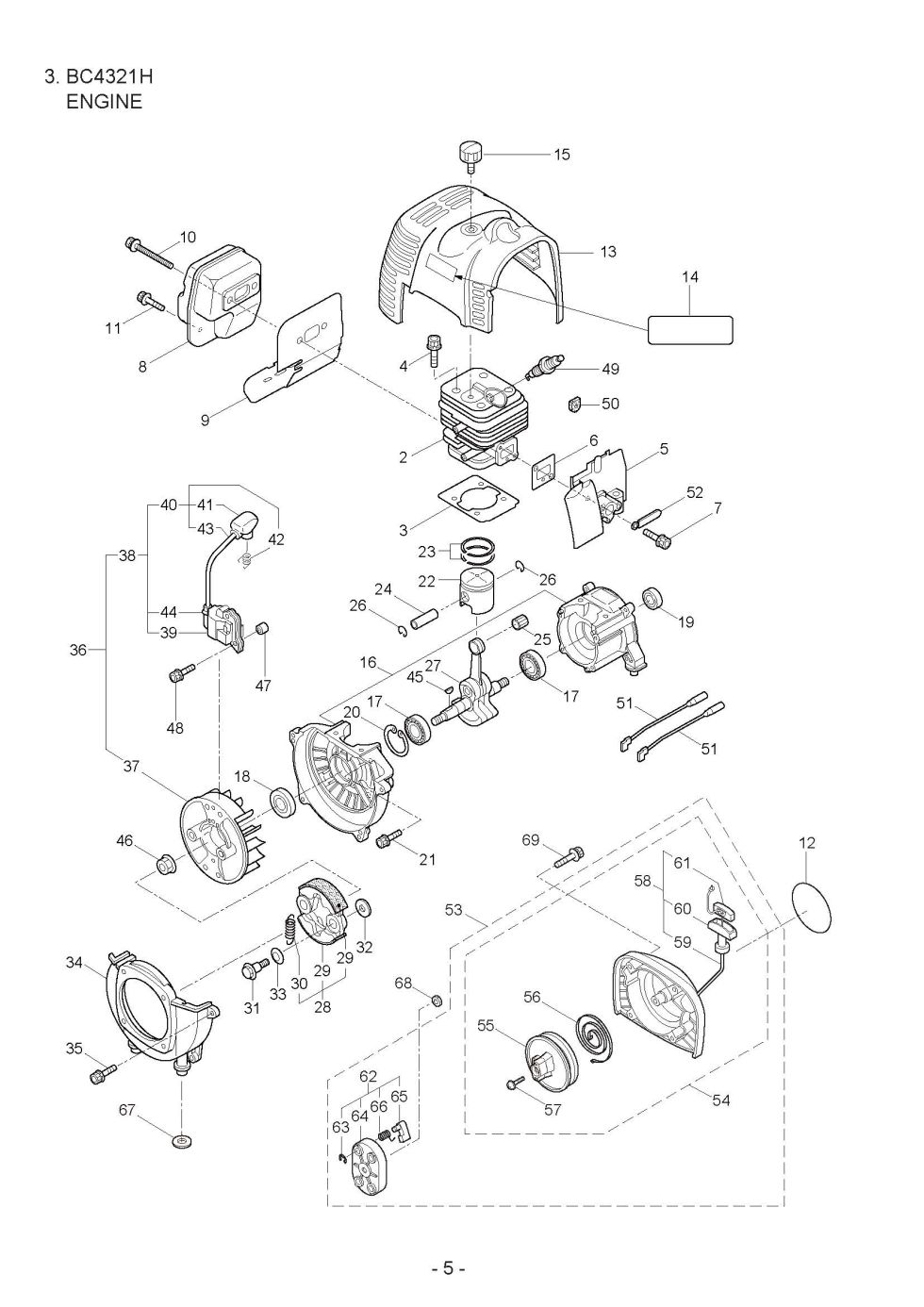

Engine

Position number SKU Product title Price
2 282257 282257 - CYLINDER
$170.99
3 282259 282259 - GASKET
$2.99
4 261612 261612 - BOLT
$2.99
5 282261 282261 - GASKET
$21.99
6 282262 282262 - GASKET
$2.99
7 267290 267290 - CAP SCREW
$2.99
8 282264 282264 - MUFFLER ASSY
$24.99
9 282271 282271 - GASKET
$17.99
10 266713 266713 - BUTTON BOLT
$5.99
11 283315 283315 - CAP SCREW
$2.99
12 283573 283573 - LABEL
$2.99
13 282274 282274 - TOP COVER
$31.99
14 281759 281759 - LABEL
$2.99
15 262556 262556 - KNOB
$5.99
16 282277 282277 - CRANKCASE
$91.99
17 262658 262658 - BEARING
$17.99
18 262660 262660 - OIL SEAL
$5.99
19 262565 262565 - OIL SEAL (obsolete)
use part #246471
$11.99
20 012380 012380 - SNAP RING
$2.99
22 265227 265227 - PISTON AE240
$34.99
23 262476 262476 - PISTON RING
$16.99
24 262749 262749 - PISTON PIN
$11.99
25 262659 262659 - NEEDLE BEARING
$18.99
26 262479 262479 - CLIP PISTON
$2.99
27 283038 283038 - CRANKSHAFT/CONN. ROD
$138.99
28 282743 282743 - CLUTCH ASSY
$29.99
29 282624 282624 - CLUTCH SHOE
$23.99
30 263617 263617 - SPRING
$9.99
31 282321 282321 - CLUTCH BOLT
$5.99
32 262683 262683 - WASHER
$2.99
33 262682 262682 - WAVE WASHER
$2.99
34 282285 282285 - FAN COVER
$28.99
35 261250 261250 - BOLT M5X20
$2.99
36 282287 282287 - ROTOR ASSY
$86.99
37 282288 282288 - ROTOR
$27.99
38 282289 282289 - IGNITION COIL ASSY
$92.99
39 267572 267572 - COIL
$62.99
40 282290 282290 - CORD ASSEMBLY
$20.99
41 282292 282292 - BOOT
$11.99
42 261075 261075 - CONNECTOR
$2.99
43 282291 282291 - CORD
$2.99
44 261072 261072 - CAP
$2.99
45 261076 261076 - WOODRUFF KEY
$2.99
46 262731 262731 - NUT(M10)
$2.99
47 280381 280381 - SPACER
$2.99
48 261256 261256 - BOLT M4X25
$2.99
49 261200 261200 - SPARK PLUG
$20.99
50 281172 281172 - GROMMET
$2.99
51 267492 267492 - LEAD
$7.99
52 264588 264588 - CLAMP
$2.99
53 285674 285674 - RECOIL STARTER ASSY
$55.99
54 285675 285675 - RECOIL STARTER ASSY
$37.99
55 285676 285676 - REEL
$23.99
56 280995 280995 - SPIRAL SPRING
$15.99
57 281000 281000 - SCREW
$2.99
58 285677 285677 - STARTER ROPE ASSY
$21.99
59 285678 285678 - STARTER ROPE
$6.99
60 262633 262633 - STARTER KNOB
$8.99
61 262981 262981 - CAP
$2.99
62 285679 285679 - STARTER PULLEY ASSY
$23.99
63 262638 262638 - E-RING
$2.99
64 285680 285680 - STARTER PULLEY
$17.99
65 285681 285681 - RATCHET
$6.99
66 285682 285682 - RETURN SPRING
$2.99
67 285735 285735 - PACKING
$2.99
68 285736 285736 - Nut
$2.99
69 261607 261607 - BOLT M5X16
$2.99
