All Diagrams for this Model

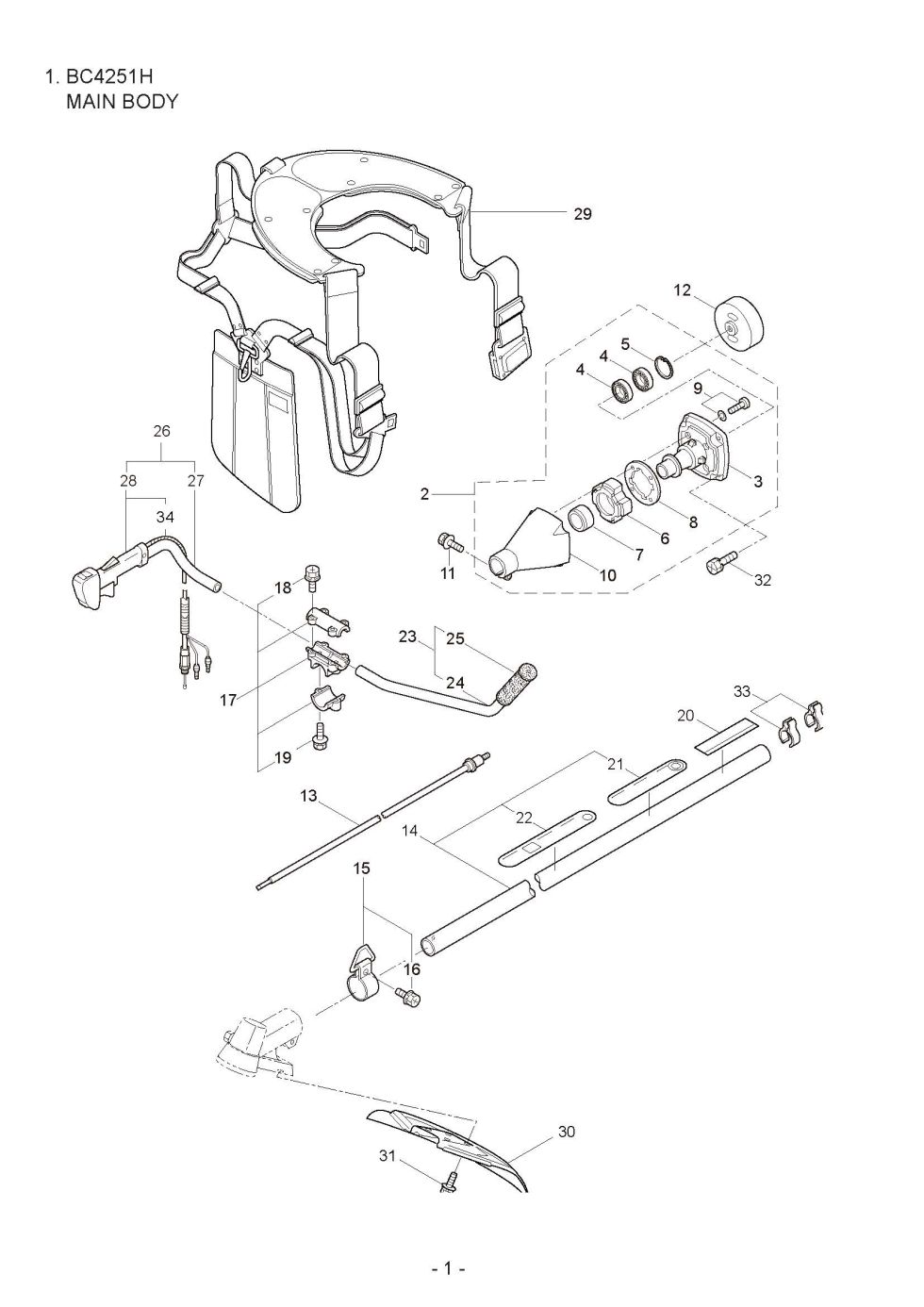

Main Body

Position number SKU Product title Price
2 228329 228329 - USE: 234162
$137.99
3 227729 227729 - USE: 234143
$32.99
4 140474 140474 - BEARING
$22.99
5 012380 012380 - SNAP RING
$2.99
6 217045 217045 - BUFFER (A)
$17.99
7 217046 217046 - BUFFER (B)
$10.99
8 217047 217047 - WASHER
$8.99
9 092033 092033 - SCREW(M5X15)
$2.99
10 227728 227728 - DRIVE SHAFT TUBE ADP
$39.99
11 092556 092556 - BOLT(M6X30)
$2.99
12 211203 211203 - CLUTCH DRUM
$26.99
13 217897 217897 - DRIVESHAFT
$42.99
14 220082 220082 - DRIVESHAFT TUBE ASSY
$85.99
15 217850 217850 - HANGING BRACKET ASSY
$20.99
16 092548 092548 - BOLT M5X15
$2.99
17 217638 217638 - BRACKET ASSY
$27.99
18 092554 092554 - BOLT(M6X25)
$2.99
21 221501 221501 - LABEL
$9.99
22 221502 221502 - LABEL
$14.99
23 228398 228398 - HANDLE ASSY - LEFT
$48.99
24 228399 228399 - Handle (A)
$26.99
25 226512 226512 - Grip
$14.99
26 229074 229074 - HANDLE B ASSY
$108.99
27 228401 228401 - HANDLE
$24.99
28 229005 229005 - THROTTLE LEVER ASSY
$60.99
29 998384 998384 - USE: 234345
$48.99
30 217091 217091 - BLADE GUARD
$31.99
31 092562 092562 - BOLT
$2.99
32 092552 092552 - BOLT (M6X20)
$2.99
33 219161 219161 - WIRE GUIDE
$2.99
34 229026 229026 - THROTTLE CABLE BC432
$30.99
