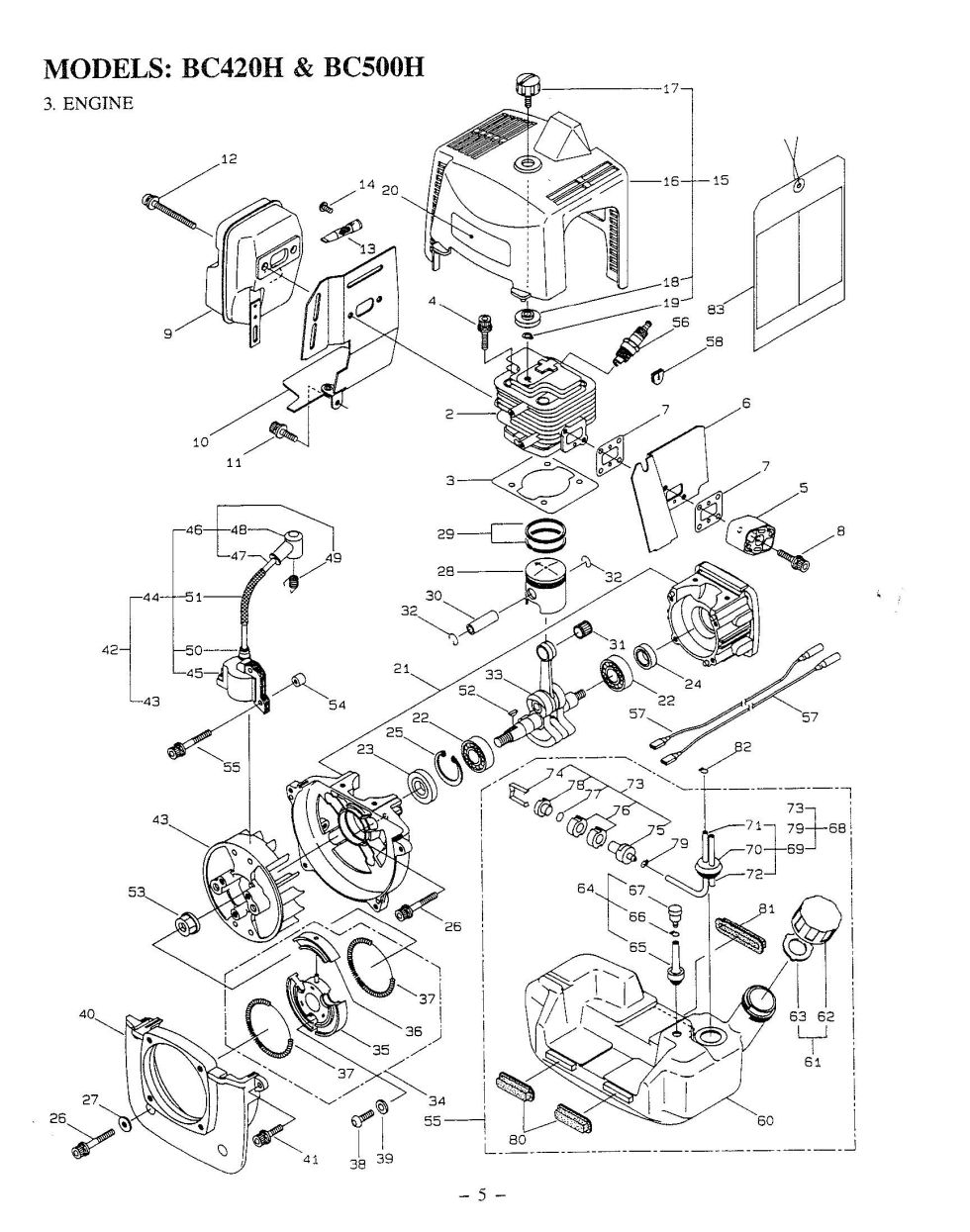

Engine

Position number SKU Product title Price
1A 264032 264032 - NLA AE420 - ENGINE A
$676.99
1B 264226 264226 - NLA AE500 - ENGINE A
$749.99
2A 262544 262544 - CYLINDER
$79.99
2B 264017 264017 - CYLINDER
$134.99
3 262546 262546 - GASKET
$2.99
4 261246 261246 - CAP SCREW M5X25
$2.99
5 262548 262548 - INSULATOR
$20.99
6A 262550 262550 - PLATE
$11.99
6B 264064 264064 - AIR DUCT
$7.99
7 262790 262790 - GASKET
$2.99
9 264020 264020 - MUFFLER
$45.99
10 262617 262617 - GASKET ASSY
$30.99
11 261607 261607 - BOLT M5X16
$2.99
12 262687 262687 - BOLT(M6X65)
$5.99
13 262395 262395 - SPARK ARRESTER M-LIN
$18.99
14 089530 089530 - SCREW(M3X10)
$2.99
15A 262554 262554 - USE: 263922
$29.99
15B 263922 263922 - TOP COVER ASSY
$51.99
16A 262555 262555 - TOP COVER
$38.99
16B 263923 263923 - TOP COVER
$44.99
17 262556 262556 - KNOB
$5.99
18 262689 262689 - SPACER
$5.99
19 262690 262690 - SNAP RING
$2.99
20 262714 262714 - NLA LABEL
$2.99
21 262558 262558 - CRANKCASE
$71.99
22 262658 262658 - BEARING
$17.99
23 262660 262660 - OIL SEAL
$5.99
24 262565 262565 - OIL SEAL (obsolete)
use part #246471
$11.99
25 012380 012380 - SNAP RING
$2.99
26 261999 261999 - CAP SCREW M5X40
$2.99
27 263743 263743 - WASHER
$2.99
28A 262473 262473 - USE: 265227
$28.99
28B 264003 264003 - PISTON
$44.99
29A 262476 262476 - PISTON RING
$16.99
29B 264005 264005 - PISTON RING
$15.99
30 262749 262749 - PISTON PIN
$11.99
31 262659 262659 - NEEDLE BEARING
$18.99
32 262479 262479 - CLIP PISTON
$2.99
33 262567 262567 - CRANKSHAFT
$100.99
34 264074 264074 - CLUTCH ASSY
$168.99
35 264072 264072 - NLA FLYWHEEL
$127.99
36 264071 264071 - CLUTCH SHOE
$52.99
37 264070 264070 - SPRING
$20.99
38 264039 264039 - CAP SCREW
$2.99
39 264073 264073 - WASHER
$2.99
40 262579 262579 - FAN COVER
$59.99
41 261250 261250 - BOLT M5X20
$2.99
42 263077 263077 - NLA MAGNETO ASSY
$126.99
43 262619 262619 - ROTOR
$82.99
44 263078 263078 - IGNITION COIL
$52.99
45 263079 263079 - NLA COIL
$115.99
46 262622 262622 - CORD ASSY
$27.99
47 262623 262623 - NLA SPARK PLUG W
$2.99
48 261074 261074 - PLUG CAP
$13.99
49 261075 261075 - CONNECTOR
$2.99
50 261072 261072 - CAP
$2.99
51 262694 262694 - TUBE
$2.99
52 261076 261076 - WOODRUFF KEY
$2.99
53 262731 262731 - NUT(M10)
$2.99
54 261078 261078 - NLA SPACER -
$2.99
55 261256 261256 - BOLT M4X25
$2.99
56 261200 261200 - SPARK PLUG
$20.99
57 262717 262717 - USE: 265269
$5.99
58 261202 261202 - GROMMET
$2.99
60 262594 262594 - FUEL TANK
$40.99
61 261584 261584 - FUEL TANK CAP ASSY
$15.99
62 261578 261578 - USE: 261104
$7.99
63 261105 261105 - PACKING
$2.99
64 261696 261696 - BREATHER ASSY
$8.99
65 261697 261697 - GROMMET
$13.99
66 261590 261590 - BREATHER SUB ASSY
$12.99
67 261698 261698 - CLIP
$2.99
68 262645 262645 - FUEL PIPE ASSY
$26.99
69 262646 262646 - FUEL PIPE ASSEMBLY
$11.99
70 261115 261115 - USE: 266955 (obsolete)
use part #266955
$17.99
71 262649 262649 - FUEL PIPE
$2.99
72 263038 263038 - RETURN PIPE
$2.99
73 261797 261797 - NLA FUEL FILTER ASSY
$12.99
74 261798 261798 - NS CLIP
$2.99
75 261799 261799 - NS BODY
$8.99
76 261800 261800 - NLA FILTER
$2.99
77 261801 261801 - NS PACKING
$2.99
78 261802 261802 - RETAINER
$6.99
79 261117 261117 - CLIP
$2.99
80 262697 262697 - PAD
$2.99
