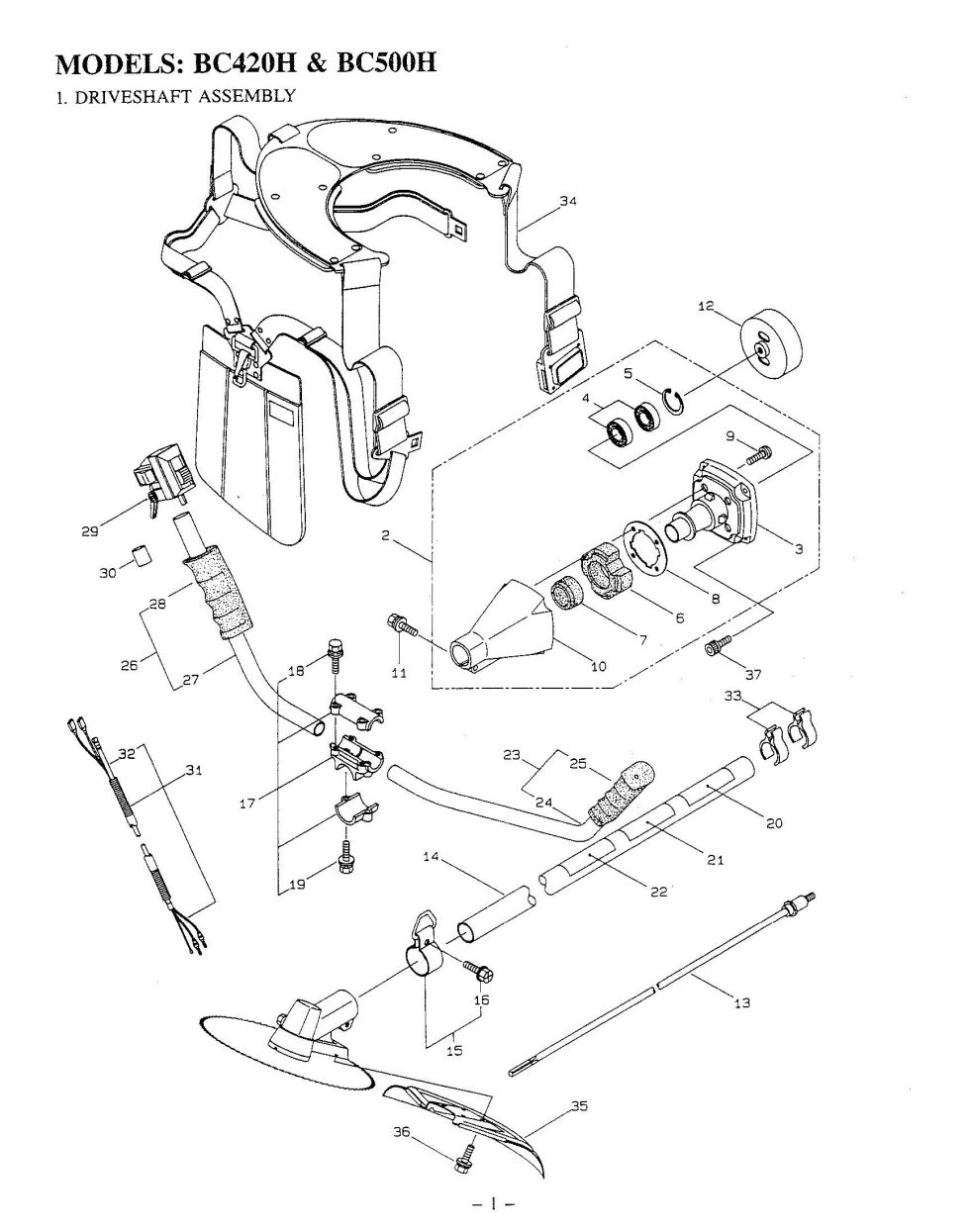

Driveshaft

Position number SKU Product title Price
2 217043 217043 - USE: 234126
$163.99
3 217044 217044 - USE: 234143
$63.99
4 140474 140474 - BEARING
$22.99
5 012380 012380 - SNAP RING
$2.99
6 217045 217045 - BUFFER (A)
$17.99
7 217046 217046 - BUFFER (B)
$10.99
8 217047 217047 - WASHER
$8.99
9 092033 092033 - SCREW(M5X15)
$2.99
10 217048 217048 - USE: 227728
$43.99
11 092556 092556 - BOLT(M6X30)
$2.99
12 211203 211203 - CLUTCH DRUM
$26.99
13 217897 217897 - DRIVESHAFT
$42.99
14 217900 217900 - DRIVESHAFT TUBE ASSY
$70.99
15 217850 217850 - HANGING BRACKET ASSY
$20.99
16 092548 092548 - BOLT M5X15
$2.99
17 217638 217638 - BRACKET ASSY
$27.99
18 092554 092554 - BOLT(M6X25)
$2.99
20B 217136 217136 - LABEL
$22.99
20 219185 219185 - LABEL
$22.99
21 215534 215534 - DECAL
$2.99
22 215535 215535 - LABEL
$13.99
23 219156 219156 - HANDLE ASSY-LEFT
$40.99
24 219157 219157 - HANDLE
$34.99
25 217904 217904 - HANDLE GRIP-LEFT
$24.99
26 219159 219159 - HANDLE ASSY-RIGHT
$28.99
27 219160 219160 - HANDLE
$23.99
28 217907 217907 - HANDLE GRIP-RIGHT
$24.99
29 216547 216547 - NLA THROTTLE TRIGGER
$18.99
30 219126 219126 - RUBBER TUBE
$2.99
31 215969 215969 - NLA WIRE ASSY
$45.99
32 213606 213606 - THROTTLE WIRE
$30.99
33 219161 219161 - WIRE GUIDE
$2.99
34 998384 998384 - USE: 234345
$48.99
35 217091 217091 - BLADE GUARD
$31.99
36 092562 092562 - BOLT
$2.99
37 219113 219113 - CAP SCREW(M6X20)
$6.99
