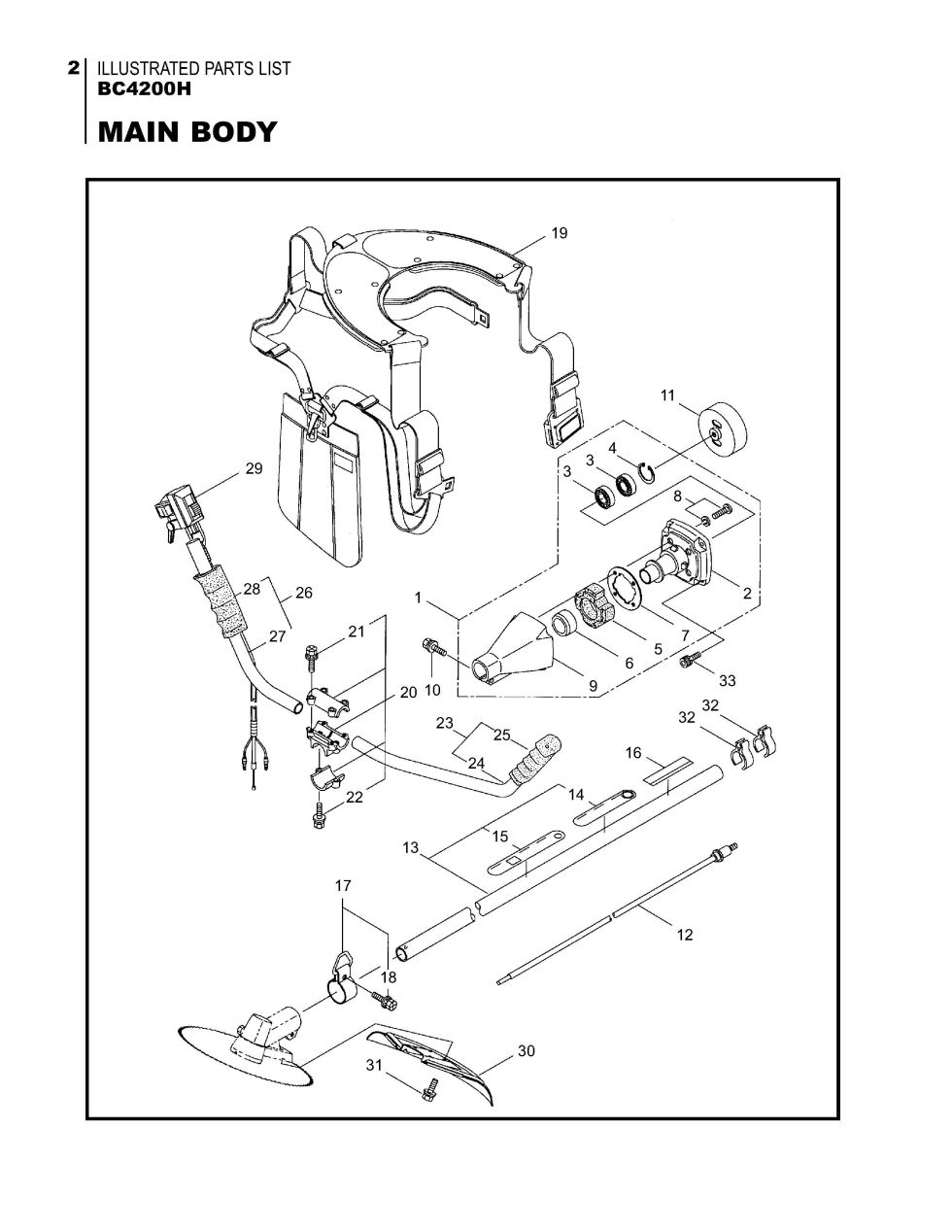

Main Body

Position number SKU Product title Price
1 217043 217043 - USE: 234126
$163.99
2 217044 217044 - USE: 234143
$63.99
3 140474 140474 - BEARING
$22.99
4 012380 012380 - SNAP RING
$2.99
5 217045 217045 - BUFFER (A)
$17.99
6 217046 217046 - BUFFER (B)
$10.99
7 217047 217047 - WASHER
$8.99
8 092033 092033 - SCREW(M5X15)
$2.99
9 217048 217048 - USE: 227728
$43.99
10 092556 092556 - BOLT(M6X30)
$2.99
11 902835 902835 - USE: 211203
$33.99
12 217897 217897 - DRIVESHAFT
$42.99
13 220082 220082 - DRIVESHAFT TUBE ASSY
$85.99
14 221501 221501 - LABEL
$9.99
15 221502 221502 - LABEL
$14.99
16 220801 220801 - LABEL
$13.99
17 217850 217850 - HANGING BRACKET ASSY
$20.99
18 092548 092548 - BOLT M5X15
$2.99
19 998384 998384 - USE: 234345
$48.99
20 217638 217638 - BRACKET ASSY
$27.99
21 092554 092554 - BOLT(M6X25)
$2.99
23 219156 219156 - HANDLE ASSY-LEFT
$40.99
24 219157 219157 - HANDLE
$34.99
25 217904 217904 - HANDLE GRIP-LEFT
$24.99
26 219159 219159 - HANDLE ASSY-RIGHT
$28.99
27 219160 219160 - HANDLE
$23.99
28 217907 217907 - HANDLE GRIP-RIGHT
$24.99
29 222152 222152 - THROTTLE TRIGGER
$53.99
30 217091 217091 - BLADE GUARD
$31.99
31 092562 092562 - BOLT
$2.99
32 219161 219161 - WIRE GUIDE
$2.99
33 219113 219113 - CAP SCREW(M6X20)
$6.99
