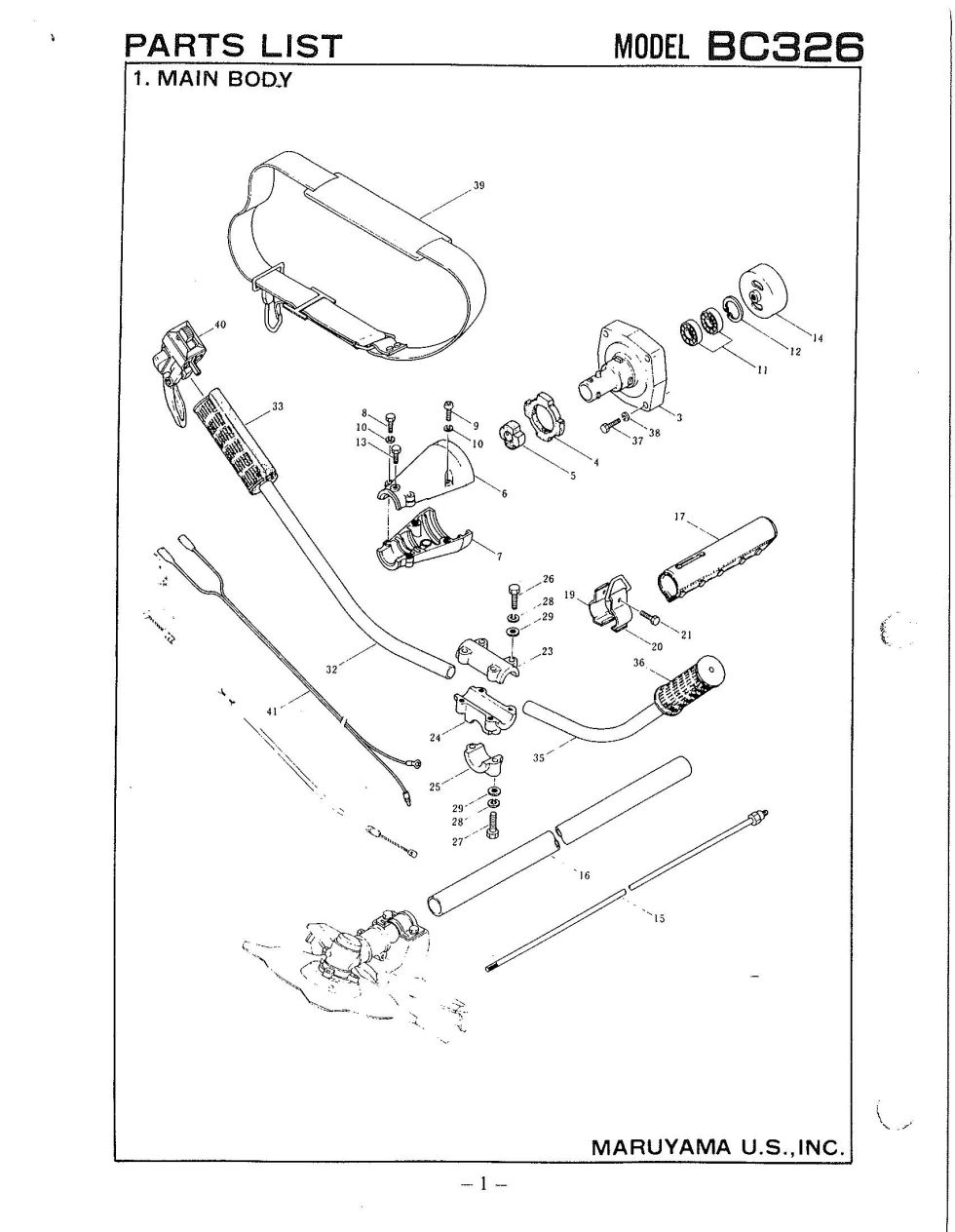

Main Body

Position number SKU Product title Price
3 211681 211681 - NLA BEARING CASE
$35.99
4 211683 211683 - NLA BUFFER A
$17.99
5 211684 211684 - NLA BUFFER B
$13.99
6 211685 211685 - NLA OUTER TRANS PIPE
$19.99
7 211686 211686 - NS OUTER TRANS PIPE
$19.99
8 089749 089749 - Obsolete - USE PART #092561 No Longer Available
Obsolete.
9 081416 081416 - SCREW
$2.99
10 012501 012501 - SPRING WASHER
$2.99
11 151443 151443 - USE: 55183
$23.99
12 055185 055185 - SNAP RING
$2.99
13 089738 089738 - BOLT
$2.99
14 211682 211682 - NLA CLUTCH DRUM
$34.99
15 211687 211687 - NLA INNER TRANS SHAF
$40.99
16 211689 211689 - NLA OUTER TRANS PIPE
$104.99
17 211887 211887 - NLA WAIST PAD
$18.99
19 210450 210450 - HANGING BRACKET A
$14.99
20 210452 210452 - HANGING BRACKET B
$14.99
23 059242 059242 - HANDLE BRACKET A
$16.99
25 059244 059244 - HANDLE BRACKET C
$16.99
27 089746 089746 - BOLT - BC184/241/3
$6.99
28 012502 012502 - SPRING WASHER
$2.99
29 013754 013754 - Washer (M6)
$0.81
32 054716 054716 - Obsolete - NS*** HANDLE No Longer Available
Obsolete.
33 212083 212083 - HANDLE KNOB
$12.99
39 212060 212060 - NLA SHOULDER STR No Longer Available
Obsolete.
40 212084 212084 - NLA THROTTLE LEVER
$31.99
41 996230 996230 - NLA LEAD WIRE
$32.99
