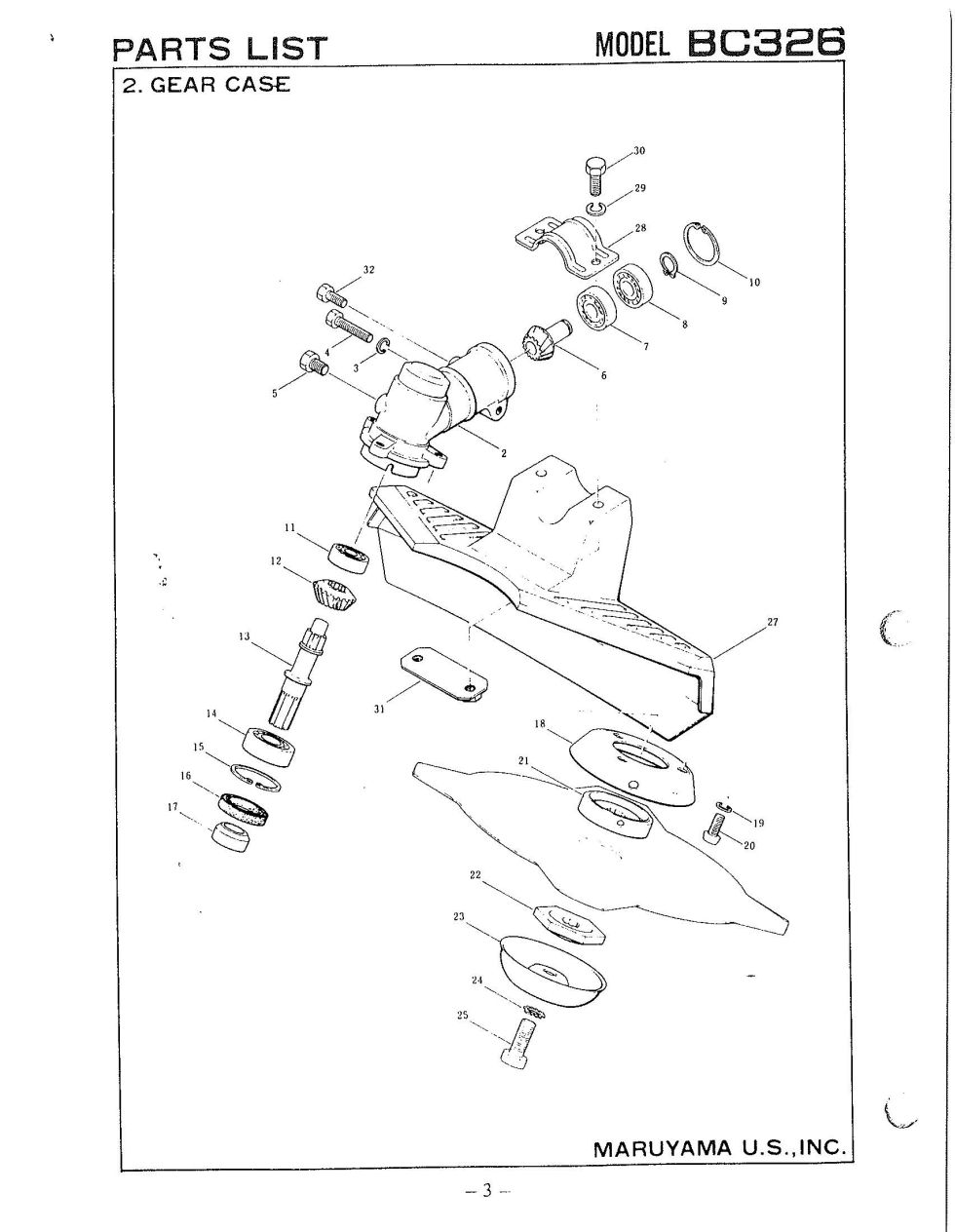

Gearcase

Position number SKU Product title Price
1 211691 211691 - NLA GEAR CASE ASSY
$176.99
2 211693 211693 - NLA GEAR CASE
$42.99
3 012502 012502 - SPRING WASHER
$2.99
4 082105 082105 - BOLT
$2.99
5 082092 082092 - BOLT
$2.99
6 211695 211695 - NS PINION GEAR (obsolete)
use part #227102
$48.99
7 014490 014490 - BEARING
$18.99
8 106933 106933 - BEARING
$12.99
9 014210 014210 - C-SHAPED SNAP RING 1
$2.99
10 054676 054676 - SNAP RING
$2.99
11 211696 211696 - NLA BEARING
$16.99
12 211698 211698 - NS GEAR (obsolete)
use part #227102
$48.99
13 012501 012501 - SPRING WASHER
$2.99
14 022009 022009 - BEARING
$19.99
15 016732 016732 - C SHAPED SNAP RING 3
$2.99
16 211818 211818 - OIL SEAL
$10.99
17 054816 054816 - Obsolete - USE PART #210309 No Longer Available
Obsolete.
18 211694 211694 - NLA STABILIZER
$10.99
21 211699 211699 - NLA BOSS A
$18.99
22 210307 210307 - NLA BOSS B
$21.99
23 210308 210308 - USE: 902311
$17.99
24 210309 210309 - TOOTHED WASHER
$2.99
25 089432 089432 - Obsolete - USE PART #089431 No Longer Available
Obsolete.
27 210311 210311 - NLA SAFETY COVER
$28.99
28 210312 210312 - NLA BRACKET
$2.99
30 089746 089746 - BOLT - BC184/241/3
$6.99
31 210313 210313 - SAFETY COVER BRACKET
$6.99
