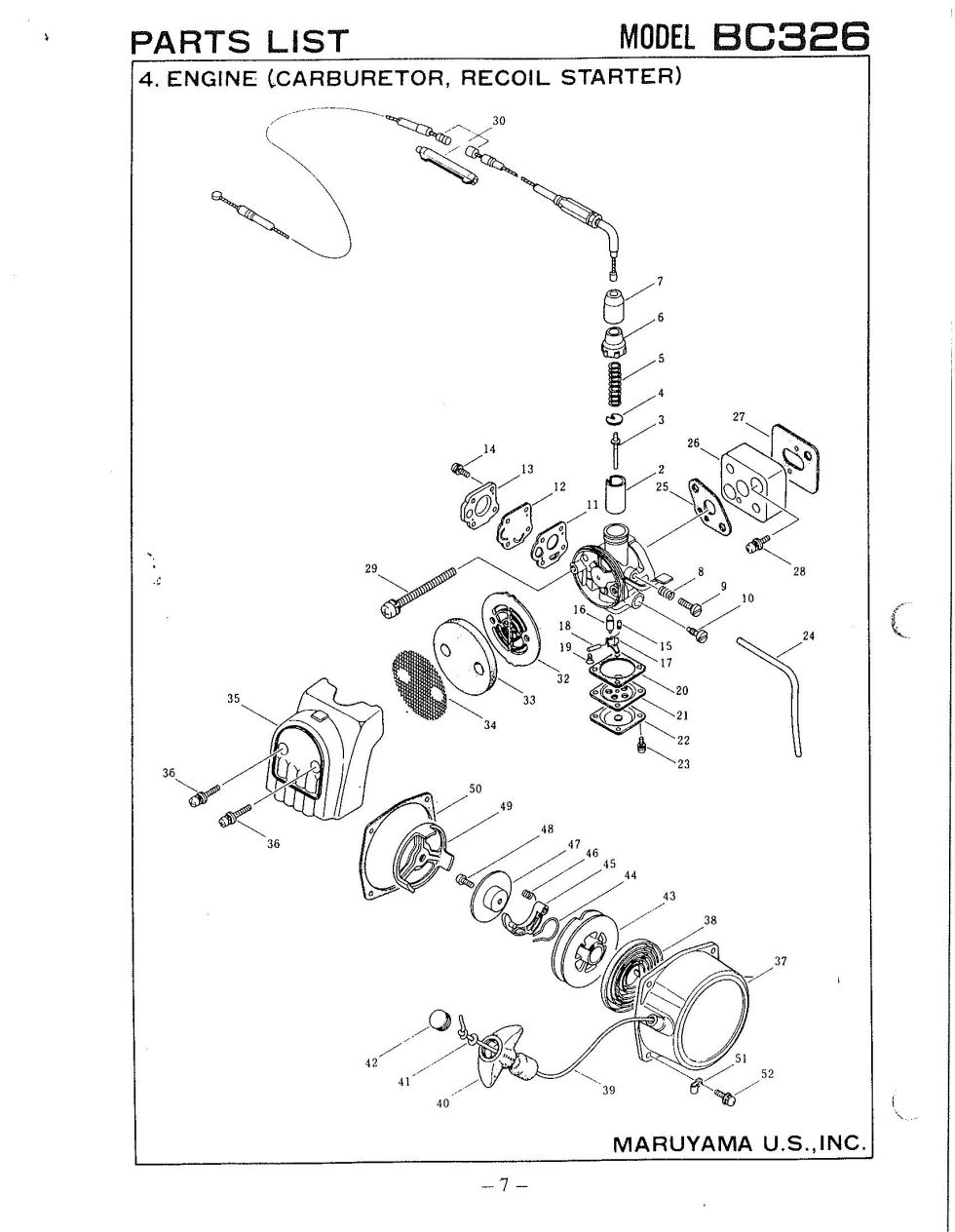

Engine (Carburetor, Recoil Starter)

Position number SKU Product title Price
1 996234 996234 - NLA CARBURETOR ASSY
$165.99
2 996235 996235 - THROTTLE VALVE
$27.99
3 996236 996236 - NLA JET NEEDLE ASSY
$23.99
4 972850 972850 - NLA SPRING RETAINER
$5.99
5 996237 996237 - NLA SPRING
$10.99
6 977566 977566 - NLA MIXING CHAMBER C
$17.99
7 260058 260058 - NLA AIR SEAL
$11.99
8 991097 991097 - NLA SPRING
$8.99
9 991096 991096 - NLA THROTTLE ADJ SCR
$14.99
10 977567 977567 - NLA MAIN ADJUSTING N
$19.99
11 972865 972865 - USE: 990325
$2.99
12 972864 972864 - USE: 990324 No Longer Available
Obsolete.
13 972863 972863 - NLA PUMP COVER ASSY
$21.99
14 972887 972887 - SCREW
$2.99
15 972859 972859 - INLET VALVE SPRING
$10.99
16 972858 972858 - NLA FLOAT VALVE NEED
$27.99
17 972857 972857 - NLA FLOAT ARM
$10.99
18 972856 972856 - NLA FLOAT PIN
$11.99
19 972860 972860 - NLA FLOAT PIN SET SC
$2.99
20 977533 977533 - USE: 979680
$2.99
21 972861 972861 - DIAPHRAGM No Longer Available
Obsolete.
22 972866 972866 - NLA MAIN DIAPHRAGM C
$38.99
23 971814 971814 - SCREW
$2.99
24 977528 977528 - USE: 972815
$2.99
25 972836 972836 - NLA CARBURETOR PACKI
$17.99
26 977308 977308 - NLA INSULATOR
$18.99
27 972838 972838 - NLA INTAKE PACKING
$2.99
28 977305 977305 - NLA SCREW
$2.99
29 977534 977534 - NLA SCREW
$2.99
30 996238 996238 - NLA THROTTLE WIRE
$37.99
32 991098 991098 - NLA ELEMENT HOLDER
$10.99
33 972844 972844 - ELEMENT
$15.99
34 972842 972842 - NLA STEEL NET
$17.99
35 991087 991087 - NLA AIR CLEANER COVE
$16.99
36 990125 990125 - NLA SCREW
$2.99
37 977467 977467 - NLA RECOIL STARTER A
$47.99
38 977515 977515 - USE: 978824
$12.99
39 977516 977516 - STARTER ROPE
$23.99
40 977517 977517 - STARTER KNOB
$18.99
41 977519 977519 - NLA WASHER
$2.99
42 977518 977518 - KNOB CAP
$9.99
43 977514 977514 - NLA REEL
$45.99
44 972831 972831 - NLA FRICTION SPRING
$6.99
45 977439 977439 - USE: 591588
$7.99
46 972834 972834 - NLA RETURN SPRING
$15.99
47 977440 977440 - USE: 972805
$5.99
48 977441 977441 - SCREW
$10.99
49 972835 972835 - NLA STARTER PULLEY
$23.99
50 977505 977505 - NLA STARTER PACKING
$2.99
51 972876 972876 - NLA CLAMP
$2.99
52 972889 972889 - SCREW
$2.99
