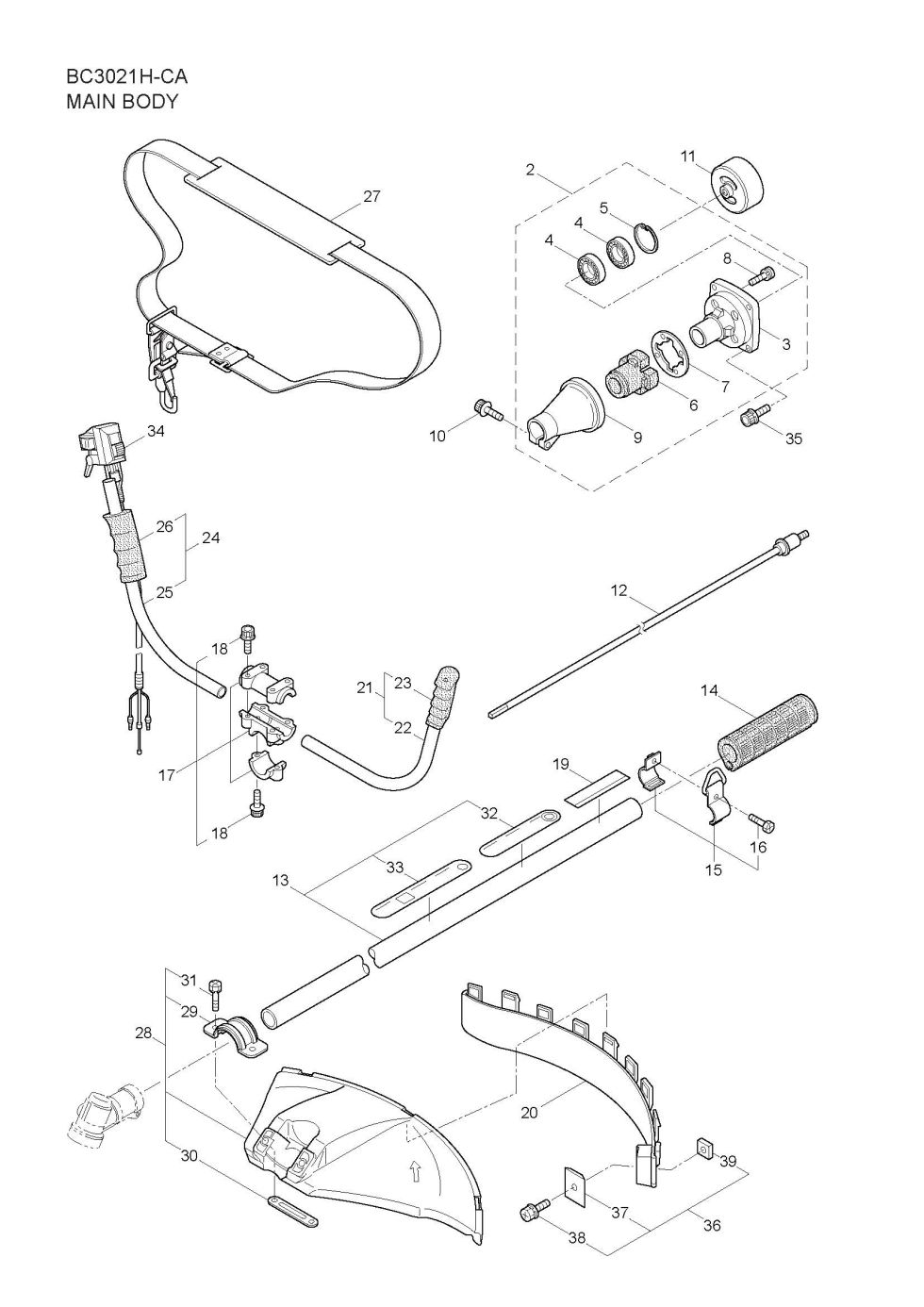

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BC3021H-CA. You have selected the Main Body diagram for the Maruyama BC3021H-CA Trimmers and Brushcutters. Below you will find an interactive part diagram for the BC3021H-CA Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BC3021H-CA parts not shown in this diagram you may select from one of the other BC3021H-CA part assemblies or select a different Trimmers and Brushcutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Trimmers and Brushcutters parts.

Position number SKU Product title Price
2 215512 215512 - CLUTCH CASE ASSY
$150.99
3 214592 214592 - BEARING CASE
$39.99
4 214161 214161 - USE: 102680
$13.99
5 054676 054676 - SNAP RING
$2.99
6 214162 214162 - BUFFER
$28.99
7 214163 214163 - WASHER
$11.99
8 092033 092033 - SCREW(M5X15)
$2.99
9 214593 214593 - DRIVESHAFT TUBE ADAP
$41.99
10 261246 261246 - CAP SCREW M5X25
$2.99
11 054677 054677 - CLUTCH DRUM
$32.99
12 219268 219268 - DRIVESHAFT ASSY
$52.99
13 218711 218711 - DRIVESHAFT HOUSING
$74.99
14 215532 215532 - SHAFT GRIP
$24.99
15 054691 054691 - HANGING BRACKET ASSY
$13.99
16 089738 089738 - BOLT
$2.99
17 216935 216935 - HANDLE BRACKET ASSY
$30.99
21 225225 225225 - HANDLE(A) ASSY
$30.99
22 219362 219362 - NS HANDLE(A)
$23.99
23 218467 218467 - NLA HANDLE GRIP
$18.99
24 225227 225227 - HANDLE(B) ASSY
$29.99
25 219363 219363 - NS HANDLE(B)
$21.99
26 218468 218468 - HANDLE GRIP
$22.99
27 220533 220533 - SHOULDER STRAP ASSY
$28.99
28 228302 228302 - Safety Cover Ass'y
$30.99
29 227822 227822 - BRACKET
$2.99
30 227819 227819 - THREADED BRACKET
$2.99
31 092555 092555 - BOLT(M6X30)
$2.99
33 221502 221502 - LABEL
$14.99
34 221784 221784 - THROTTLE LEVER
$75.99
35 261250 261250 - BOLT M5X20
$2.99
37 227823 227823 - BLADE CUTTER
$6.99
38 817002 817002 - BOLT
$2.99
39 228325 228325 - Nut
$2.99
