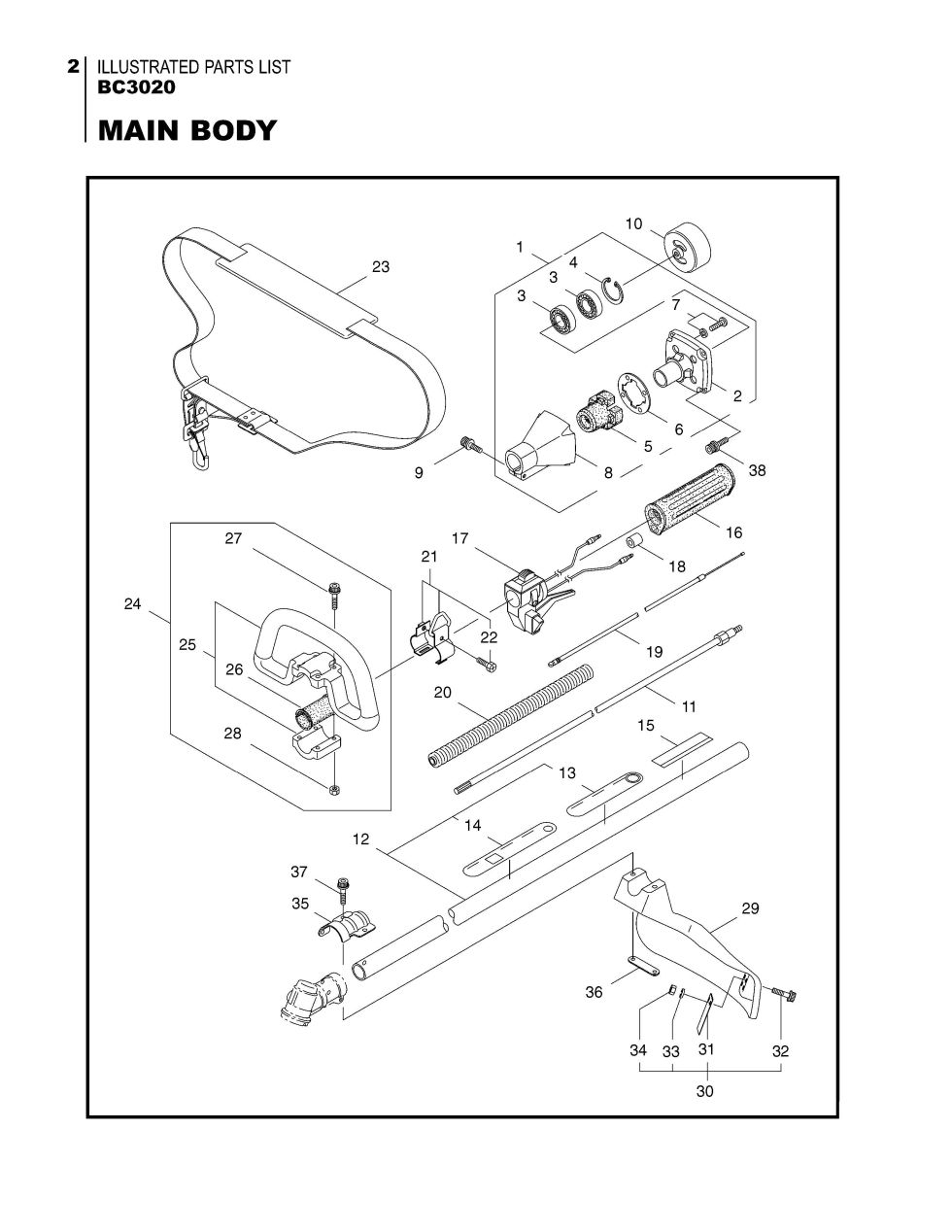

Main Body

Position number SKU Product title Price
1 219469 219469 - CLUTCH CASE ASSY
$136.99
2 218879 218879 - BEARING CASE
$29.99
3 261743 261743 - USE: 102680
$21.99
4 054676 054676 - SNAP RING
$2.99
5 214162 214162 - BUFFER
$28.99
6 214163 214163 - WASHER
$11.99
7 092033 092033 - SCREW(M5X15)
$2.99
8 218880 218880 - DRIVESHAFT TUBE ADAP
$36.99
9 261246 261246 - CAP SCREW M5X25
$2.99
10 219083 219083 - CLUTCH DRUM
$28.99
11 219268 219268 - DRIVESHAFT ASSY
$52.99
12 220078 220078 - DRIVESHAFT HOUSING
$114.99
13 221501 221501 - LABEL
$9.99
14 221502 221502 - LABEL
$14.99
15 225972 225972 - LABEL
$21.99
16 215532 215532 - SHAFT GRIP
$24.99
17 221465 221465 - THROTTLE TRIGGER
$62.99
18 214083 214083 - OUTER GUIDE
$2.99
19 213444 213444 - THROTTLE CABLE
$13.99
20 213548 213548 - PLASTIC TUBE
$2.99
21 054691 054691 - HANGING BRACKET ASSY
$13.99
22 089738 089738 - BOLT
$2.99
23 220533 220533 - SHOULDER STRAP ASSY
$28.99
24 215601 215601 - LOOP HANDLE ASSY
$27.99
25 214982 214982 - HANDLE ASSY
$28.99
26 213171 213171 - PACKING
$8.99
27 215608 215608 - CAP SCREW
$2.99
28 089846 089846 - NUT M5 (obsolete)
use part #081027
$2.99
29 225961 225961 - SAFETY COVER
$27.99
30 226062 226062 - STRING CUTTER ASSY
$11.99
31 222900 222900 - NLA STRING CUTTER
$8.99
32 261233 261233 - SCREW
$2.99
33 089901 089901 - WASHER
$2.99
35 225962 225962 - BRACKET
$7.99
36 225963 225963 - THREADED BRACKET
$2.99
37 261612 261612 - BOLT
$2.99
38 261250 261250 - BOLT M5X20
$2.99
