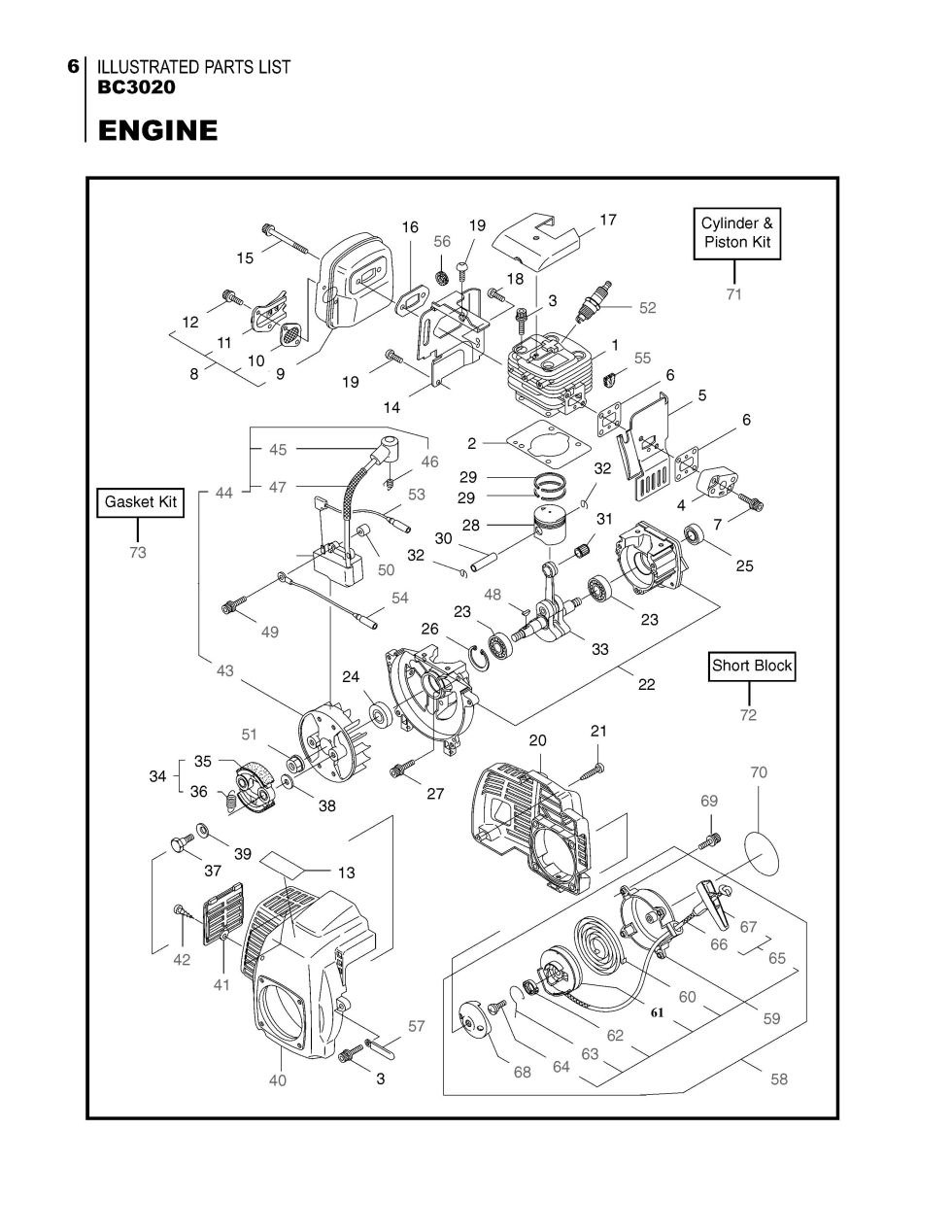

Engine

Position number SKU Product title Price
1 268687 268687 - NLA CYLINDER KIT (CH
$175.99
2 268231 268231 - GASKET
$2.99
3 261250 261250 - BOLT M5X20
$2.99
4 266317 266317 - INSULATOR
$28.99
5 268233 268233 - AIR DUCT
$36.99
6 261171 261171 - GASKET
$2.99
7 268563 268563 - CAP SCREW
$2.99
8 268996 268996 - MUFFLER ASSY.
$36.99
9 269651 269651 - MUFFLER
$28.99
10 267056 267056 - SPARK ARRESTER
$7.99
11 267053 267053 - TAIL
$7.99
12 265107 265107 - BOLT
$2.99
13 280288 280288 - NLA LABEL
$2.99
14 268235 268235 - PLATE
$19.99
15 266402 266402 - CAP SCREW
$5.99
16 268019 268019 - GASKET
$5.99
17 268468 268468 - PROTECTOR
$7.99
19 268195 268195 - USE: 285189
$2.99
20 268238 268238 - CYLINDER COVER
$24.99
21 266000 266000 - TAPPING SCREW
$2.99
22 268241 268241 - CRANKCASE
$50.99
23 261491 261491 - BEARING
$21.99
24 262198 262198 - NLA OIL SEAL
$5.99
25 261386 261386 - OIL SEAL
$2.99
26 055185 055185 - SNAP RING
$2.99
27 261612 261612 - BOLT
$2.99
28 268782 268782 - USE: 283380
$37.99
29 265067 265067 - PISTON RING
$13.99
30 265068 265068 - PISTON PIN
$8.99
31 265225 265225 - NEEDLE BEARING
$23.99
32 261393 261393 - PISTON PIN CLIP
$2.99
33 265141 265141 - CRANKSHAFT/CONNECTIN
$92.99
34 268439 268439 - CLUTCH ASSY
$37.99
35 267342 267342 - CLUTCH SHOE
$23.99
36 267345 267345 - CLUTCH SPRING
$10.99
37 264505 264505 - CLUTCH BOLT
$5.99
38 261189 261189 - WASHER
$2.99
39 261777 261777 - WAVE WASHER
$2.99
40 268263 268263 - FAN COVER
$29.99
41 268389 268389 - COVER
$11.99
42 268390 268390 - SCREW
$2.99
43 269656 269656 - NLA ROTOR FAN (obsolete)
use part #269807
$30.99
44 269713 269713 - IGNITION COIL ASSY.
$82.99
45 269714 269714 - PLUG BOOT
$2.99
46 269715 269715 - CONNECTOR
$2.99
47 269716 269716 - INSULATOR
$2.99
48 261076 261076 - WOODRUFF KEY
$2.99
49 261417 261417 - ROTOR NUT
$8.99
50 268380 268380 - USE: 280381
$2.99
51 261256 261256 - BOLT M4X25
$2.99
52 261200 261200 - SPARK PLUG
$20.99
53 269722 269722 - LEAD
$6.99
54 268044 268044 - LEAD
$5.99
55 261202 261202 - GROMMET
$2.99
56 268036 268036 - GROMMET
$2.99
57 264588 264588 - CLAMP
$2.99
58 268161 268161 - RECOIL STARTER ASSY
$30.99
59 268163 268163 - RECOIL ASSY
$28.99
60 267214 267214 - SPIRAL SPRING
$15.99
61 268050 268050 - PULLEY
$19.99
62 267215 267215 - COLLAR
$2.99
63 267216 267216 - SWING ARM
$2.99
64 267213 267213 - SCREW
$2.99
65 268202 268202 - ROPE ASSY
$9.99
66 268201 268201 - STARTER ROPE
$2.99
67 267219 267219 - STARTER GRIP
$2.99
68 267098 267098 - STARTER PULLEY
$2.99
69 265726 265726 - SCREW
$2.99
70 280135 280135 - LABEL
$2.99
71 280531 280531 - NLA CYLINDER & PISTO
$201.99
72 850768 850768 - NLA SHORT BLOCK (CE3
$210.99
73 636697 636697 - GASKET KIT(CE ENGINE
$17.99
