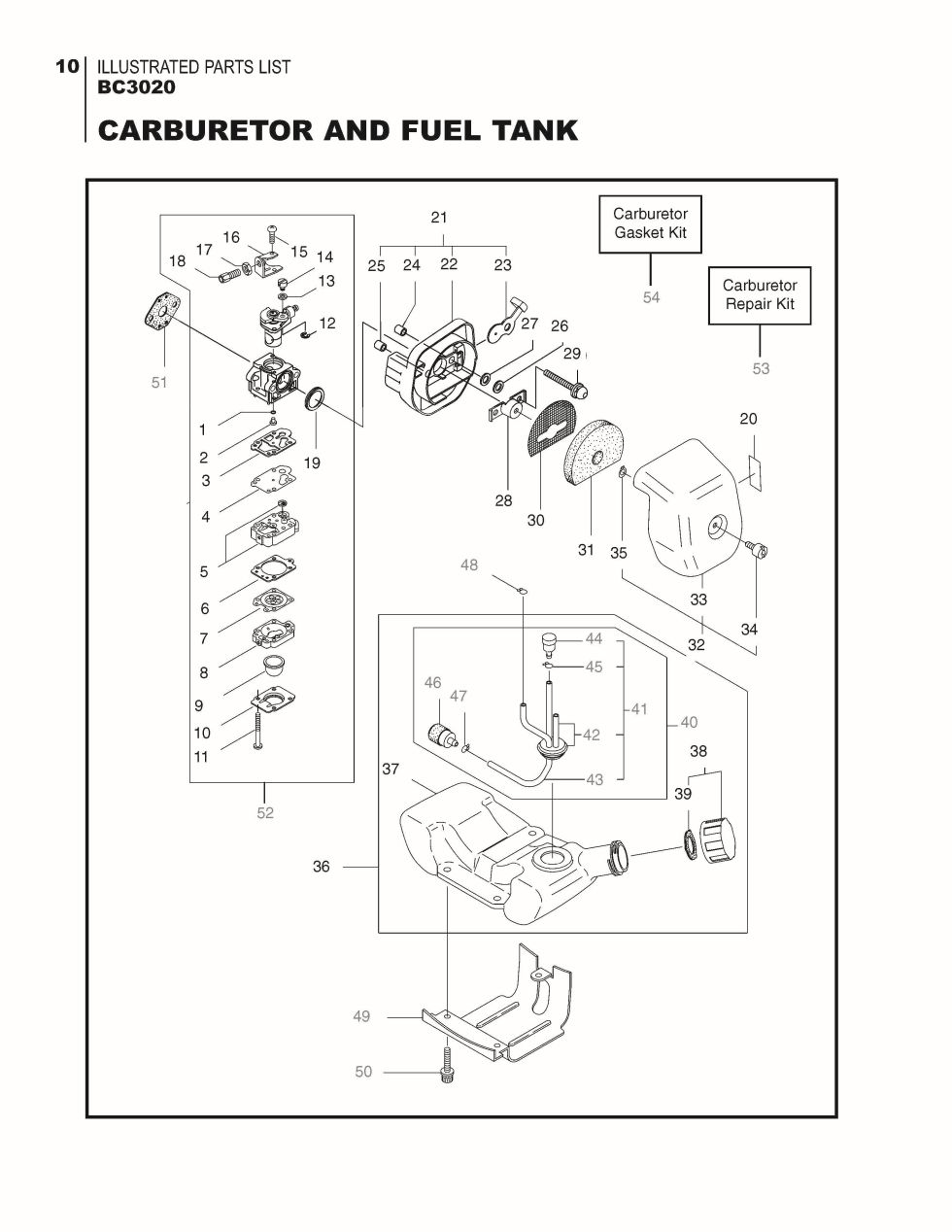

Carburetor and Fuel Tank

Position number SKU Product title Price
1 261871 261871 - O-RING
$2.99
2 269765 269765 - MAIN JET #36
$17.99
3 262995 262995 - GASKET
$13.99
4 262994 262994 - DIAPHRAGM FUEL PUMP
$18.99
5 263739 263739 - PUMP BODY
$49.99
6 262993 262993 - GASKET
$10.99
7 268501 268501 - USE: 283905
$11.99
8 262991 262991 - PURGE BODY
$23.99
9 261874 261874 - PRIMER
$19.99
10 262992 262992 - COVER PLATE
$11.99
11 262996 262996 - SCREW
$2.99
12 261876 261876 - E-RING
$2.99
13 264678 264678 - WASHER
$2.99
14 261658 261658 - SWIVEL
$5.99
15 260607 260607 - USE: 261875
$2.99
16 264677 264677 - BRACKET
$20.99
17 261878 261878 - NUT
$2.99
18 263994 263994 - ADJUSTER
$16.99
19 261657 261657 - PACKING
$10.99
20 261352 261352 - DECAL
$2.99
21 268055 268055 - AIR FILTER CASE ASSY
$19.99
22 268056 268056 - AIR FILTER CASE
$12.99
23 268057 268057 - VALVE
$11.99
24 268412 268412 - SLEEVE
$2.99
25 268157 268157 - SLEEVE
$2.99
26 263345 263345 - PACKING
$2.99
27 263942 263942 - WASHER
$2.99
28 263815 263815 - STAY
$8.99
29 264016 264016 - CAP SCREW M5X60
$2.99
30 265026 265026 - SCREEN
$2.99
31 265027 265027 - FOAM ELEMENT
$5.99
32 268058 268058 - AIR FILTER COVER ASS
$24.99
33 268059 268059 - AIR FILTER COVER
$12.99
34 265742 265742 - USE: 286399
$5.99
35 261734 261734 - SNAP RING
$2.99
36 269721 269721 - FUEL TANK ASSY.
$50.99
37 269724 269724 - FUEL TANK
$33.99
39 261105 261105 - PACKING
$2.99
40 268062 268062 - FUEL PIPE PICK-UP AS
$32.99
41 268185 268185 - FUEL PIPE ASSY (obsolete)
use part #282539
$34.99
42 268497 268497 - FUEL PIPE & GROMMET
$23.99
43 262649 262649 - FUEL PIPE
$2.99
44 261590 261590 - BREATHER SUB ASSY
$12.99
45 261117 261117 - CLIP
$2.99
48 264784 264784 - USE: 261584
$15.99
49 268260 268260 - STAND
$8.99
50 261246 261246 - CAP SCREW M5X25
$2.99
51 269762 269762 - GASKET
$2.99
52 268994 268994 - CARBURETOR ASSY
$95.99
53 840859 840859 - CARBURETOR REPAIR KI
$30.99
54 840860 840860 - CARBURETOR GASKET KI
$19.99
