All Diagrams for this Model

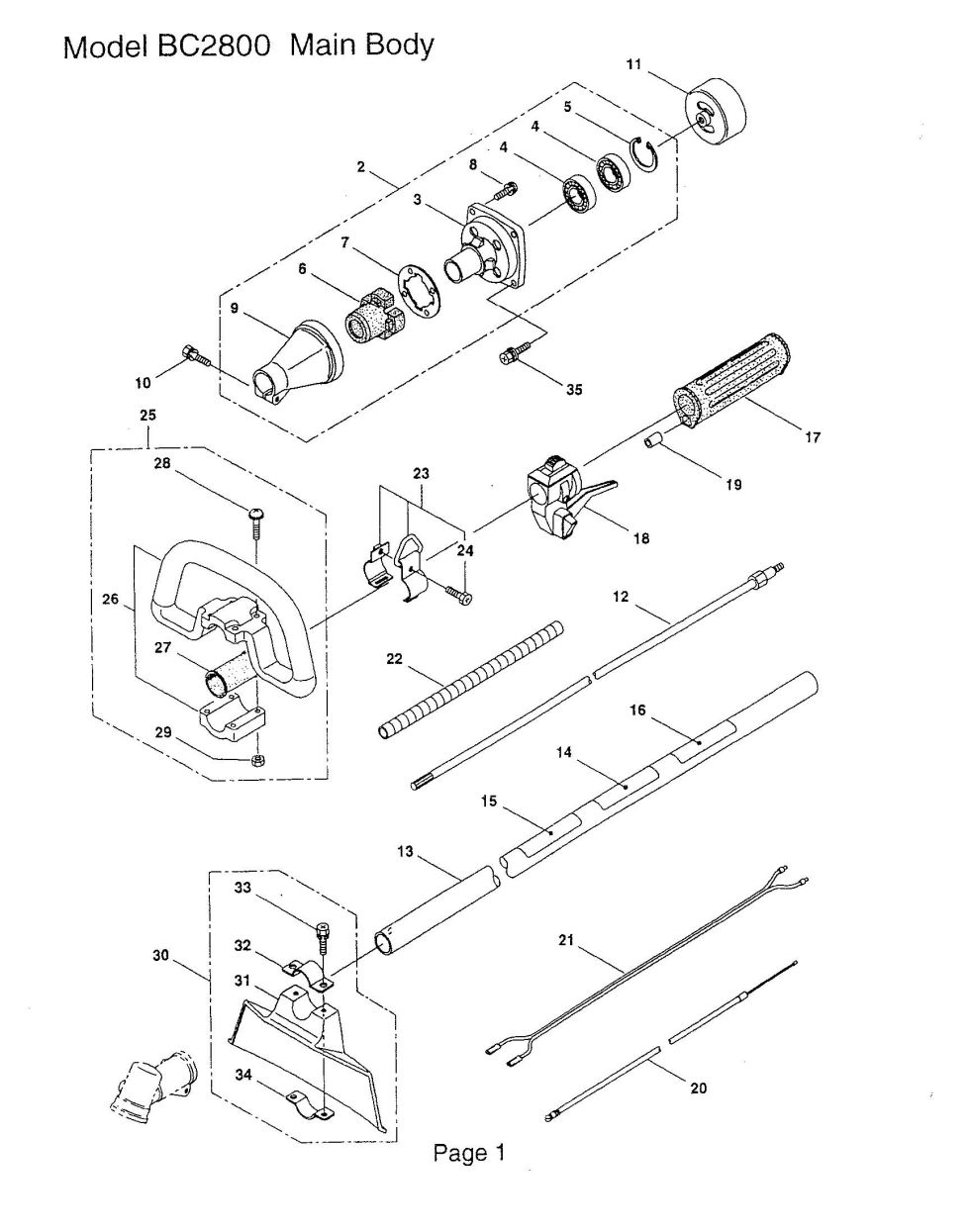

Main Body

Position number SKU Product title Price
2 215512 215512 - CLUTCH CASE ASSY
$150.99
3 214592 214592 - BEARING CASE
$39.99
4 214161 214161 - USE: 102680
$13.99
5 054676 054676 - SNAP RING
$2.99
6 214162 214162 - BUFFER
$28.99
7 214163 214163 - WASHER
$11.99
8 092033 092033 - SCREW(M5X15)
$2.99
9 214593 214593 - DRIVESHAFT TUBE ADAP
$41.99
10 092561 092561 - BOLT
$2.99
11 211465 211465 - NLA CLUTCH DRUM
$25.99
12 219268 219268 - DRIVESHAFT ASSY
$52.99
13 218711 218711 - DRIVESHAFT HOUSING
$74.99
14 215534 215534 - DECAL
$2.99
15 215535 215535 - LABEL
$13.99
17 215532 215532 - SHAFT GRIP
$24.99
19 214083 214083 - OUTER GUIDE
$2.99
20 213444 213444 - THROTTLE CABLE
$13.99
21 213445 213445 - NLA LEAD WIRE
$13.99
22 213548 213548 - PLASTIC TUBE
$2.99
23 054691 054691 - HANGING BRACKET ASSY
$13.99
24 089738 089738 - BOLT
$2.99
25 214224 214224 - HANDLE ASSY
$27.99
26 214982 214982 - HANDLE ASSY
$28.99
27 213171 213171 - PACKING
$8.99
28 092087 092087 - Obsolete - USE PART #222142 No Longer Available
Obsolete.
29 081027 081027 - NUT M5
$2.99
30 213842 213842 - SAFETY COVER ASSY -
$30.99
31 213843 213843 - NLA SAFETY COVER
$21.99
32 212995 212995 - NLA BRACKET (NO SUPE
$2.99
33 092577 092577 - BOLT
$2.99
34 212994 212994 - THREADED BRACKET
$2.99
35 092552 092552 - BOLT (M6X20)
$2.99
