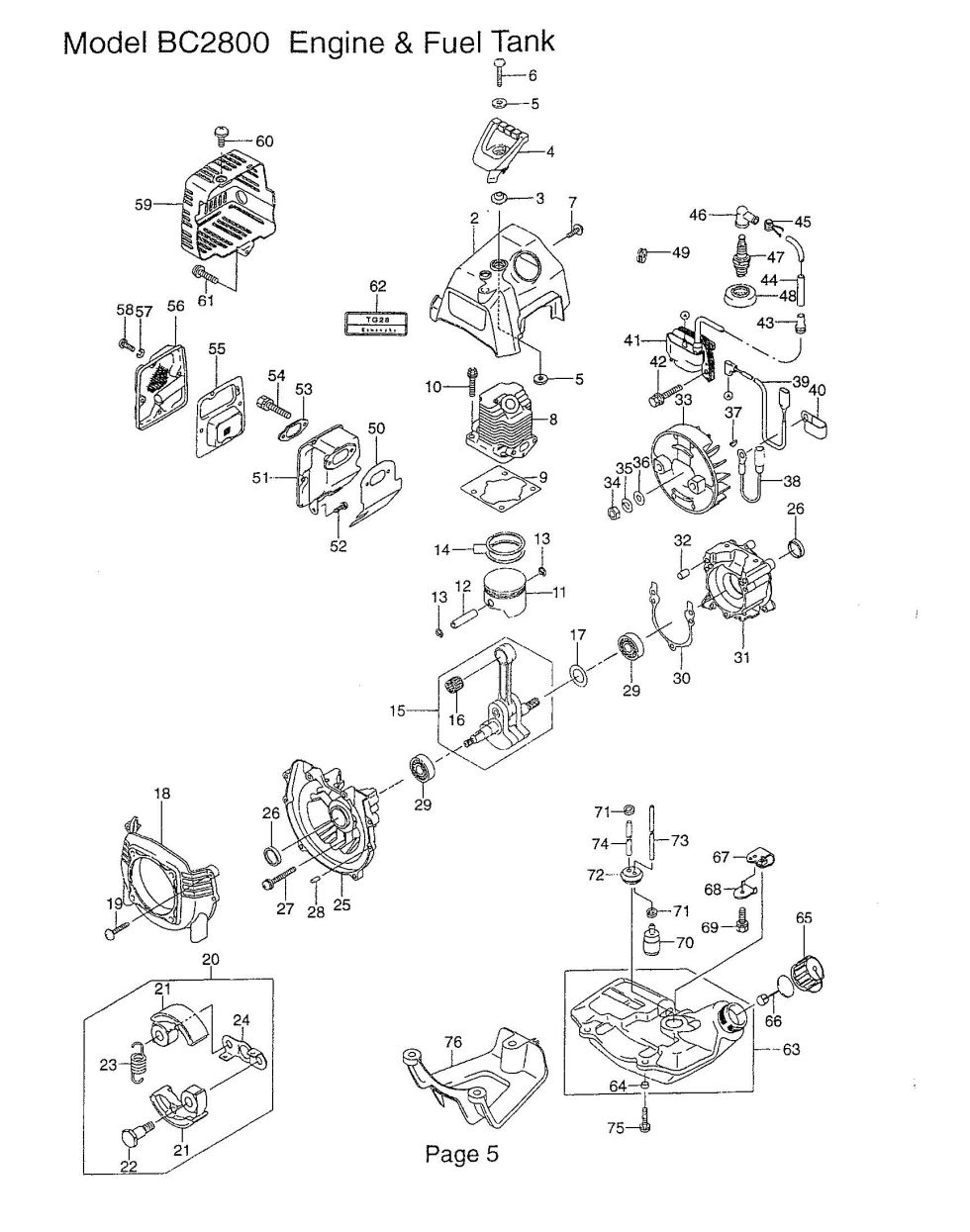

Home :: Parts Lookup :: Trimmers and Brushcutters :: BC2800 Engine and Fuel Tank breadcrumb_end

Model Type:

Model:

Assembly:

All Diagrams for this Model

Position number	SKU	Product title	Price
2	573285	573285 - NLA CYLINDER COVER	$41.99
3	594589	594589 - NLA SPACER	$5.99
4	573288	573288 - NLA GUARD	$6.99
5	575415	575415 - NLA WASHER	$6.99
6	594588	594588 - SCREW	$2.99
7	594590	594590 - NLA SCREW	$2.99
8	624255	624255 - NLA CYLINDER	$165.99
9	573282	573282 - NLA CYLINDER BASE GA	$11.99
10	573283	573283 - NLA BOLT	$2.99
11	575863	575863 - NLA PISTON	$66.99
12	575864	575864 - NLA PISTON PIN	$19.99
13	943474	943474 - WRIST PIN RETAINER	$2.99
14	911004	911004 - NLA PISTON RING SET	$23.99
15	624521	624521 - CRANKSHAFT	$190.99
16	624520	624520 - NEEDLE BEARING	$29.99
18	584434	584434 - NLA HOUSING	$101.99
19	943460	943460 - SCREW	$2.99
20	598436	598436 - CLUTCH ASSY	$83.99
21	598437	598437 - CLUTCH SHOE	$51.99
22	943646	943646 - NLA CLUTCH BOLT	$11.99
23	572810	572810 - CLUTCH SPRING	$16.99
24	597954	597954 - NLA PLATE	$24.99
26	573180	573180 - USE: 943146	$5.99
27	573179	573179 - USE: 943190	$2.99
28	911035	911035 - USE: 71100	$2.99
29	620783	620783 - NLA BEARING	$28.99
30	584433	584433 - GASKET	$11.99
31	573280	573280 - NLA CRANK CASE	$121.99
32	943349	943349 - DOWEL PIN	$2.99
33	624522	624522 - NLA FLYWHEEL	$202.99
34	943173	943173 - NUT	$2.99
35	901546	901546 - SPRING WASHER M8	$2.99
36	071190	071190 - WASHER	$2.99
37	911132	911132 - KEY	$8.99
38	996520	996520 - LEAD WIRE	$7.99
39	621027	621027 - NLA LEAD WIRE	$20.99
40	624524	624524 - CLAMP	$2.99
41	624523	624523 - NLA IGNITION COIL	$203.99
42	573271	573271 - NLA BOLT	$2.99
43	573275	573275 - NLA GROMMET	$2.99
44	573290	573290 - TUBE	$2.99
45	591533	591533 - SPRING	$2.99
46	591532	591532 - SPARK PLUG CAP	$19.99
47	573183	573183 - USE: 910519	$18.99
49	573273	573273 - NLA GROMMET	$5.99
50	624254	624254 - EXHAUST GASKET	$16.99
51	624533	624533 - NLA MUFFLER	$67.99
52	996332	996332 - SCREW	$2.99
53	573293	573293 - NLA WASHER	$2.99
54	573294	573294 - HEX HEAD BOLT	$2.99
55	624534	624534 - NLA BUFFER	$22.99
56	573296	573296 - NLA MUFFLER BODY	$40.99
57	071692	071692 - SPRING WASHER	$2.99
58	624535	624535 - NLA SCREW	$2.99
59	573297	573297 - MUFFLER COVER	$43.99
61	598435	598435 - NLA SCREW	$2.99
62	624543	624543 - LABEL	$7.99
63	624536	624536 - NLA FUEL TANK ASSY	$64.99
64	575440	575440 - COLLAR	$2.99
65	624251	624251 - USE: 625871	$24.99
66	591580	591580 - USE: 630564 (obsolete) use part #425442	$29.99
67	573300	573300 - TANK BRACKET	$8.99
68	573301	573301 - WASHER	$2.99
69	573302	573302 - NLA BOLT	$2.99
70	597947	597947 - NLA FUEL FILTER	$32.99
71	597948	597948 - USE: 649366	$2.99
72	597949	597949 - GROMMET	$18.99
73	624538	624538 - TUBE	$11.99
74	598434	598434 - NLA TUBE	$11.99
75	624537	624537 - SCREW	$5.99
76	573305	573305 - NLA STAND	$17.99
