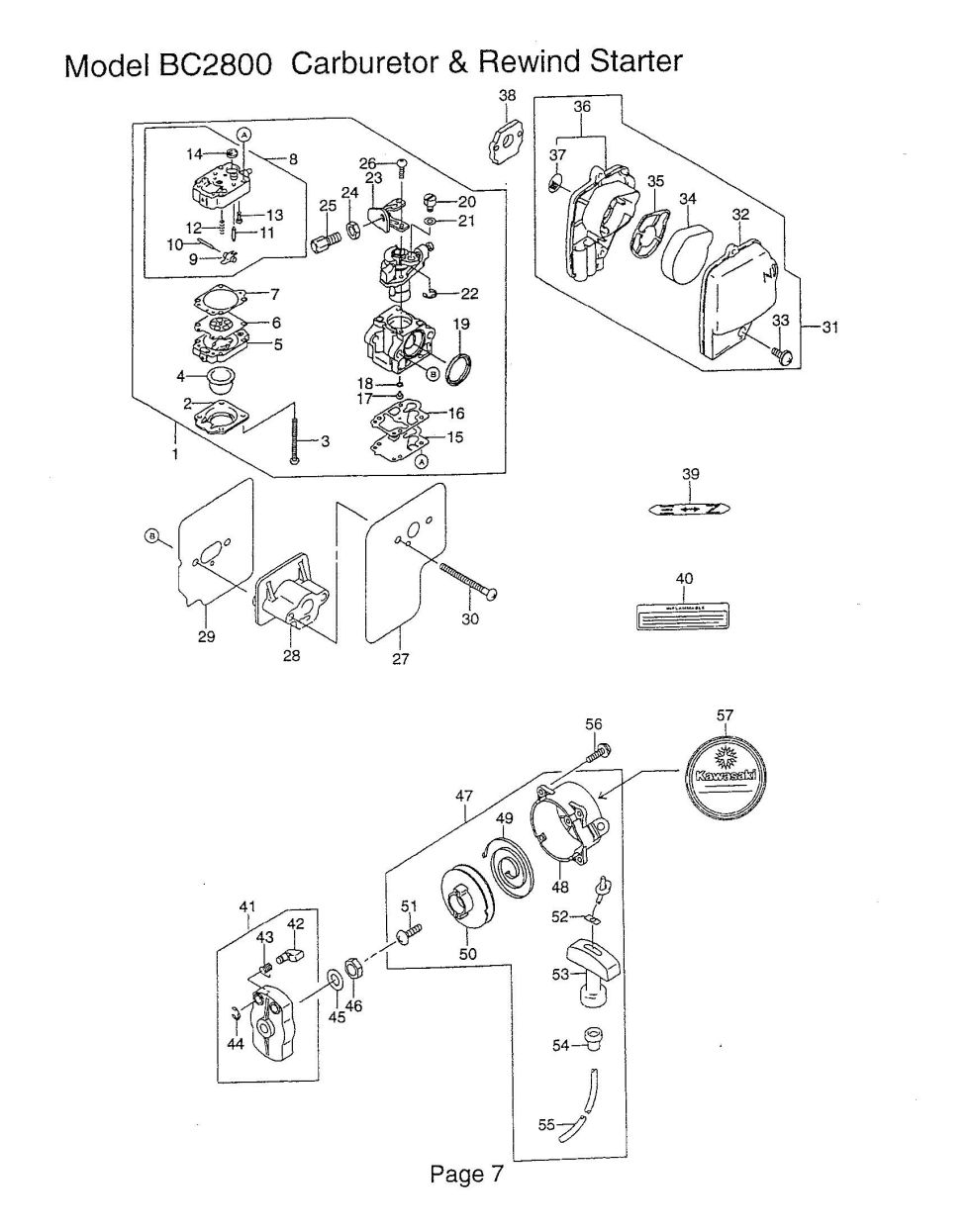

Carburetor and Recoil Assembly

Position number SKU Product title Price
1 624252 624252 - NLA CARBURETOR ASSY
$94.99
2 598409 598409 - COVER, PRIMER PUMP
$27.99
3 598417 598417 - SCREW
$2.99
4 577191 577191 - USE: 261874
$15.99
5 598413 598413 - BODY
$79.99
6 944219 944219 - USE: 261873
$12.99
7 598407 598407 - USE: 262993
$7.99
9 624429 624429 - LEVER
$19.99
10 624433 624433 - PIN
$8.99
11 624431 624431 - FLOAT VALVE
$18.99
12 624434 624434 - SPRING
$13.99
13 624432 624432 - SCREW
$11.99
14 624430 624430 - FILTER
$23.99
15 577185 577185 - DIAPHRAGM
$18.99
16 577184 577184 - GASKET
$22.99
18 577182 577182 - USE: 261871
$8.99
19 624528 624528 - NLA PACKING
$2.99
20 598415 598415 - ARM
$21.99
21 624532 624532 - WASHER
$7.99
22 577175 577175 - SNAP RING
$8.99
23 624525 624525 - BRACKET
$35.99
24 624530 624530 - USE: 261878
$2.99
25 598418 598418 - SCREW
$14.99
26 577179 577179 - SCREW
$8.99
27 624253 624253 - NLA CARBURETOR GASKE
$13.99
28 624526 624526 - NLA INSULATOR BLOCK
$31.99
29 584747 584747 - NLA INSULATOR GASKET
$19.99
31 575431 575431 - NLA AIR FILTER ASSY
$22.99
32 575432 575432 - NLA AIR FILTER COVER
$21.99
33 944137 944137 - SCREW
$2.99
34 575433 575433 - NLA AIR FILTER ELEME
$9.99
35 575435 575435 - NLA AIR FILTER PLATE
$2.99
36 575434 575434 - NLA AIR FILTER BASE
$30.99
37 575436 575436 - NLA SCREEN
$2.99
38 577161 577161 - NLA SPACER
$19.99
39 598438 598438 - NLA LABEL
$2.99
41 573320 573320 - NLA STARTING PULLEY
$27.99
42 584436 584436 - PAWL
$14.99
43 573319 573319 - RETURN SPRING
$11.99
44 944226 944226 - USE: 13525
$2.99
45 071190 071190 - WASHER
$2.99
46 943173 943173 - NUT
$2.99
47 624540 624540 - RECOIL STARTER
$71.99
48 624539 624539 - NLA STARTER HOUSING
$49.99
49 572955 572955 - SPRING
$31.99
50 572954 572954 - REEL
$27.99
51 624541 624541 - NLA SCREW
$7.99
52 944502 944502 - WASHER
$8.99
53 594606 594606 - NLA STARTER GRIP
$19.99
54 998438 998438 - ROPE GUIDE
$17.99
55 572956 572956 - NLA ROPE
$18.99
56 598435 598435 - NLA SCREW
$2.99
57 624542 624542 - LABEL
$10.99
