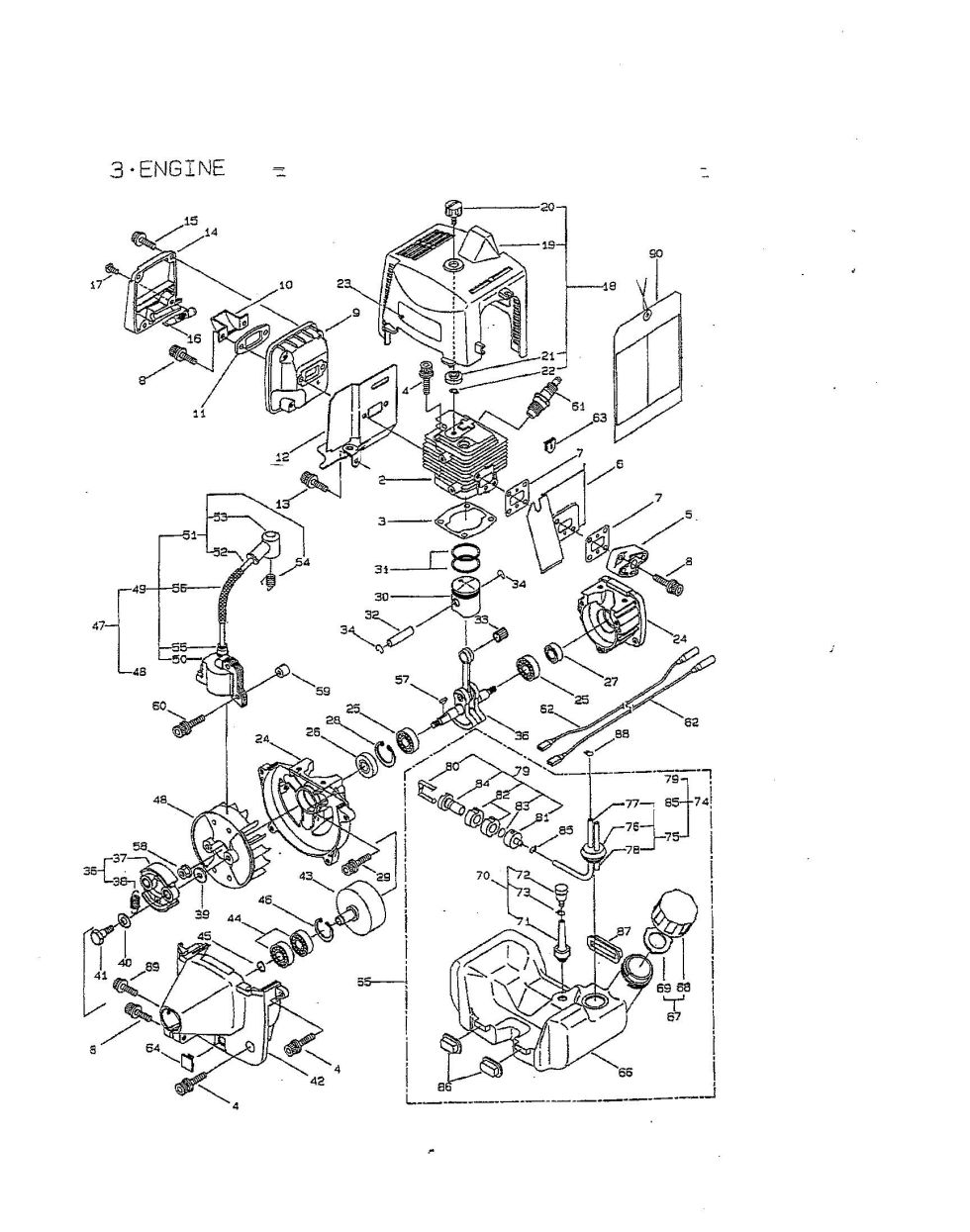

Engine

Position number SKU Product title Price
1 262417 262417 - NLA AE260C-ENGINE AS
$430.99
2 261472 261472 - CYLINDER
$131.99
3 261474 261474 - USE: 262200
$2.99
4 261250 261250 - BOLT M5X20
$2.99
5 261938 261938 - INSULATOR ASSY
$18.99
6 261476 261476 - HEAT SHIELD
$19.99
7 261171 261171 - GASKET
$2.99
8 261246 261246 - CAP SCREW M5X25
$2.99
9 262393 262393 - NLA MUFFLER BODY
$30.99
10 261368 261368 - PLATE
$17.99
11 261986 261986 - SHIELD
$7.99
12 261478 261478 - GASKET ASSY
$21.99
13 261607 261607 - BOLT M5X16
$2.99
14 262394 262394 - NLA MUFFLER COVER (n
$19.99
16 262395 262395 - SPARK ARRESTER M-LIN
$18.99
17 089530 089530 - SCREW(M3X10)
$2.99
18 261483 261483 - USE: 264127
$23.99
19 261484 261484 - USE: 263969
$18.99
20 261018 261018 - KNOB
$7.99
21 261020 261020 - SPACER
$2.99
22 261734 261734 - SNAP RING
$2.99
23 262100 262100 - LABEL
$5.99
24 261486 261486 - CRANKCASE
$120.99
25 261491 261491 - BEARING
$21.99
26 262198 262198 - NLA OIL SEAL
$5.99
27 262197 262197 - USE: 261386 No Longer Available
Obsolete.
28 055185 055185 - SNAP RING
$2.99
29 261612 261612 - BOLT
$2.99
30 261494 261494 - PISTON
$29.99
31 261496 261496 - PISTON RING
$13.99
32 261497 261497 - PISTON PIN
$17.99
33 261037 261037 - NEEDLE BEARING
$15.99
34 261576 261576 - CIRCLIP
$2.99
35 261499 261499 - USE: 265197
$142.99
36 261405 261405 - NLA CLUTCH ASSY.
$25.99
37 261406 261406 - NLA CLUTCH SHOE
$17.99
38 262203 262203 - USE: 263614
$5.99
39 261189 261189 - WASHER
$2.99
40 261777 261777 - WAVE WASHER
$2.99
41 261056 261056 - NLA CLUTCH BOLT
$2.99
42 262406 262406 - NLA CLUTCH DRUM CASE
$66.99
43 262433 262433 - NLA DRUM
$39.99
44 261743 261743 - USE: 102680
$21.99
45 014210 014210 - C-SHAPED SNAP RING 1
$2.99
46 054676 054676 - SNAP RING
$2.99
47 261357 261357 - MAGNETO ASSY
$149.99
48 261356 261356 - ROTOR
$69.99
49 261069 261069 - IGNITION COIL ASSY
$106.99
50 261070 261070 - IGNITION COIL
$96.99
51 261744 261744 - USE: 267403 (obsolete)
use part #267403
$23.99
52 261071 261071 - NLA IGNITION CABLE
$10.99
53 261074 261074 - PLUG CAP
$13.99
54 261075 261075 - CONNECTOR
$2.99
55 261072 261072 - CAP
$2.99
56 261073 261073 - TUBE
$8.99
57 261076 261076 - WOODRUFF KEY
$2.99
58 261417 261417 - ROTOR NUT
$8.99
59 261078 261078 - NLA SPACER -
$2.99
60 261256 261256 - BOLT M4X25
$2.99
61 261200 261200 - SPARK PLUG
$20.99
62 261772 261772 - LEAD
$2.99
63 261202 261202 - GROMMET
$2.99
64 261786 261786 - NLA GROMMET
$2.99
65 261962 261962 - NLA FUEL TANK AS (obsolete)
use part #264748
$89.99
67 261584 261584 - FUEL TANK CAP ASSY
$15.99
68 261578 261578 - USE: 261104
$7.99
69 261105 261105 - PACKING
$2.99
70 261696 261696 - BREATHER ASSY
$8.99
71 261697 261697 - GROMMET
$13.99
72 261590 261590 - BREATHER SUB ASSY
$12.99
73 261698 261698 - CLIP
$2.99
74 261846 261846 - USE: 265752
$19.99
75 261688 261688 - USE: 264031
$9.99
76 261115 261115 - USE: 266955 (obsolete)
use part #266955
$17.99
77 261690 261690 - FUEL PIPE (obsolete)
use part #262649
$2.99
78 261114 261114 - NLA RETURN PIPE
$7.99
79 261797 261797 - NLA FUEL FILTER ASSY
$12.99
80 261798 261798 - NS CLIP
$2.99
81 261799 261799 - NS BODY
$8.99
82 261800 261800 - NLA FILTER
$2.99
83 261801 261801 - NS PACKING
$2.99
84 261802 261802 - RETAINER
$6.99
85 261117 261117 - CLIP
$2.99
86 261118 261118 - PAD
$2.99
87 261119 261119 - PAD
$2.99
89 261233 261233 - SCREW
$2.99
