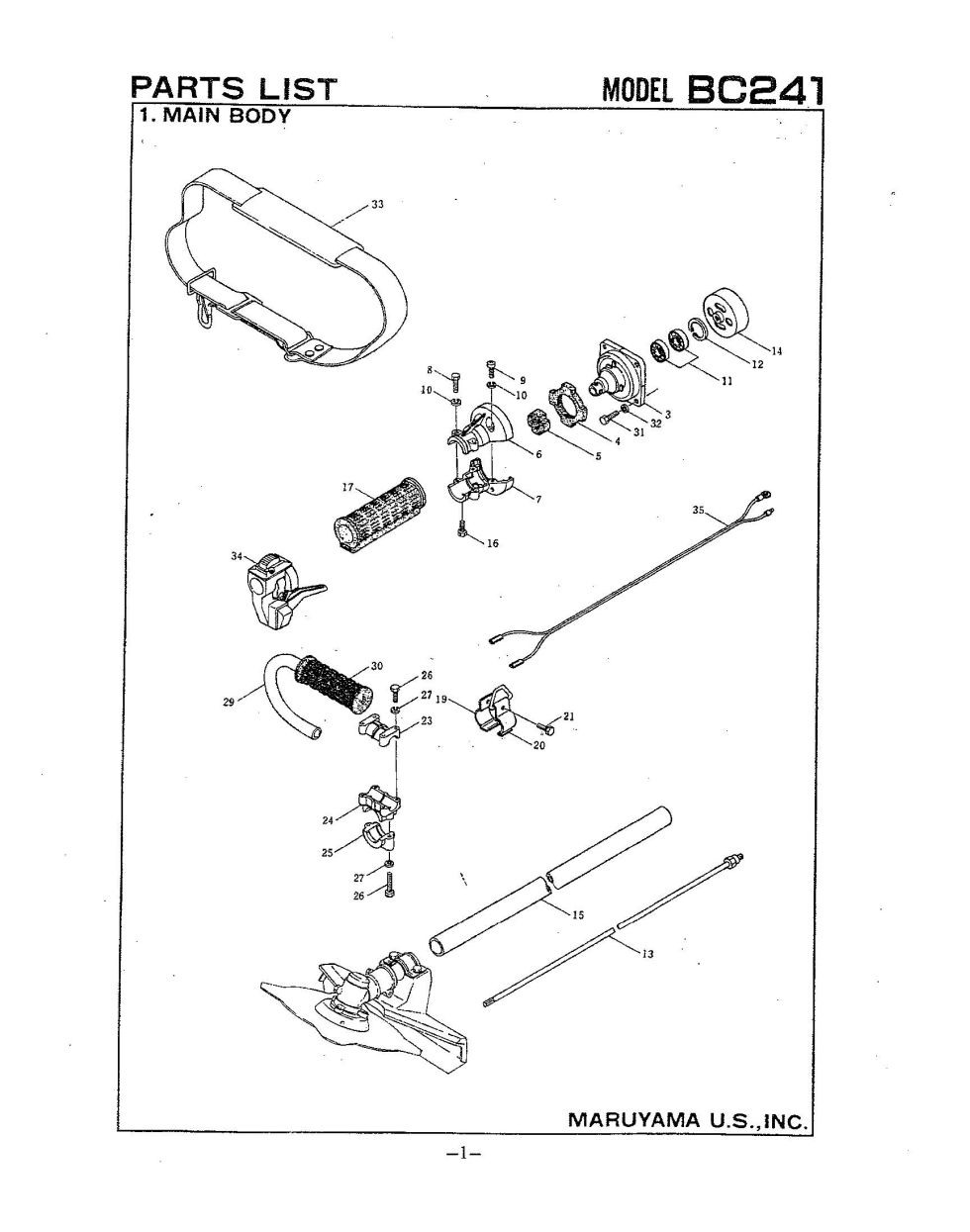

Main Body

Position number SKU Product title Price
3 210533 210533 - NLA BEARING CASE
$47.99
4 210534 210534 - NLA BUFFER A
$13.99
5 210535 210535 - NLA BUFFER B
$9.99
6 210536 210536 - NLA OUTER TRANS. PIP
$17.99
7 210537 210537 - NLA OUTER TRANS. PIP
$20.99
8 089749 089749 - Obsolete - USE PART #092561 No Longer Available
Obsolete.
9 081416 081416 - SCREW
$2.99
10 012501 012501 - SPRING WASHER
$2.99
12 054676 054676 - SNAP RING
$2.99
13 211463 211463 - NLA INNER TRANSMISSI
$38.99
14 210538 210538 - USE: 211465 No Longer Available
Obsolete.
15 211466 211466 - NLA OUTER TRANSMISSI
$106.99
19 054692 054692 - Obsolete - NS*** HANGING BRACKET (A) No Longer Available
Obsolete.
20 054695 054695 - Obsolete - NS*** HANGING BRACKET(B) No Longer Available
Obsolete.
23 210544 210544 - NS HANDLE BRACKET
$15.99
24 210545 210545 - NS HANDLE BRACKET
$15.99
25 210546 210546 - NS HANDLE BRACKET
$15.99
29 057705 057705 - Obsolete - USE PART #212385 No Longer Available
Obsolete.
31 089744 089744 - BOLT
$2.99
32 012502 012502 - SPRING WASHER
$2.99
33 212060 212060 - NLA SHOULDER STR No Longer Available
Obsolete.
34 212053 212053 - NLA THROTTLE LEVER
$27.99
35 212256 212256 - NLA LEAD WIRE
$21.99
