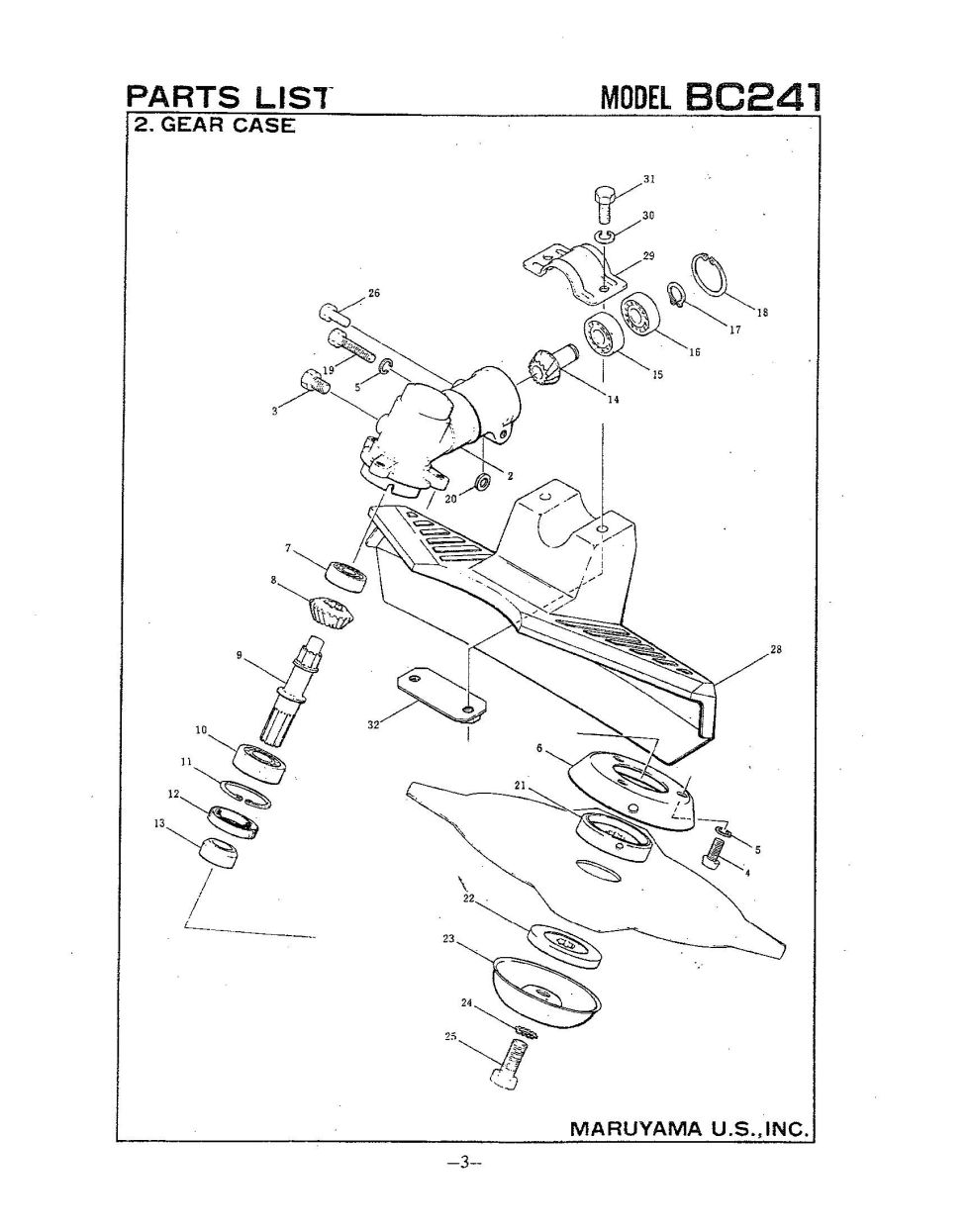

Gearcase

Position number SKU Product title Price
1 211468 211468 - NLA GEAR CASE ASSY
$107.99
2 210552 210552 - USE: 214716
$39.99
3 082092 082092 - BOLT
$2.99
5 012501 012501 - SPRING WASHER
$2.99
6 210553 210553 - NLA STABILIZER
$9.99
7 210554 210554 - BEARING
$9.99
9 210556 210556 - BLADE AXIS
$38.99
10 019585 019585 - Obsolete - USE PART #972893 No Longer Available
Obsolete.
11 055185 055185 - SNAP RING
$2.99
14 211470 211470 - NS PINION GEAR
$23.99
15 210560 210560 - BEARING
$10.99
16 211661 211661 - NLA BEARING No Longer Available
Obsolete.
17 140269 140269 - USE: 228477
$2.99
18 140270 140270 - SNAP RING
$2.99
19 089749 089749 - Obsolete - USE PART #092561 No Longer Available
Obsolete.
20 211177 211177 - NLA PACKING (5.5X12X
$2.99
21 210557 210557 - NLA BOSS A
$11.99
22 140275 140275 - CLAMPING WASHER
$17.99
23 210558 210558 - USE: 215547 No Longer Available
Obsolete.
24 210309 210309 - TOOTHED WASHER
$2.99
25 089432 089432 - Obsolete - USE PART #089431 No Longer Available
Obsolete.
28 210311 210311 - NLA SAFETY COVER
$28.99
29 210413 210413 - USE: 210312
$2.99
30 012502 012502 - SPRING WASHER
$2.99
31 089746 089746 - BOLT - BC184/241/3
$6.99
32 210313 210313 - SAFETY COVER BRACKET
$6.99
