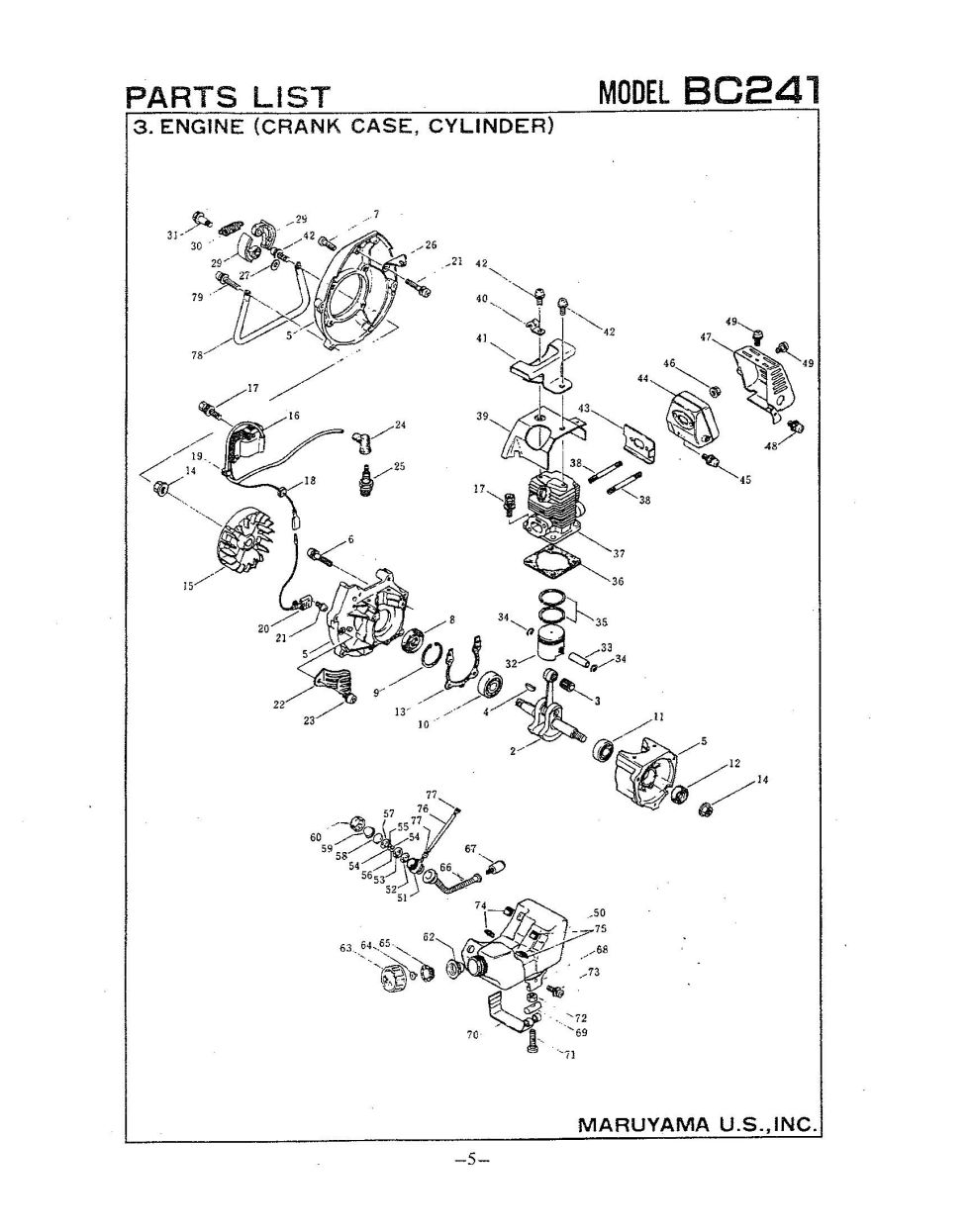

Engine (Crankcase, Cylinder)

Position number SKU Product title Price
2 972878 972878 - NLA CRANK SHAFT
$188.99
3 972869 972869 - NLA NEEDLE BEARING
$13.99
4 972897 972897 - NLA KEY
$11.99
5 996488 996488 - NLA CRANKCASE ASSY
$121.99
6 971819 971819 - NLA CASE SCREW
$2.99
7 912610 912610 - NLA SCREW
$2.99
8 972843 972843 - NLA OIL SEAL
$17.99
9 912607 912607 - NLA SNAP RING
$9.99
10 912608 912608 - USE: 12693
$20.99
11 972893 972893 - NLA BALL BEARING (NO
$14.99
12 912612 912612 - NLA OIL SEAL
$17.99
13 972820 972820 - NLA GASKET
$11.99
14 990136 990136 - NLA NUT
$5.99
15 977309 977309 - NLA FLYWHEEL
$78.99
16 991092 991092 - NLA IGNITION COIL
$95.99
17 977301 977301 - NLA BOLT
$2.99
18 912618 912618 - NLA DUST SEAL BUSH
$8.99
19 912635 912635 - USE: 583085
$2.99
20 991100 991100 - NLA UNIT ELECTRONIC
$71.99
21 970899 970899 - NLA SCREW
$2.99
22 977311 977311 - NLA CLAMP
$2.99
23 972891 972891 - NLA SCREW
$2.99
24 977306 977306 - NLA SPARK PLUG CAP
$21.99
25 910519 910519 - SPARK PLUG
$16.99
26 972868 972868 - NLA FAN CASE SUPPORT
$13.99
27 912642 912642 - NLA WASHER
$11.99
29 972808 972808 - NLA CLUTCH SHOE
$31.99
30 260105 260105 - NLA SPRING
$11.99
31 990679 990679 - NLA CLUTCH DRUM BOLT
$13.99
32 972821 972821 - NLA PISTON PIN SET
$30.99
33 990675 990675 - NLA PISTON PIN
$10.99
34 972823 972823 - NLA PISTON PIN SNAP
$2.99
35 972822 972822 - NLA PISTON RING
$18.99
36 972825 972825 - NLA CYLINDER PACKING
$2.99
37 996355 996355 - NLA CYLINDER
$137.99
38 972881 972881 - NLA STUD BOLT
$6.99
39 991088 991088 - NLA CYLINDER COVER
$24.99
40 971797 971797 - NLA CLAMP
$2.99
41 991102 991102 - NLA PLUG GUARD
$31.99
42 979338 979338 - USE: 260015 No Longer Available
Obsolete.
43 990684 990684 - NLA GASKET
$2.99
44 992372 992372 - NLA MUFFLER
$138.99
45 978460 978460 - NLA SCREW
$2.99
46 991103 991103 - NLA FLANGE NUT
$6.99
47 996489 996489 - NLA MUFFLER COVER
$20.99
48 977522 977522 - NLA SCREW
$2.99
49 971820 971820 - NLA SCREW
$2.99
50 992360 992360 - NLA FUEL TANK
$111.99
52 972819 972819 - NLA PACKING B
$10.99
53 972811 972811 - NLA SEAT, MACHINED D
$12.99
54 972813 972813 - NLA BALL (NO SUPERSE
$13.99
55 972817 972817 - NLA SPONGE
$2.99
56 260112 260112 - NLA SPONGE
$2.99
57 972812 972812 - NLA PACKING A
$8.99
58 972818 972818 - NLA SEAT, MACHINED D
$12.99
59 996357 996357 - NLA RUBBER CAP
$15.99
60 991908 991908 - NLA CAP
$9.99
62 977315 977315 - USE: 260309
$7.99
63 991645 991645 - TANK CAP
$20.99
64 977316 977316 - NLA COMBINATION VALV
$14.99
65 977318 977318 - NLA HOLDER, MACHINED
$11.99
66 977303 977303 - FUEL HOSE
$19.99
67 912658 912658 - USE: 587254
$28.99
68 991090 991090 - TANK HANGER
$16.99
69 972883 972883 - NLA BAND SUPPORT BAR
$9.99
70 991101 991101 - NLA TANK BAND
$17.99
71 912609 912609 - NLA SCREW
$2.99
72 979339 979339 - NLA NUT
$2.99
73 972889 972889 - SCREW
$2.99
74 996358 996358 - NLA PAD
$7.99
75 912650 912650 - USE: 971738
$2.99
76 977300 977300 - NLA FUEL PIPE
$2.99
77 971781 971781 - NLA FUEL PIPE CLIP
$2.99
78 991104 991104 - NLA ENGINE STAND
$31.99
79 990126 990126 - SCREW
$2.99
