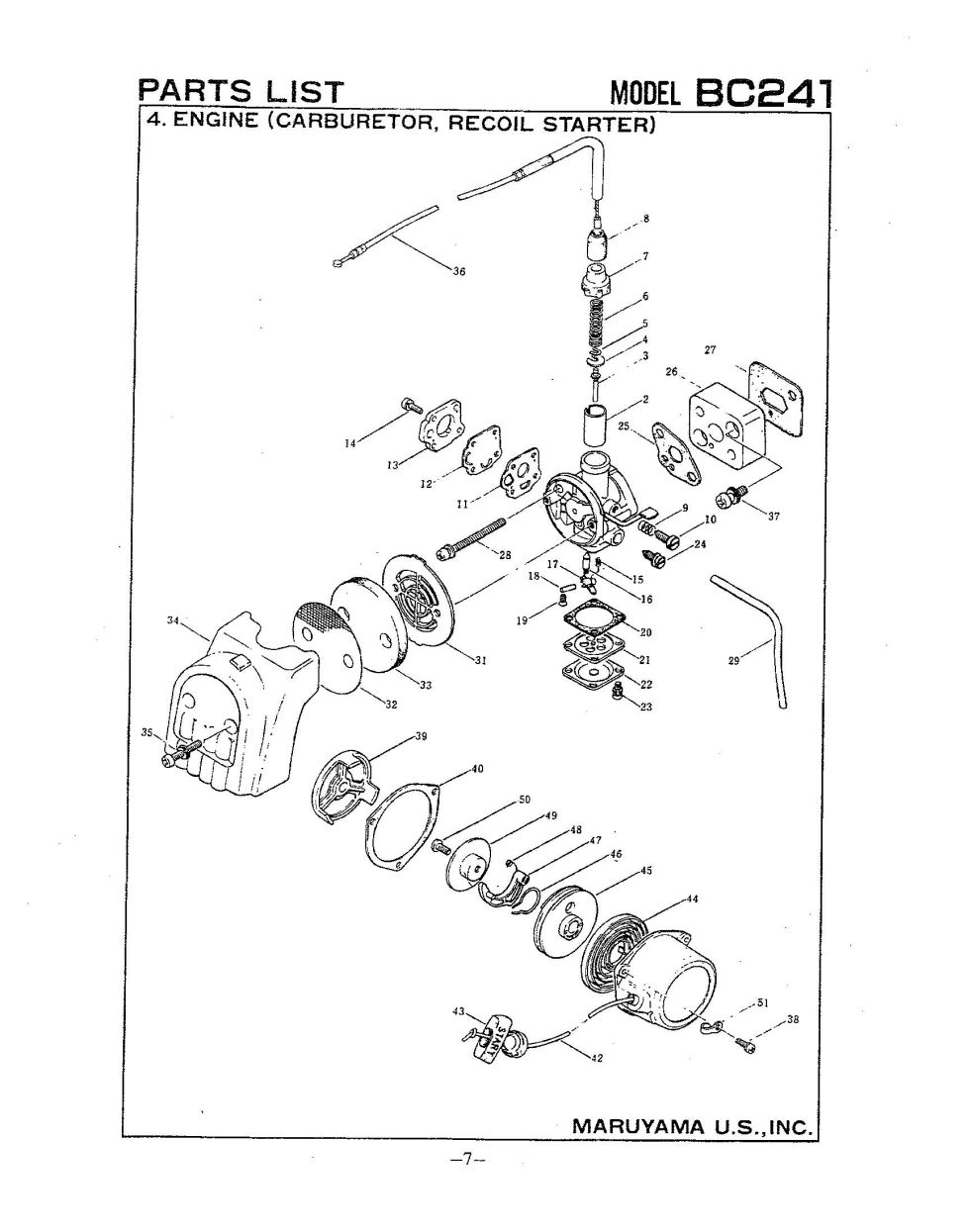

Engine (Carburetor, Recoil Starter)

Position number SKU Product title Price
2 991095 991095 - THROTTLE VALVE
$27.99
3 996360 996360 - NLA NEEDLE JET
$14.99
4 972850 972850 - NLA SPRING RETAINER
$5.99
5 996361 996361 - NLA CLIP
$8.99
6 972853 972853 - NLA THROTTLE RETURN
$8.99
7 977566 977566 - NLA MIXING CHAMBER C
$17.99
8 260058 260058 - NLA AIR SEAL
$11.99
9 991097 991097 - NLA SPRING
$8.99
10 991096 991096 - NLA THROTTLE ADJ SCR
$14.99
11 972865 972865 - USE: 990325
$2.99
12 260055 260055 - USE: 990324
$22.99
13 996362 996362 - PUMP COVER ASSY
$30.99
14 972887 972887 - SCREW
$2.99
15 972859 972859 - INLET VALVE SPRING
$10.99
16 972858 972858 - NLA FLOAT VALVE NEED
$27.99
17 972857 972857 - NLA FLOAT ARM
$10.99
18 972856 972856 - NLA FLOAT PIN
$11.99
19 972860 972860 - NLA FLOAT PIN SET SC
$2.99
20 977533 977533 - USE: 979680
$2.99
21 260052 260052 - USE: 976510
$22.99
22 972866 972866 - NLA MAIN DIAPHRAGM C
$38.99
23 971814 971814 - SCREW
$2.99
24 972867 972867 - NLA MAIN JET NEEDLE
$27.99
25 972836 972836 - NLA CARBURETOR PACKI
$17.99
26 977308 977308 - NLA INSULATOR
$18.99
27 972838 972838 - NLA INTAKE PACKING
$2.99
28 977534 977534 - NLA SCREW
$2.99
29 972815 972815 - USE: 971739
$2.99
31 991098 991098 - NLA ELEMENT HOLDER
$10.99
32 972842 972842 - NLA STEEL NET
$17.99
33 972844 972844 - ELEMENT
$15.99
34 991087 991087 - NLA AIR CLEANER COVE
$16.99
35 990125 990125 - NLA SCREW
$2.99
36 996491 996491 - NLA THROTTLE CABLE
$47.99
37 977305 977305 - NLA SCREW
$2.99
38 972889 972889 - SCREW
$2.99
39 972835 972835 - NLA STARTER PULLEY
$23.99
40 972880 972880 - NLA RECOIL STARTER P
$11.99
42 972832 972832 - USE: 261724
$16.99
43 972833 972833 - NLA STARTER KNOB
$21.99
44 972829 972829 - SPIRAL SPRING
$22.99
45 972830 972830 - NLA REEL
$45.99
46 972831 972831 - NLA FRICTION SPRING
$6.99
47 977439 977439 - USE: 591588
$7.99
48 972834 972834 - NLA RETURN SPRING
$15.99
49 977440 977440 - USE: 972805
$5.99
50 977441 977441 - SCREW
$10.99
51 972876 972876 - NLA CLAMP
$2.99
