Main Body

Main Body

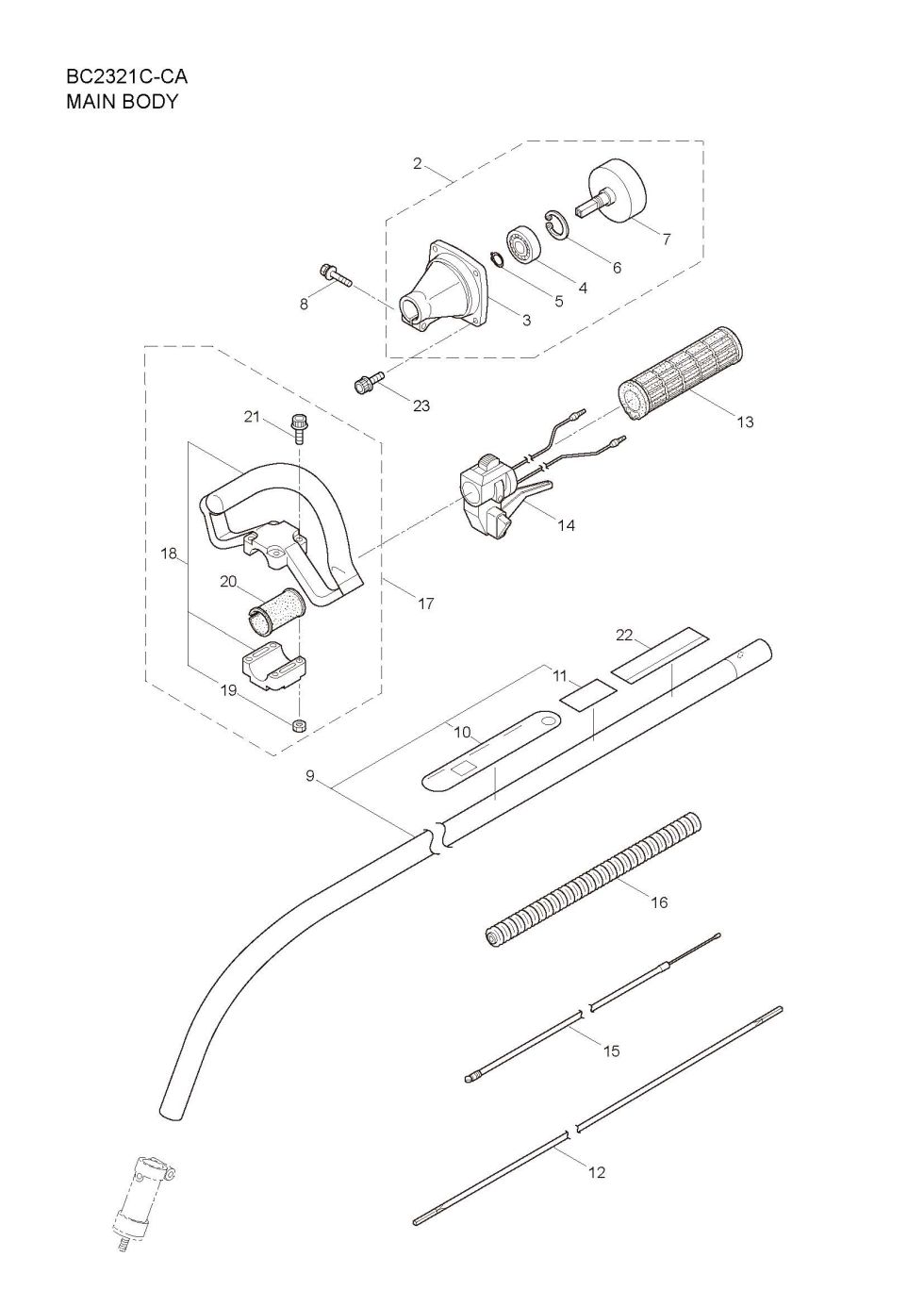

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BC2321C-CA. You have selected the Main Body diagram for the Maruyama BC2321C-CA Trimmers and Brushcutters. Below you will find an interactive part diagram for the BC2321C-CA Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BC2321C-CA parts not shown in this diagram you may select from one of the other BC2321C-CA part assemblies or select a different Trimmers and Brushcutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Trimmers and Brushcutters parts.

Position number SKU Product title Price
2 218868 218868 - CLUTCH CASE ASSY
$85.99
3 218869 218869 - CLUTCH CASE
$37.99
4 012649 012649 - BEARING
$19.99
5 140273 140273 - SNAP RING
$2.99
6 016732 016732 - C SHAPED SNAP RING 3
$2.99
7 218492 218492 - CLUTCH DRUM
$30.99
8 261246 261246 - CAP SCREW M5X25
$2.99
9 220079 220079 - DRIVESHAFT TUBE ASSY
$71.99
10 221501 221501 - LABEL
$9.99
11 223926 223926 - LABEL
$6.99
12 215985 215985 - INNER SHAFT
$68.99
13 215995 215995 - GRIP
$22.99
14 222902 222902 - THROTTLE TRIGGER ASS
$51.99
15 213444 213444 - THROTTLE CABLE
$13.99
16 213548 213548 - PLASTIC TUBE
$2.99
17 229597 229597 - LOOP HANDLE ASSY
$45.99
18 222938 222938 - LOOP HANDLE
$29.99
19 081028 081028 - NUT
$2.99
20 216004 216004 - PACKING
$10.99
21 215608 215608 - CAP SCREW
$2.99
23 261250 261250 - BOLT M5X20
$2.99
