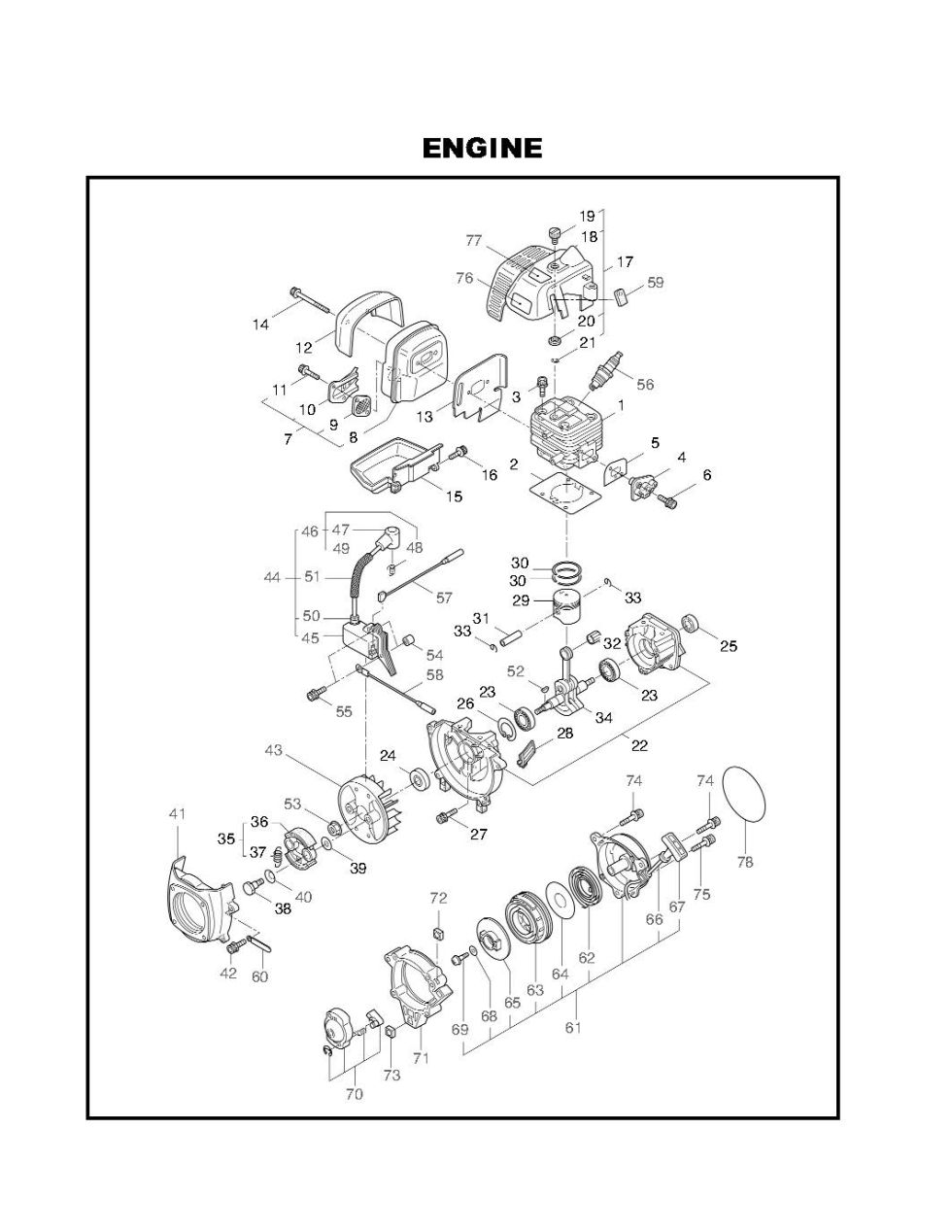

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your BC2321. You have selected the Engine diagram for the Maruyama BC2321 Trimmers and Brushcutters. Below you will find an interactive part diagram for the BC2321 Engine. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the BC2321 parts not shown in this diagram you may select from one of the other BC2321 part assemblies or select a different Trimmers and Brushcutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Trimmers and Brushcutters parts.

Position number SKU Product title Price
2 282339 282339 - GASKET
$2.99
3 261250 261250 - BOLT M5X20
$2.99
4 269144 269144 - INSULATOR
$22.99
5 267049 267049 - GASKET
$2.99
6 265924 265924 - CAP SCREW 5X25
$2.99
7 282208 282208 - MUFFLER ASSY.
$97.99
8 282209 282209 - MUFFLER
$114.99
9 267056 267056 - SPARK ARRESTER
$7.99
10 268171 268171 - MUFFLER TAIL
$11.99
11 265107 265107 - BOLT
$2.99
12 268461 268461 - HOLDER
$7.99
13 281440 281440 - GASKET
$6.99
14 266402 266402 - CAP SCREW
$5.99
15 281446 281446 - UNDER COVER
$5.99
16 267191 267191 - CAP SCREW
$2.99
17 281716 281716 - TOP COVER ASSY
$23.99
18 281444 281444 - TOP COVER
$20.99
19 261018 261018 - KNOB
$7.99
20 261020 261020 - SPACER
$2.99
21 261734 261734 - SNAP RING
$2.99
22 268026 268026 - CRANKCASE
$63.99
23 280488 280488 - USE: 261491
$13.99
24 261492 261492 - OIL SEAL
$2.99
25 262198 262198 - NLA OIL SEAL
$5.99
26 055185 055185 - SNAP RING
$2.99
27 261612 261612 - BOLT
$2.99
28 281442 281442 - SCREEN
$2.99
29 268032 268032 - USE: 283379
$45.99
30 282177 282177 - PISTON RING
$16.99
31 261036 261036 - PISTON PIN
$16.99
32 263957 263957 - BEARING NEEDLE
$21.99
33 261576 261576 - CIRCLIP
$2.99
34 268187 268187 - CRANKSHAFT/CONN ROD
$82.99
35 268439 268439 - CLUTCH ASSY
$37.99
36 267342 267342 - CLUTCH SHOE
$23.99
37 267345 267345 - CLUTCH SPRING
$10.99
38 264505 264505 - CLUTCH BOLT
$5.99
39 261189 261189 - WASHER
$2.99
40 261777 261777 - WAVE WASHER
$2.99
41 281443 281443 - FAN COVER
$21.99
43 268039 268039 - ROTOR/FAN
$46.99
44 281705 281705 - IGNITION COIL (obsolete)
use part #288197
$41.99
45 281706 281706 - COIL
$57.99
46 281707 281707 - SPARK PLUG WIRE ASSY
$23.99
47 261074 261074 - PLUG CAP
$13.99
48 261075 261075 - CONNECTOR
$2.99
49 281709 281709 - SPARK PLUG WIRE
$2.99
50 261072 261072 - CAP
$2.99
51 268584 268584 - COIL WIRE INSULATOR
$2.99
52 261076 261076 - WOODRUFF KEY
$2.99
53 261417 261417 - ROTOR NUT
$8.99
54 268380 268380 - USE: 280381
$2.99
55 261256 261256 - BOLT M4X25
$2.99
56 261200 261200 - SPARK PLUG
$20.99
57 263804 263804 - USE: 283735
$2.99
58 268044 268044 - LEAD
$5.99
59 269189 269189 - GROMMET
$2.99
60 264588 264588 - CLAMP
$2.99
61 280283 280283 - RECOIL ASSEMBLY
$67.99
62 269495 269495 - RECOIL SPRING
$24.99
63 280113 280113 - SPRING CASE ASSY
$78.99
64 280114 280114 - THRUST DISK
$18.99
65 280110 280110 - PULLEY
$21.99
66 269499 269499 - ROPE
$21.99
67 269500 269500 - STARTER GRIP
$26.99
68 269501 269501 - WASHER
$2.99
69 269502 269502 - 269502G SCREW
$2.99
70 269492 269492 - STARTER PAWL ASSEMBL
$21.99
71 281534 281534 - NLA ADAPTER ASSE (obsolete)
use part #284698
$10.99
72 280008 280008 - NUT
$2.99
74 269273 269273 - CAP SCREW
$2.99
75 265726 265726 - SCREW
$2.99
77 282558 282558 - LABEL
$2.99
78 282340 282340 - LABEL
$2.99
