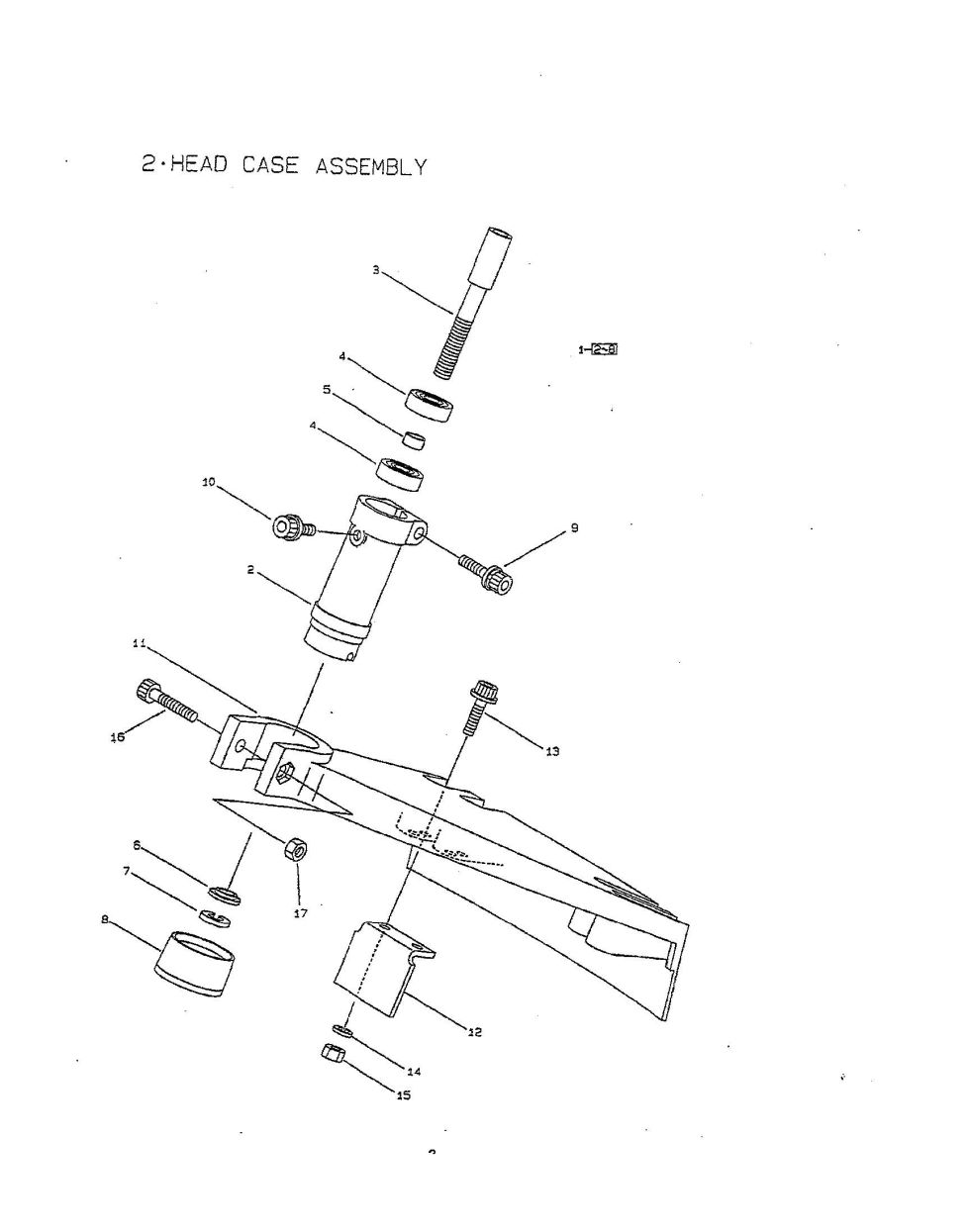

Headcase

Position number SKU Product title Price
1 215986 215986 - HEAD CASE ASSY
$89.99
2 215987 215987 - CASE, BEARING
$18.99
3 215988 215988 - ATTACHING SHAFT
$25.99
4 215989 215989 - BEARING
$20.99
5 215990 215990 - SPACER
$2.99
6 215991 215991 - WASHER
$2.99
7 015845 015845 - SPRING WASHER
$2.99
8 215992 215992 - ATTACHING SHAFT ADAP
$20.99
9 261246 261246 - CAP SCREW M5X25
$2.99
10 215993 215993 - CAP SCREW, ALIGNMENT
$2.99
11 215999 215999 - SAFETY COVER
$37.99
12 216000 216000 - STRING CUTTER
$20.99
13 216001 216001 - CAP SCREW
$2.99
14 012501 012501 - SPRING WASHER
$2.99
15 089846 089846 - NUT M5 (obsolete)
use part #081027
$2.99
16 216863 216863 - CAP SCREW
$2.99
