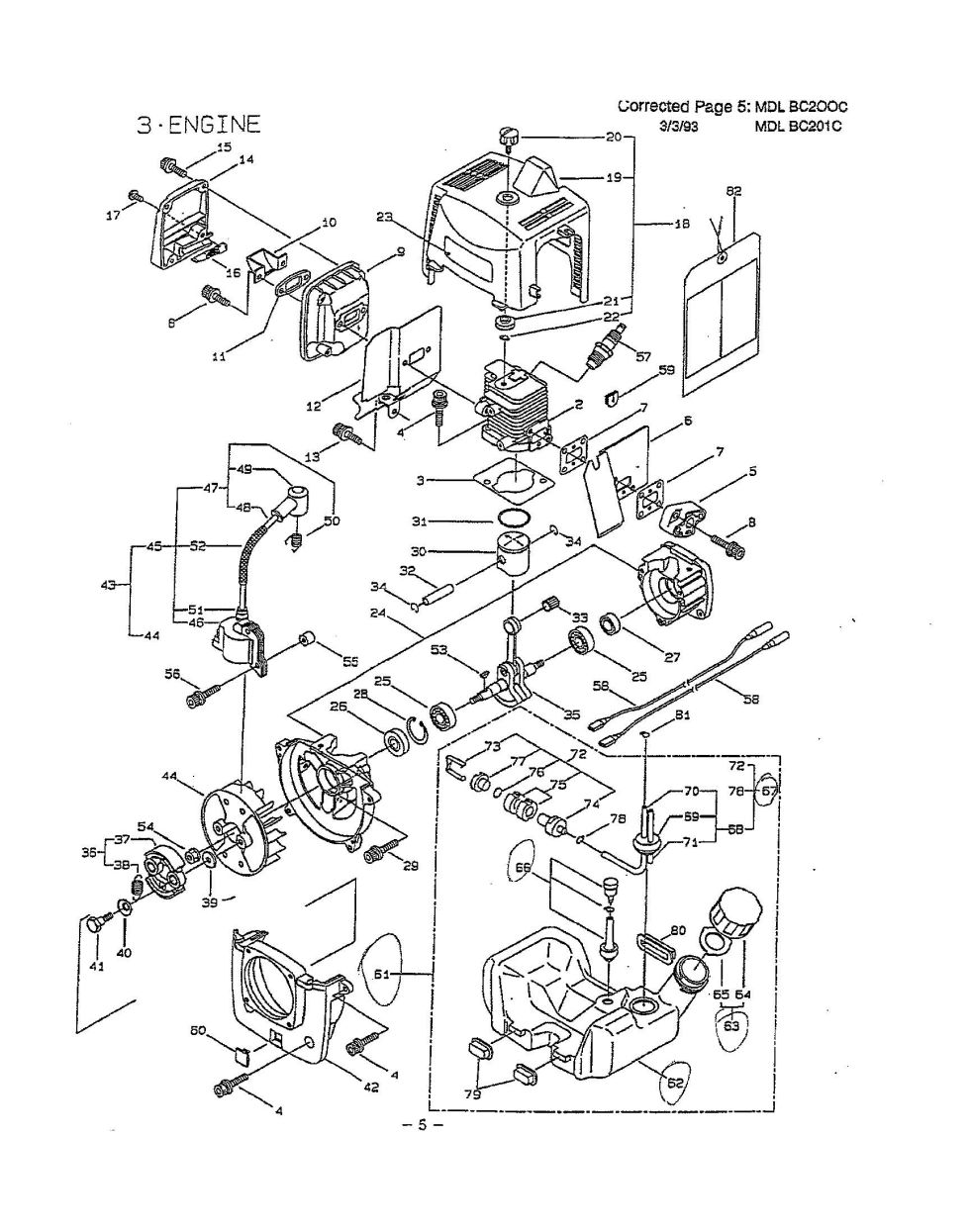

Engine

Position number SKU Product title Price
1A 262385 262385 - NLA AE200 - ENGINE A
$301.99
2 260993 260993 - NLA CYLINDER
$119.99
3 261166 261166 - GASKET
$6.99
4 261250 261250 - BOLT M5X20
$2.99
5 261938 261938 - INSULATOR ASSY
$18.99
6 261000 261000 - HEAT SHIELD
$18.99
7 261171 261171 - GASKET
$2.99
8 261246 261246 - CAP SCREW M5X25
$2.99
9 262386 262386 - NLA NLA PART
$20.99
10 261006 261006 - NLA PLATE
$14.99
11 262004 262004 - NLA PLATE
$5.99
12 261007 261007 - GASKET ASSY
$20.99
13 261607 261607 - BOLT M5X16
$2.99
14 262387 262387 - NLA MUFFLER COVER
$18.99
15 261780 261780 - NLA CAP SCREW
$2.99
16 262388 262388 - USE: 262395
$16.99
18 261782 261782 - NLA TOP COVER ASSY
$32.99
19 261017 261017 - NLA TOP COVER
$29.99
20 261018 261018 - KNOB
$7.99
21 261020 261020 - SPACER
$2.99
22 261734 261734 - SNAP RING
$2.99
23 262100 262100 - LABEL
$5.99
24 261024 261024 - NLA CRANKCASE
$72.99
25 261181 261181 - BEARING
$16.99
26 262712 262712 - NLA OIL SEAL
$2.99
27 262713 262713 - NLA OIL SEAL
$2.99
28 054676 054676 - SNAP RING
$2.99
29 261612 261612 - BOLT
$2.99
30 261032 261032 - PISTON
$40.99
31 261158 261158 - PISTON RING
$11.99
32 261036 261036 - PISTON PIN
$16.99
33 261037 261037 - NEEDLE BEARING
$15.99
34 261576 261576 - CIRCLIP
$2.99
35 261040 261040 - USE: 263719
$79.99
37A 261406 261406 - NLA CLUTCH SHOE
$17.99
37B 261051 261051 - USE: 264844
$27.99
38A 263614 263614 - CLUTCH SPRING
$18.99
38B 261188 261188 - NLA SPRING
$11.99
39 261189 261189 - WASHER
$2.99
40 261777 261777 - WAVE WASHER
$2.99
41 261056 261056 - NLA CLUTCH BOLT
$2.99
42 261251 261251 - NLA FAN COVER
$50.99
43B 261066 261066 - NLA MAGNETO ASSY
$139.99
44A 263085 263085 - ROTOR
$73.99
44B 261067 261067 - NLA ROTOR/ FAN
$87.99
45A 261301 261301 - IGNITION COIL ASSY
$108.99
45B 261069 261069 - IGNITION COIL ASSY
$106.99
46B 261070 261070 - IGNITION COIL
$96.99
47 261744 261744 - USE: 267403 (obsolete)
use part #267403
$23.99
48 261071 261071 - NLA IGNITION CABLE
$10.99
49 261074 261074 - PLUG CAP
$13.99
50 261075 261075 - CONNECTOR
$2.99
51 261072 261072 - CAP
$2.99
52 261073 261073 - TUBE
$8.99
53 261076 261076 - WOODRUFF KEY
$2.99
54 261077 261077 - NUT
$7.99
55 261078 261078 - NLA SPACER -
$2.99
56 261256 261256 - BOLT M4X25
$2.99
57 261200 261200 - SPARK PLUG
$20.99
58 261772 261772 - LEAD
$2.99
59 261202 261202 - GROMMET
$2.99
61 261960 261960 - FUEL TANK ASSY
$88.99
63 261584 261584 - FUEL TANK CAP ASSY
$15.99
64 261578 261578 - USE: 261104
$7.99
65 261105 261105 - PACKING
$2.99
66 261696 261696 - BREATHER ASSY
$8.99
67 261795 261795 - FUEL PIPE ASSY
$30.99
68 261112 261112 - PIPE ASSY (obsolete)
use part #266955
$17.99
69 261115 261115 - USE: 266955 (obsolete)
use part #266955
$17.99
71 261114 261114 - NLA RETURN PIPE
$7.99
72 261797 261797 - NLA FUEL FILTER ASSY
$12.99
73 261798 261798 - NS CLIP
$2.99
74 261799 261799 - NS BODY
$8.99
75 261800 261800 - NLA FILTER
$2.99
76 261801 261801 - NS PACKING
$2.99
77 261802 261802 - RETAINER
$6.99
78 261117 261117 - CLIP
$2.99
79 261118 261118 - PAD
$2.99
80 261119 261119 - PAD
$2.99
