Carburetor, Fuel Tank

Carburetor, Fuel Tank

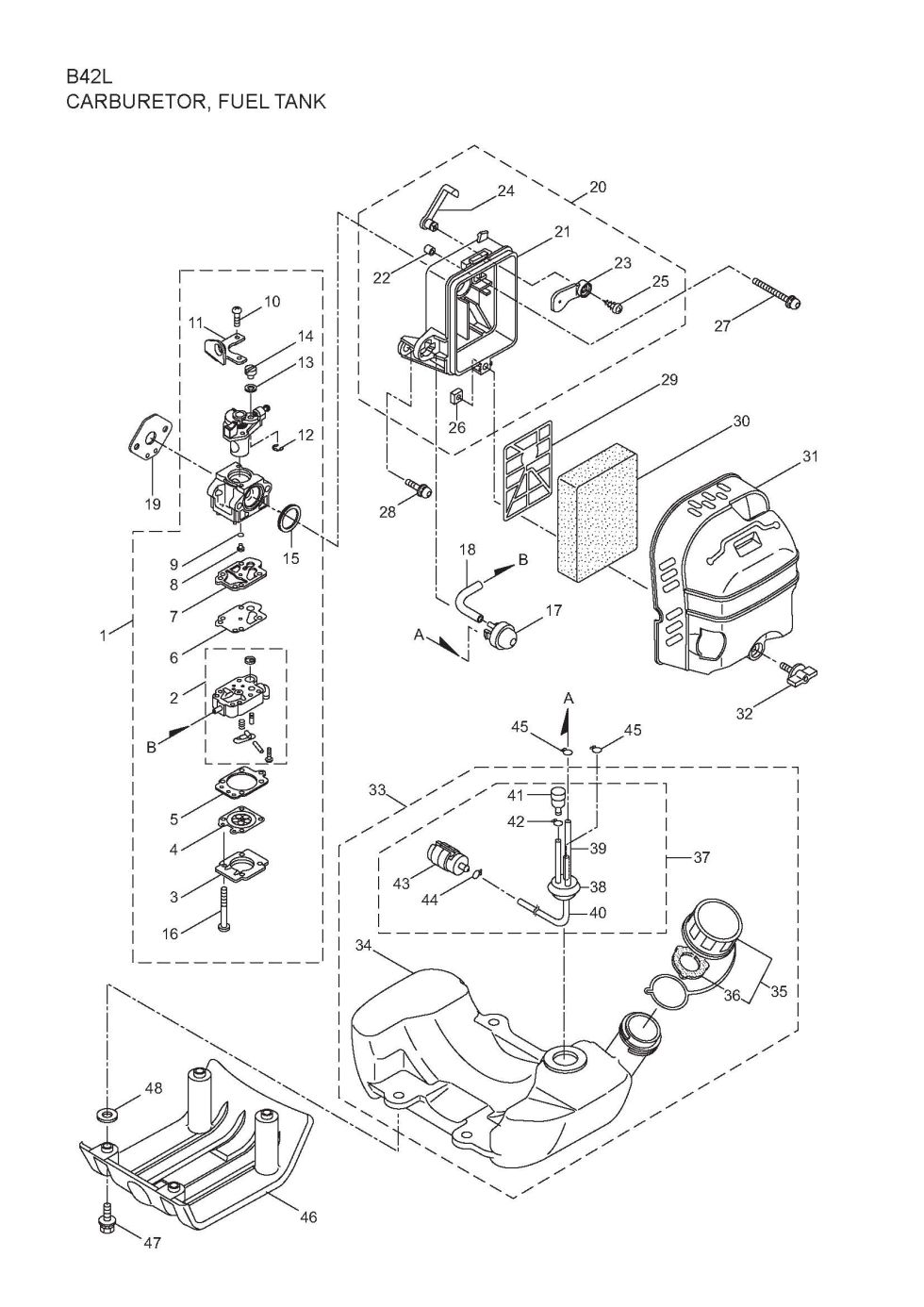

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your B42L. You have selected the Carburetor, Fuel Tank diagram for the Maruyama B42L Trimmers and Brushcutters. Below you will find an interactive part diagram for the B42L Carburetor, Fuel Tank. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the B42L parts not shown in this diagram you may select from one of the other B42L part assemblies or select a different Trimmers and Brushcutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Trimmers and Brushcutters parts.

Position number SKU Product title Price
1 287021 287021 - CARBURETOR ASSY
$159.99
2 283124 283124 - PUMP BODY
$63.99
3 263726 263726 - COVER PLATE
$6.99
4 283905 283905 - METERRING DIAPHRAGM
$15.99
5 263727 263727 - GASKET
$2.99
6 262994 262994 - DIAPHRAGM FUEL PUMP
$18.99
7 282576 282576 - GASKET
$8.99
8 287061 287061 - Main Jet
$17.99
9 261871 261871 - O-RING
$2.99
10 261875 261875 - SCREW
$2.99
11 264677 264677 - BRACKET
$20.99
12 261876 261876 - E-RING
$2.99
13 264678 264678 - WASHER
$2.99
14 261658 261658 - SWIVEL
$5.99
15 261657 261657 - PACKING
$10.99
16 263737 263737 - Screw
$2.99
17 282299 282299 - PUMP
$16.99
18 282512 282512 - PIPE NE420 NE500
$2.99
19 282301 282301 - GASKET
$2.99
20 282302 282302 - CASE ASSY
$19.99
21 282303 282303 - CASE BODY
$14.99
22 282484 282484 - Sleeve
$2.99
23 282304 282304 - VALVE
$2.99
24 282305 282305 - LEVER
$2.99
25 269032 269032 - SCREW
$2.99
26 269423 269423 - NUT
$2.99
27 261814 261814 - BOLT
$2.99
28 264807 264807 - CAP SCREW M5X16
$2.99
29 282481 282481 - PLATE
$2.99
30 282306 282306 - ELEMENT
$6.99
31 285814 285814 - CLEANER COVER
$9.99
32 281438 281438 - KNOB
$7.99
33 285816 285816 - FUEL TANK ASSY
$63.99
34 285817 285817 - FUEL TANK
$29.99
35 281564 281564 - FUEL TANK CAP ASSY (obsolete)
use part #289046
$19.99
36 269377 269377 - GASKET (obsolete)
use part #287058
$10.99
37 286794 286794 - FUEL PIPE ASSY
$33.99
38 268065 268065 - GROMMET
$8.99
39 286792 286792 - RETURN PIPE No Longer Available
Obsolete.
40 262649 262649 - FUEL PIPE
$2.99
41 261590 261590 - BREATHER SUB ASSY
$12.99
42 261117 261117 - CLIP
$2.99
43 267328 267328 - FUEL FILTER ASSY (obsolete)
use part #277887
$11.99
46 285819 285819 - STAND
$11.99
47 281714 281714 - SCREW
$2.99
48 285735 285735 - PACKING
$2.99
