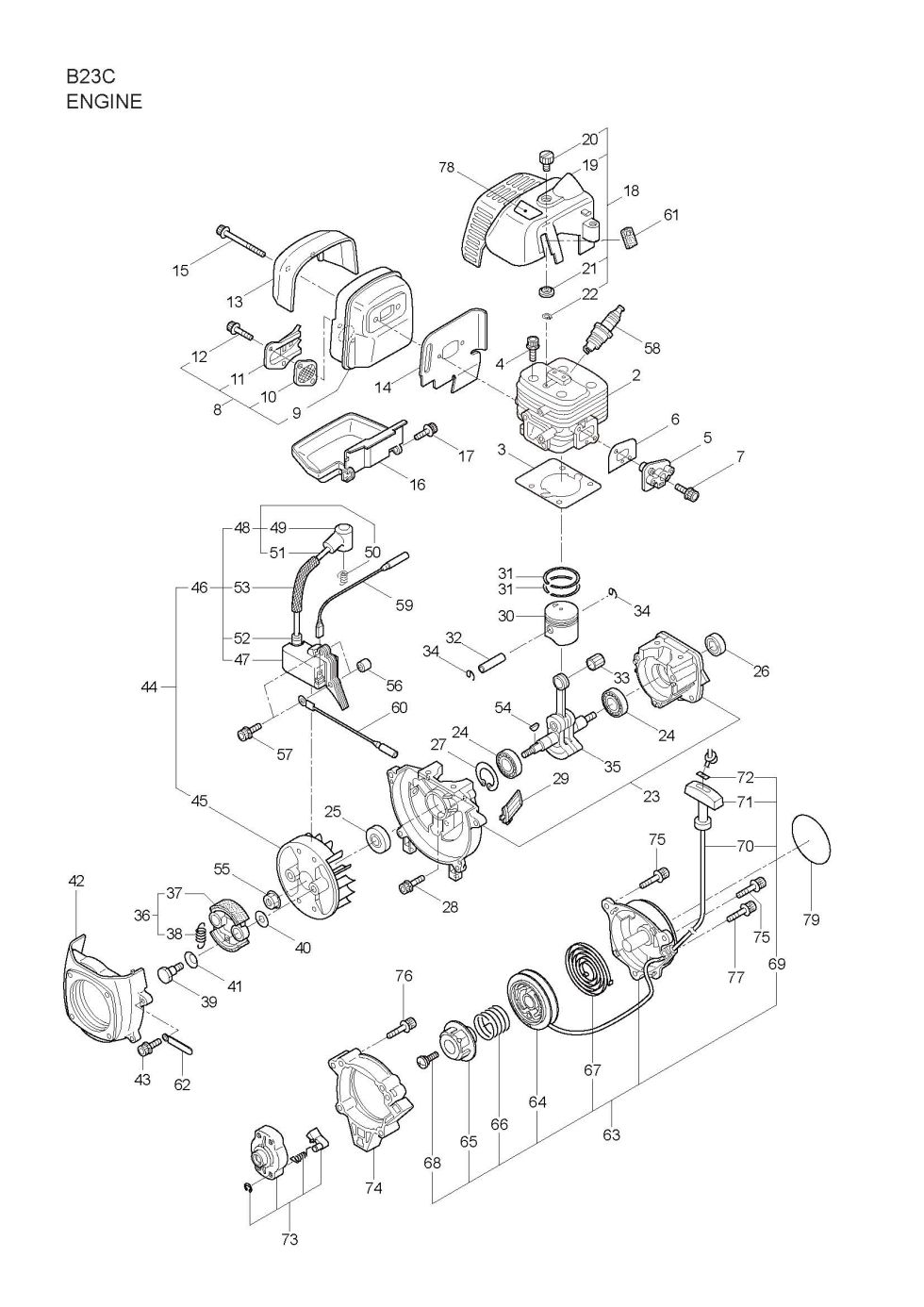

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your B23C. You have selected the Engine diagram for the Maruyama B23C Trimmers and Brushcutters. Below you will find an interactive part diagram for the B23C Engine. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the B23C parts not shown in this diagram you may select from one of the other B23C part assemblies or select a different Trimmers and Brushcutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Trimmers and Brushcutters parts.

Position number SKU Product title Price
2 286309 286309 - USE: 288499
$147.99
3 286074 286074 - GASKET
$13.99
4 261250 261250 - BOLT M5X20
$2.99
5 269144 269144 - INSULATOR
$22.99
6 267049 267049 - GASKET
$2.99
7 265924 265924 - CAP SCREW 5X25
$2.99
8 282208 282208 - MUFFLER ASSY.
$97.99
9 282209 282209 - MUFFLER
$114.99
10 267056 267056 - SPARK ARRESTER
$7.99
11 268171 268171 - MUFFLER TAIL
$11.99
12 265107 265107 - BOLT
$2.99
13 268461 268461 - HOLDER
$7.99
14 281440 281440 - GASKET
$6.99
15 266402 266402 - CAP SCREW
$5.99
16 281446 281446 - UNDER COVER
$5.99
17 267191 267191 - CAP SCREW
$2.99
18 281716 281716 - TOP COVER ASSY
$23.99
19 281444 281444 - TOP COVER
$20.99
20 261018 261018 - KNOB
$7.99
21 261020 261020 - SPACER
$2.99
22 261734 261734 - SNAP RING
$2.99
23 268026 268026 - CRANKCASE
$63.99
24 280488 280488 - USE: 261491
$13.99
25 261492 261492 - OIL SEAL
$2.99
26 261386 261386 - OIL SEAL
$2.99
27 055185 055185 - SNAP RING
$2.99
28 261612 261612 - BOLT
$2.99
29 281442 281442 - SCREEN
$2.99
30 268032 268032 - USE: 283379
$45.99
31 282177 282177 - PISTON RING
$16.99
32 261036 261036 - PISTON PIN
$16.99
33 263957 263957 - BEARING NEEDLE
$21.99
34 261576 261576 - CIRCLIP
$2.99
35 268187 268187 - CRANKSHAFT/CONN ROD
$82.99
37 267342 267342 - CLUTCH SHOE
$23.99
38 267345 267345 - CLUTCH SPRING
$10.99
39 264505 264505 - CLUTCH BOLT
$5.99
40 261189 261189 - WASHER
$2.99
41 261777 261777 - WAVE WASHER
$2.99
42 281443 281443 - FAN COVER
$21.99
44 286269 286269 - USE: 288196 No Longer Available
Obsolete.
45 286271 286271 - ROTOR/FAN
$34.99
46 281705 281705 - IGNITION COIL (obsolete)
use part #288197
$41.99
47 281706 281706 - COIL
$57.99
48 281707 281707 - SPARK PLUG WIRE ASSY
$23.99
49 261074 261074 - PLUG CAP
$13.99
50 261075 261075 - CONNECTOR
$2.99
51 281709 281709 - SPARK PLUG WIRE
$2.99
52 261072 261072 - CAP
$2.99
53 280080 280080 - INSULATOR
$2.99
54 261076 261076 - WOODRUFF KEY
$2.99
55 261417 261417 - ROTOR NUT
$8.99
56 280381 280381 - SPACER
$2.99
57 261256 261256 - BOLT M4X25
$2.99
59 263804 263804 - USE: 283735
$2.99
60 268044 268044 - LEAD
$5.99
61 269189 269189 - GROMMET
$2.99
63 283477 283477 - RECOIL ASSEMBLY
$33.99
64 283504 283504 - REEL
$11.99
65 283505 283505 - CAM PLATE
$5.99
66 283506 283506 - SPRING
$9.99
67 280931 280931 - USE: 261721
$14.99
68 267213 267213 - SCREW
$2.99
69 283578 283578 - STARTER ROPE ASSY
$20.99
70 283579 283579 - STARTER ROPE
$2.99
71 261725 261725 - STARTER GRIP
$9.99
72 283511 283511 - ROPE STOPPER
$2.99
73 283575 283575 - STARTER PAWL ASSEMBL
$13.99
74 284698 284698 - ADAPTER ASSEMBLY
$10.99
75 283391 283391 - SCREW
$2.99
76 265726 265726 - SCREW
$2.99
77 282096 282096 - SCREW
$2.99
78 288676 288676 - LABEL
$7.99
79 288675 288675 - LABEL
$7.99
