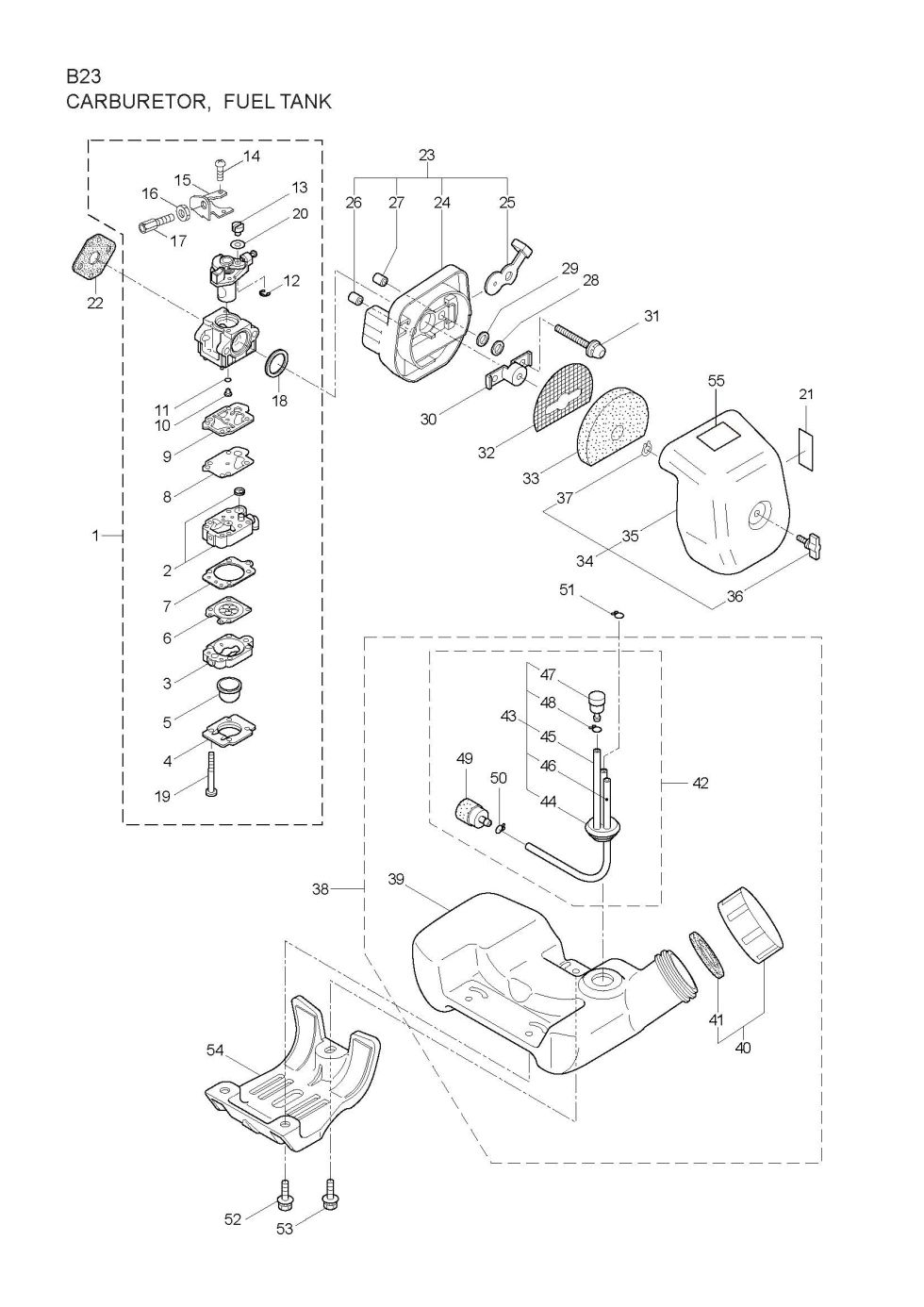

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your B23. You have selected the Carburetor, Fuel Tank diagram for the Maruyama B23 Trimmers and Brushcutters. Below you will find an interactive part diagram for the B23 Carburetor, Fuel Tank. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the B23 parts not shown in this diagram you may select from one of the other B23 part assemblies or select a different Trimmers and Brushcutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Trimmers and Brushcutters parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 286703 | 286703 - CARBURETOR ASS'Y |
$99.99
|
|
| 2 | 264155 | 264155 - PUMP BODY |
$80.99
|
|
| 3 | 262991 | 262991 - PURGE BODY |
$23.99
|
|
| 4 | 262992 | 262992 - COVER PLATE |
$11.99
|
|
| 5 | 261874 | 261874 - PRIMER |
$19.99
|
|
| 6 | 283905 | 283905 - METERRING DIAPHRAGM |
$15.99
|
|
| 7 | 262993 | 262993 - GASKET |
$10.99
|
|
| 8 | 262994 | 262994 - DIAPHRAGM FUEL PUMP |
$18.99
|
|
| 9 | 282576 | 282576 - GASKET |
$8.99
|
|
| 10 | 281487 | 281487 - MAIN JET #37 |
$12.99
|
|
| 11 | 261871 | 261871 - O-RING |
$2.99
|
|
| 12 | 261876 | 261876 - E-RING |
$2.99
|
|
| 13 | 261658 | 261658 - SWIVEL |
$5.99
|
|
| 14 | 261875 | 261875 - SCREW |
$2.99
|
|
| 15 | 264677 | 264677 - BRACKET |
$20.99
|
|
| 16 | 261878 | 261878 - NUT |
$2.99
|
|
| 17 | 263994 | 263994 - ADJUSTER |
$16.99
|
|
| 18 | 261657 | 261657 - PACKING |
$10.99
|
|
| 19 | 262996 | 262996 - SCREW |
$2.99
|
|
| 20 | 264678 | 264678 - WASHER |
$2.99
|
|
| 21 | 261352 | 261352 - DECAL |
$2.99
|
|
| 22 | 261864 | 261864 - GASKET |
$2.99
|
|
| 23 | 268055 | 268055 - AIR FILTER CASE ASSY |
$19.99
|
|
| 24 | 268056 | 268056 - AIR FILTER CASE |
$12.99
|
|
| 25 | 268057 | 268057 - VALVE |
$11.99
|
|
| 26 | 268157 | 268157 - SLEEVE |
$2.99
|
|
| 27 | 268412 | 268412 - SLEEVE |
$2.99
|
|
| 28 | 263345 | 263345 - PACKING |
$2.99
|
|
| 29 | 263942 | 263942 - WASHER |
$2.99
|
|
| 30 | 263815 | 263815 - STAY |
$8.99
|
|
| 31 | 264016 | 264016 - CAP SCREW M5X60 |
$2.99
|
|
| 32 | 265026 | 265026 - SCREEN |
$2.99
|
|
| 33 | 265027 | 265027 - FOAM ELEMENT |
$5.99
|
|
| 34 | 268058 | 268058 - AIR FILTER COVER ASS |
$24.99
|
|
| 35 | 268059 | 268059 - AIR FILTER COVER |
$12.99
|
|
| 36 | 281438 | 281438 - KNOB |
$7.99
|
|
| 37 | 261734 | 261734 - SNAP RING |
$2.99
|
|
| 38 | 285690 | 285690 - FUEL TANK ASSY |
$86.99
|
|
| 39 | 285048 |
285048 - FUEL TANK (obsolete) use part #285690 |
$86.99
|
|
| 40 | 281565 |
281565 - FUEL CAP ASSY (obsolete) use part #275306 |
$8.99
|
|
| 41 | 269377 |
269377 - GASKET (obsolete) use part #287058 |
$10.99
|
|
| 42 | 282334 | 282334 - FUEL PIPE ASSY |
$31.99
|
|
| 43 | 282335 | 282335 - FUEL PIPE ASSY |
$34.99
|
|
| 44 | 268065 | 268065 - GROMMET |
$8.99
|
|
| 45 | 282337 | 282337 - RETURN PIPE |
$15.99
|
|
| 46 | 282501 | 282501 - FUEL PIPE |
$2.99
|
|
| 47 | 261590 | 261590 - BREATHER SUB ASSY |
$12.99
|
|
| 48 | 261117 | 261117 - CLIP |
$2.99
|
|
| 52 | 281714 | 281714 - SCREW |
$2.99
|
|
| 53 | 281715 | 281715 - CAP SCREW |
$2.99
|
|
| 54 | 281447 | 281447 - STAND |
$9.99
|
|
| 55 | 285188 | 285188 - LABEL |
$2.99
|
